07536ET3G365JP-W22 WEG AC Motors
Part#:07536ET3G365JP-W22
Manufacturer:WEG
Alt. Part#:7909492019206
Product Lifecycle:Active
Get a quick Quote!

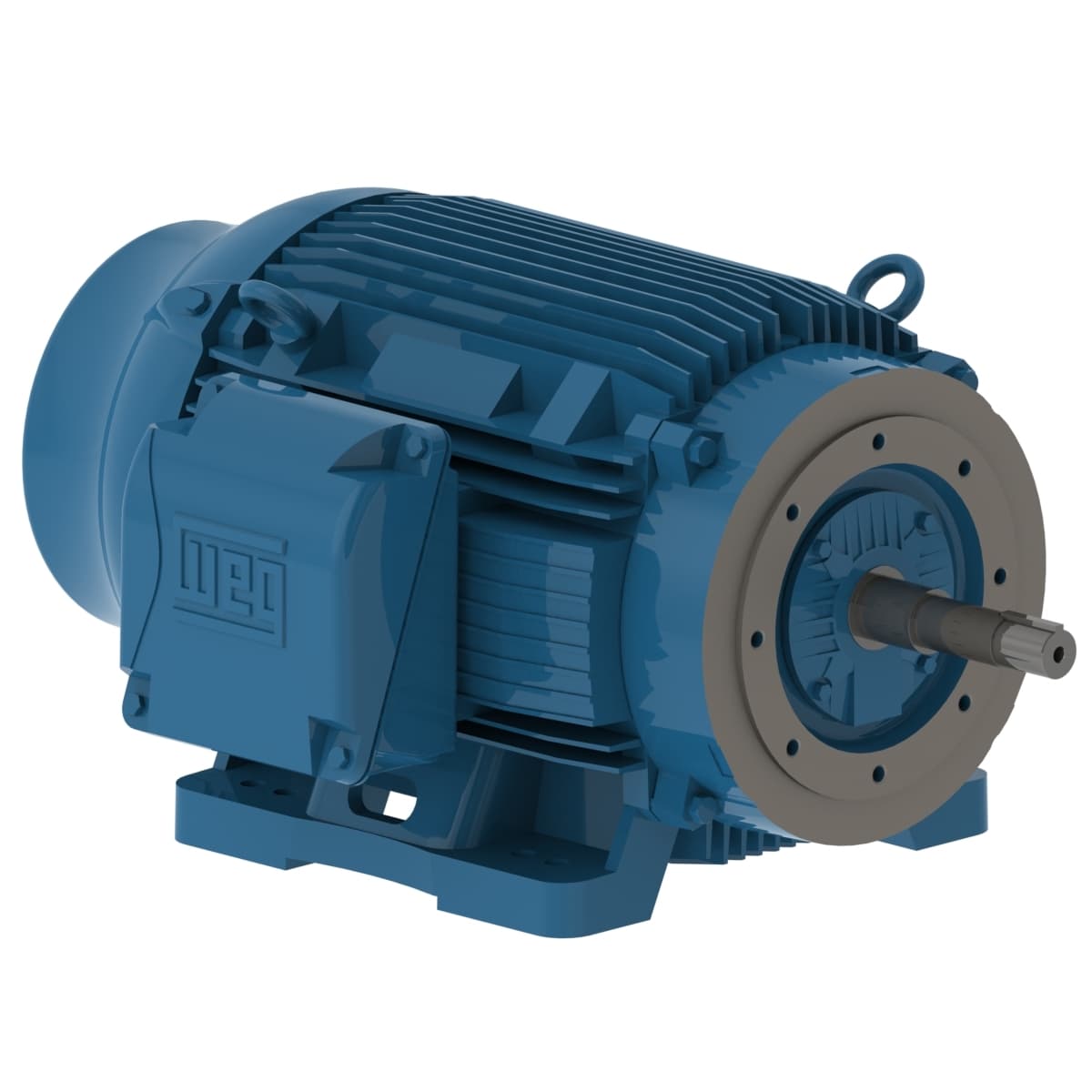

W22 Close Coupled Pump JP NEMA Premium Efficiency 75 HP 2P 364/5JP 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 07536ET3G365JP-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeC
- Rated speed 3555 rpm
- Moment of inertia (J) 11.9 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Rated voltage 460 V
- Design B
- Degree of Protection IP55
- Output rating 75 HP
- Frequency 60 Hz
- No load current 20.0 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Slip 1.25 %
- Temperature rise 80 K
- Approx. weight³ 879 lb
- L. R. Amperes 549 A
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frame 364/5JP
- Insulation Class F
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated current 81.9 A
- Locked rotor time 18s (cold) 10s (hot)
- Mounting F-1
- Number of Poles 2
- Rated torque 111 ft.lb
- Starting Method Direct On Line
- Voltage 460 V
- Output 75 HP (55 kW)
- Breakdown torque 250 %
- Noise level² 79.0 dB(A)
- Terminal box¹ Left position
- LRC 6.7x(Code G)
- Service factor 1.25
- Enclosure IC411 - TEFC
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07536ET3G365JP-W22 Specs
1-year warranty
