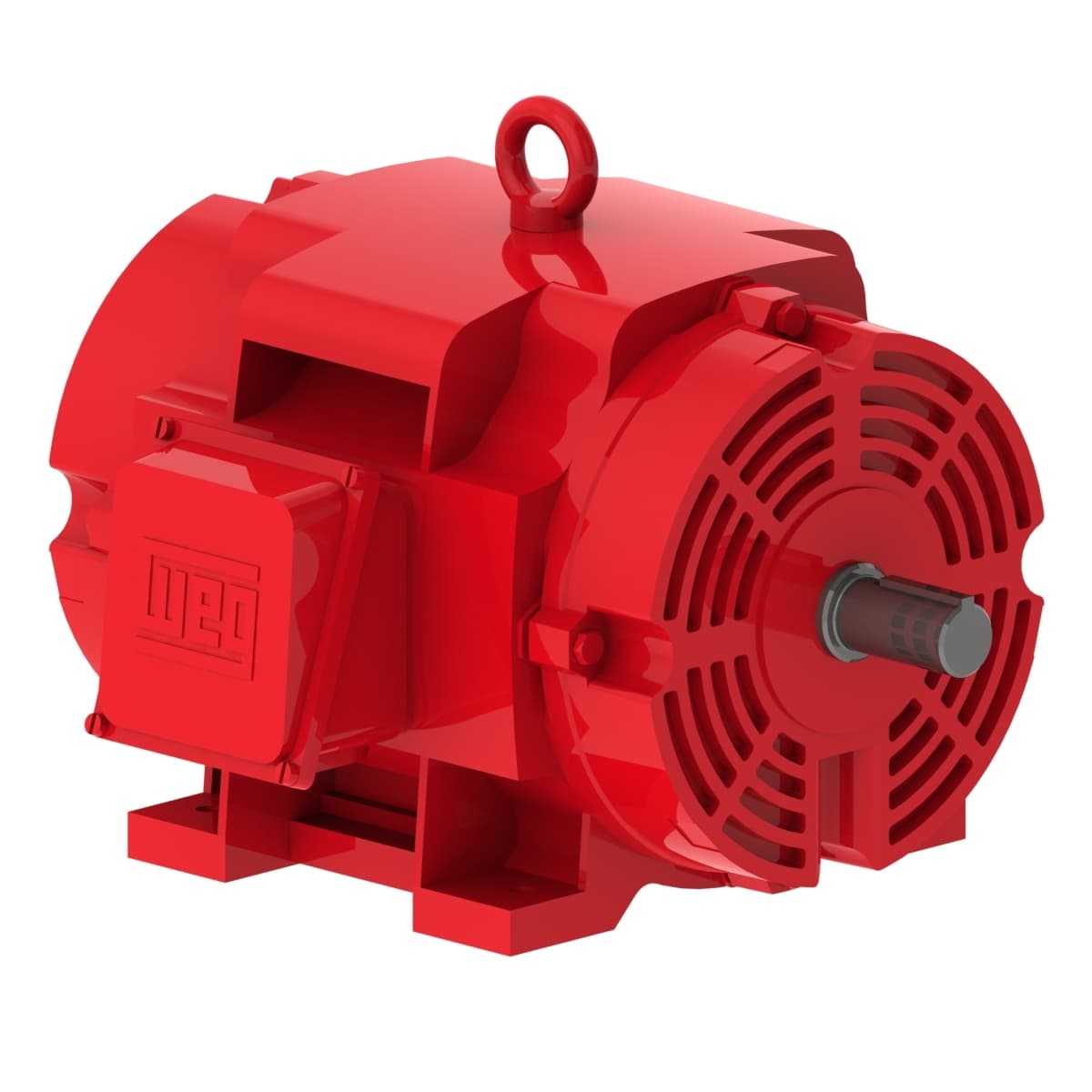

07536OP3EFP364TS WEG AC Motors
Part#:07536OP3EFP364TS
Manufacturer:WEG
Alt. Part#:7891327483095
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 75 HP 2P 364/5TS 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 07536OP3EFP364TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating75 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated speed 3555 rpm
- Rated torque 111 ft.lb
- Enclosure IC01 - ODP
- L. R. Amperes 1062/531 A
- No load current 56.0/28.0 A
- Duty Cycle Cont.(S1)
- Number of poles 2
- Frequency 60 Hz
- Breakdown torque 270 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 169/84.3 A
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Design B
- Degree of Protection IP23
- Output rating 75 HP
- Frame 364/5TS
- Moment of inertia (J) 6.81 sq.ft.lb
- Mounting F-1
- Terminal box¹ Left position
- Output 75 HP (55 kW)
- Locked rotor time 27s (cold) 15s (hot)
- Noise level² 80.0 dB(A)
- Synchronous speed 3600 rpm
- Rated voltage 230/460 V
- Locked rotor torque 180 %
- Temperature rise 80 K
- Voltage 230/460 V
- Slip 1.25 %
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange Without
- LRC 6.3x(Code G)
- Starting Method Direct On Line
- Approx. weight³ 741 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 07536OP3EFP364TS Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
