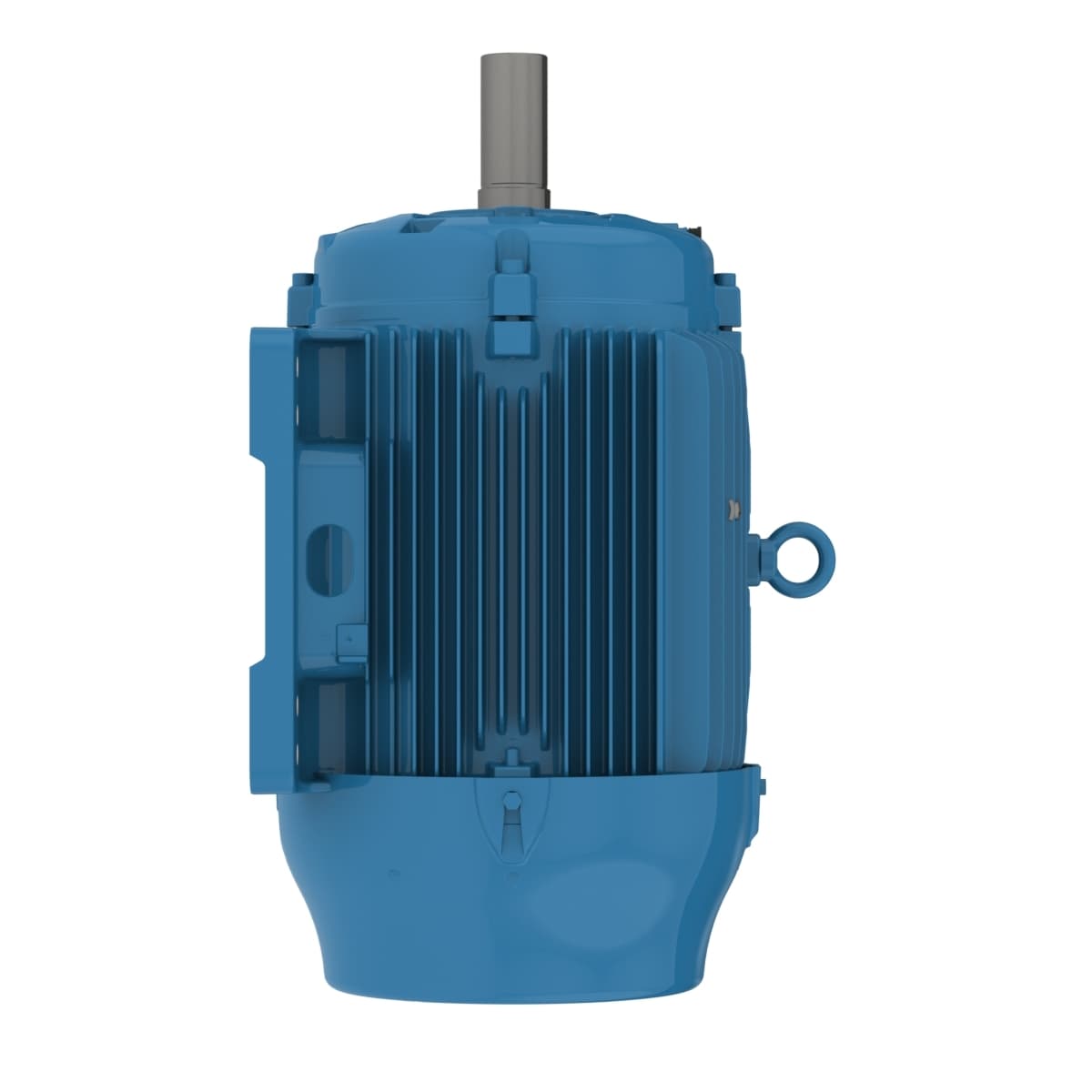

04018ST3QAP324T-W22 WEG AC Motors
Part#:04018ST3QAP324T-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 40 HP 4P 324/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 04018ST3QAP324T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated voltage 460 V
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Output rating 40 HP
- L. R. Amperes 287 A
- Slip 1.39 %
- Frequency 60 Hz
- LRC 6.1x(Code G)
- Rated speed 1775 rpm
- Output 40 HP (30 kW)
- Frame 324/6T
- Breakdown torque 240 %
- Locked rotor torque 229 %
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Voltage 460 V
- Rated torque 118 ft.lb
- Enclosure IC411 - TEFC
- Flange Without
- Design B
- Noise level² 66.0 dB(A)
- Synchronous speed 1800 rpm
- Insulation Class F
- Degree of Protection IP56
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated current 47.1 A
- Moment of inertia (J) 9.16 sq.ft.lb
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- No load current 17.0 A
- Service factor 1.15
- Approx. weight³ 574 lb
- Number of Poles 4
- Mounting W-8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
