04018XT3ER324TC WEG AC Motors
Part#:04018XT3ER324TC
Manufacturer:WEG
Alt. Part#:7909492062882
Product Lifecycle:Active
Get a quick Quote!

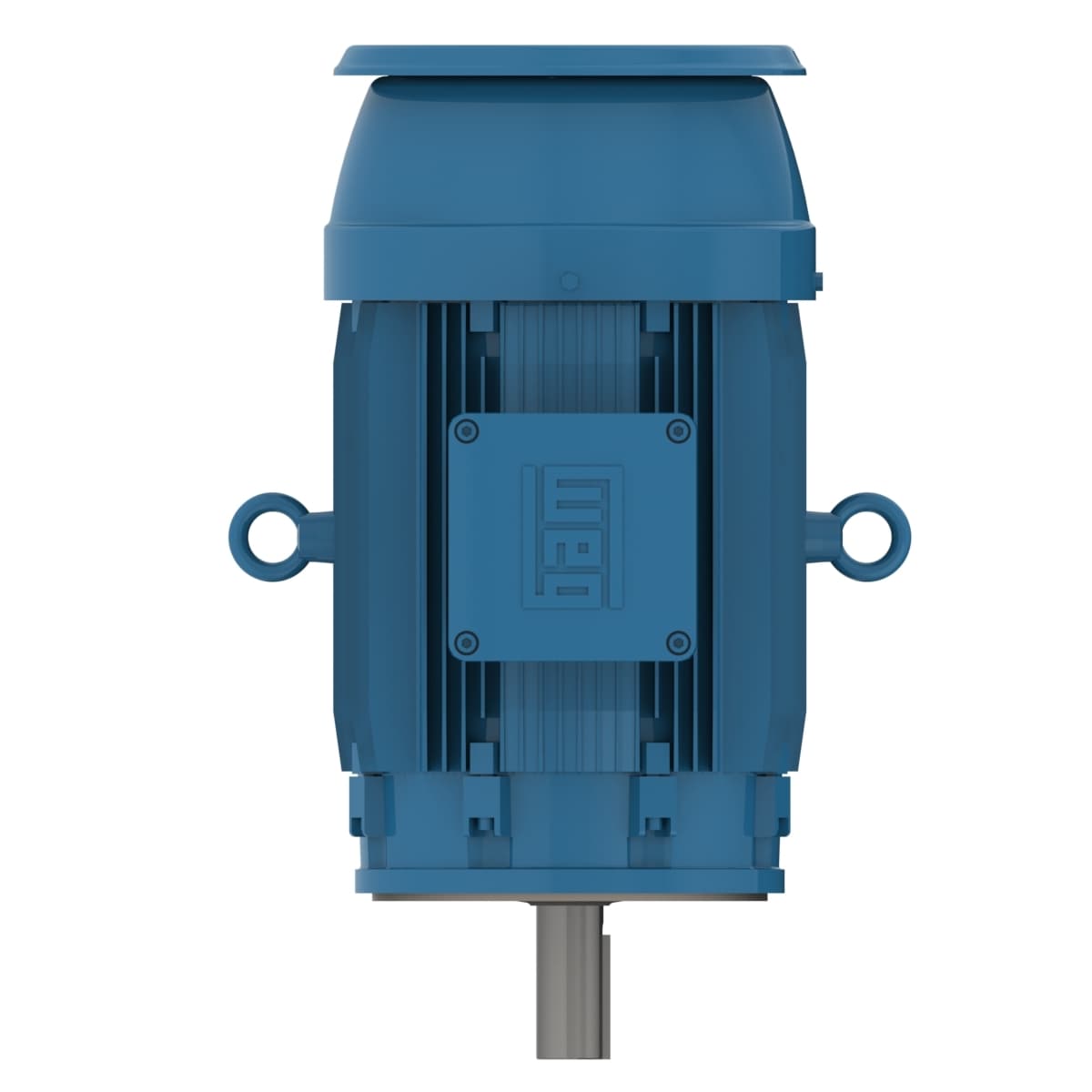

W21 Explosion-proof Motor NEMA Premium Efficiency 40 HP 4P 324TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 04018XT3ER324TC WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.11 %
- Insulation Class F
- Approx. weight³ 654 lb
- Rated voltage 230/460 V
- Breakdown torque 300 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Number of Poles 4
- Design B
- Noise level² 71.0 dB(A)
- Terminal box¹ Left position
- Rated speed 1780 rpm
- Temperature rise 80 K
- Voltage 230/460//380 V
- Output 40 HP (30 kW)
- Moment of inertia (J) 8.17 sq.ft.lb
- Degree of Protection IP55
- Output rating 40 HP
- LRC 7.7x(Code J)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- L. R. Amperes 742/371 A
- Rated torque 118 ft.lb
- Service factor 1.15
- Mounting W-6
- Frame 324TC
- Locked rotor time 34s (cold) 19s (hot)
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Rated current 96.4/48.2 A
- Locked rotor torque 270 %
- Duty Cycle Cont.(S1)
- Number of poles 4
- Frequency 60 Hz
- No load current 46.0/23.0 A
- Enclosure IC411 - TEFC
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04018XT3ER324TC Specs
