04012ES3EOW365T-W22 WEG AC Motors
Part#:04012ES3EOW365T-W22
Manufacturer:WEG
Alt. Part#:7909158758647
Product Lifecycle:Active
Get a quick Quote!

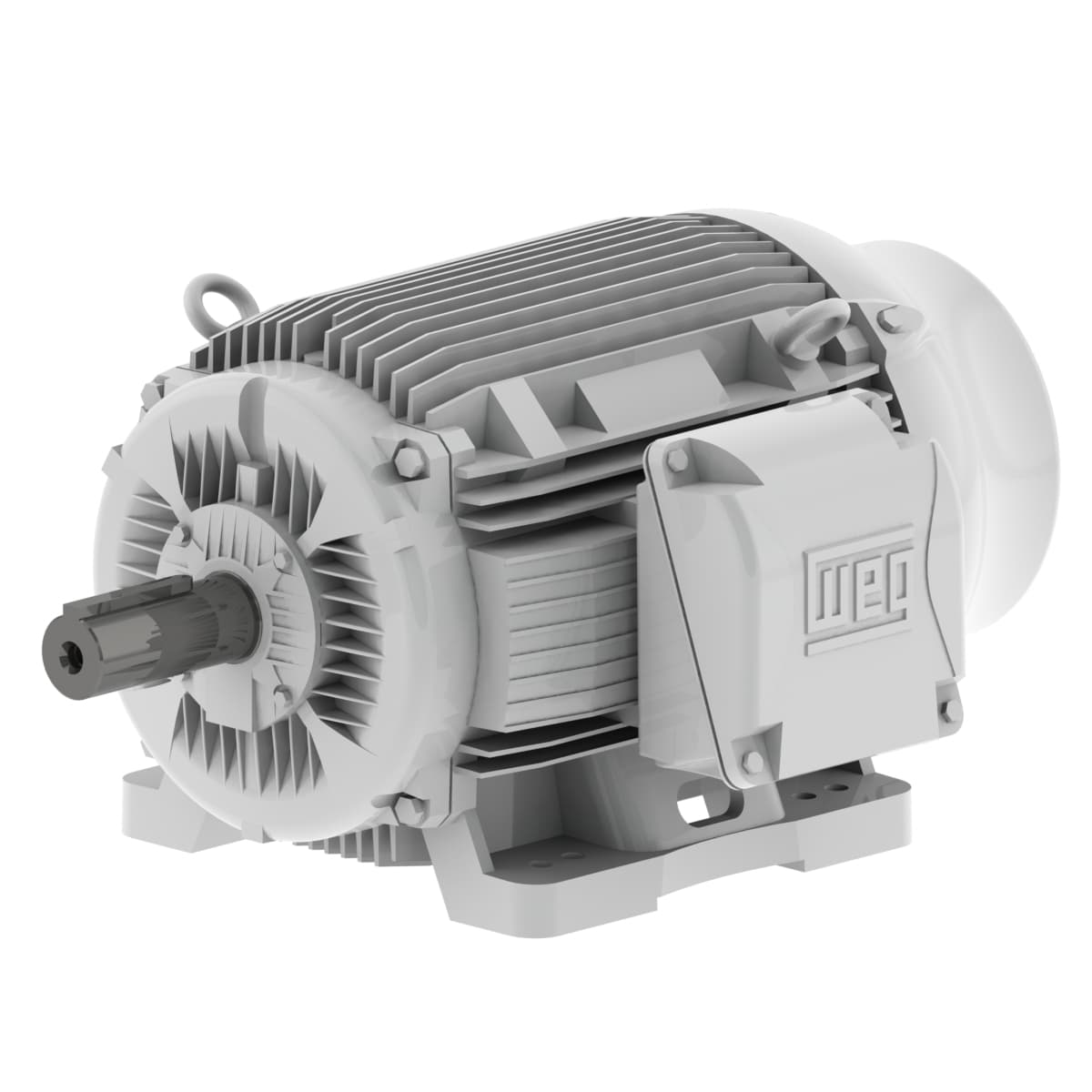

W22 Standard Efficiency 40 HP 6P 364/5T 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 04012ES3EOW365T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed1120 rpm
- Number of Poles6 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- LRC 6.0x(Code G)
- Temperature rise 80 K
- Number of poles 6
- Rated speed 1120 rpm
- Rated torque 188 ft.lb
- Mounting F-2
- Rated current 108-97.8/48.9 A
- Moment of inertia (J) 21.1 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output 40 HP (30 kW)
- Breakdown torque 0 %
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Insulation Class F
- Noise level² 66.0 dB(A)
- Frame 364/5T
- Design D
- Ambient temperature -20°C to +40°C
- L. R. Amperes 649-587/293 A
- Locked rotor time 36s (cold) 20s (hot)
- Number of Poles 6
- No load current 33.2-30.0/15.0 A
- Duty Cycle Cont.(S1)
- Slip 6.67 %
- Enclosure IC411 - TEFC
- Service factor 1.15
- Flange Without
- Rated voltage 208-230/460 V
- Locked rotor torque 280 %
- Starting Method Direct On Line
- Synchronous speed 1200 rpm
- Degree of Protection IP55
- Terminal box¹ Right position
- Voltage 208-230/460 V
- Output rating 40 HP
- Approx. weight³ 894 lb
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04012ES3EOW365T-W22 Specs
1-year warranty
