04018ET3E324TS-W22 WEG AC Motors
Part#:04018ET3E324TS-W22
Manufacturer:WEG
Alt. Part#:7909158055975
Product Lifecycle:Active
Get a quick Quote!

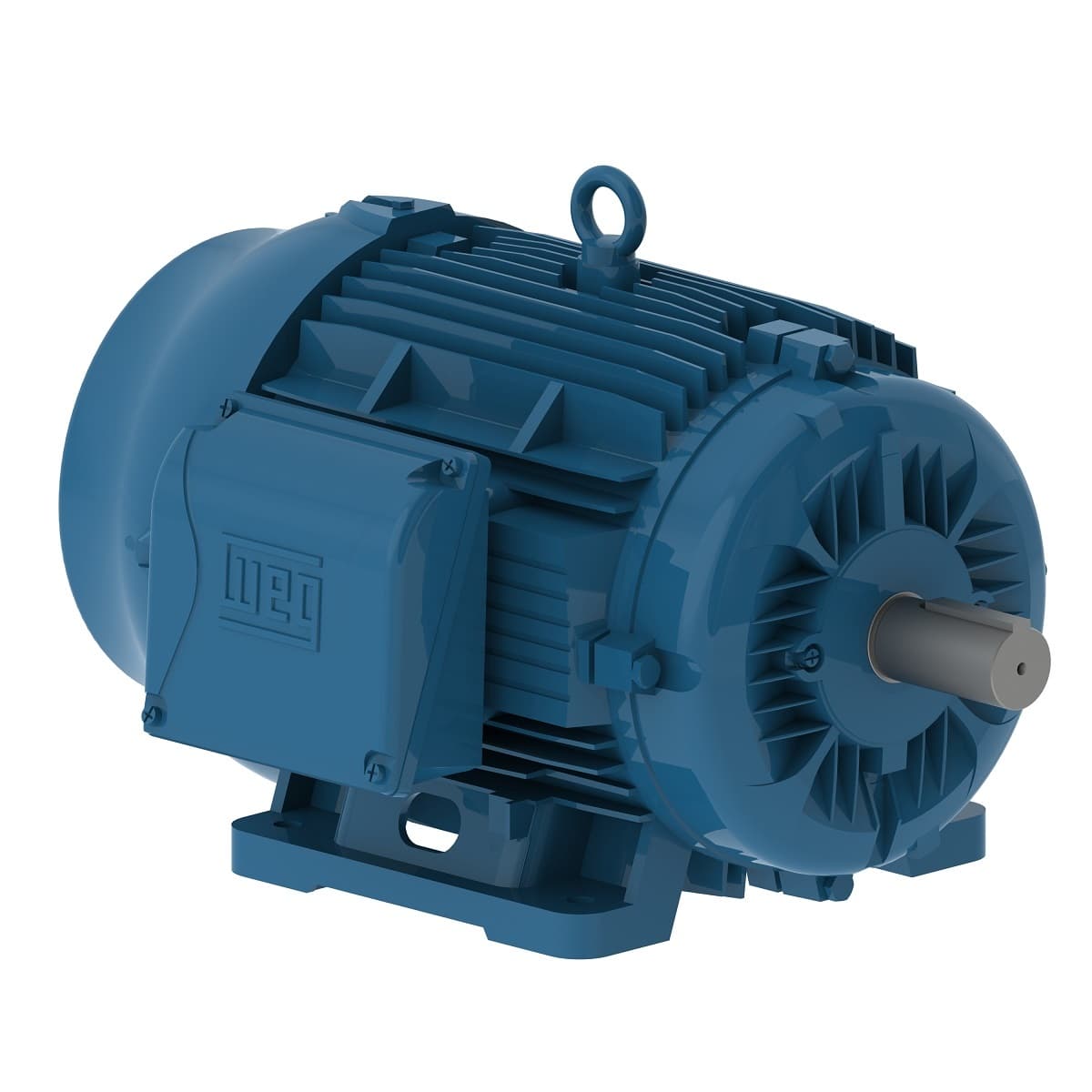

W22 NEMA Premium Efficiency 40 HP 4P 324/6TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 04018ET3E324TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Slip 1.39 %
- Locked rotor torque 229 %
- Ambient temperature -20°C to +40°C
- Number of poles 4
- No load current 34.0/17.0 A
- Degree of Protection IP55
- Approx. weight³ 559 lb
- Rated current 94.2/47.1 A
- Service factor 1.25
- Noise level² 66.0 dB(A)
- Frequency 60 Hz
- LRC 6.1x(Code G)
- Temperature rise 80 K
- Output rating 40 HP
- Rated voltage 230/460 V
- Duty Cycle Cont.(S1)
- Voltage 230/460//380 V
- Output 40 HP (30 kW)
- Moment of inertia (J) 9.16 sq.ft.lb
- Design B
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 575/287 A
- Breakdown torque 240 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated speed 1775 rpm
- Locked rotor time 36s (cold) 20s (hot)
- Altitude 1000 m.a.s.l.
- Flange Without
- Number of Poles 4
- Rated torque 118 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frame 324/6TS
- Insulation Class F
- Mounting F-1
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
