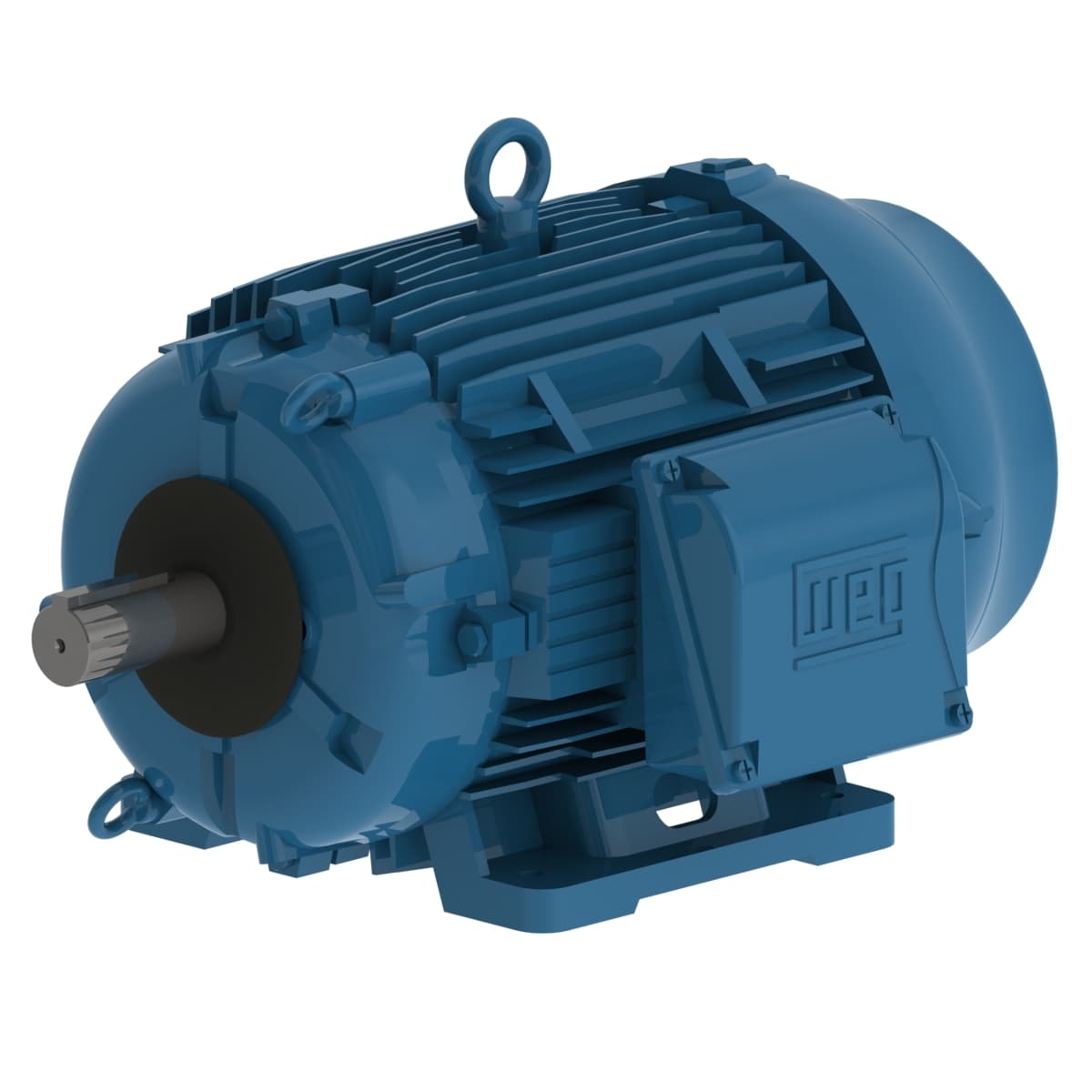

02589EP3QCT324V2-W22 WEG AC Motors
Part#:02589EP3QCT324V2-W22
Manufacturer:WEG
Alt. Part#:7909018683683
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 6.25/25 HP 8/4P 324T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02589EP3QCT324V2-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating6.25/25 HP
- Rated Speed1780 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- L. R. Amperes 204 A
- Duty Cycle Cont.(S1)
- Mounting F-2
- Output rating 6.25/25 HP
- Locked rotor torque 200 %
- Rated voltage 460 V
- Ambient temperature -20°C to +40°C
- Enclosure IC411 - TEFC
- Terminal box¹ Right position
- Rated current 30.9 A
- Temperature rise 80 K
- Voltage 460 V
- Number of Poles 8/4
- Service factor 1.15
- Approx. weight³ 535 lb
- Rated speed 1780 rpm
- No load current 13.0 A
- Altitude 1000 m.a.s.l.
- Slip 1.11 %
- Breakdown torque 260 %
- Degree of Protection IP55
- Output 25 HP (18.5 kW)
- Locked rotor time 27s (cold) 15s (hot)
- Standard NEMA MG-1
- LRC 6.6x(Code H)
- Insulation Class F
- Noise level² 69.0 dB(A)
- Frequency 60 Hz
- Rated torque 73.8 ft.lb
- Starting Method Direct On Line
- Synchronous speed 900/1800 rpm
- Frame 324T
- Moment of inertia (J) 7.85 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Without
- Number of poles 8/4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
