02589EP3PCT286VF1-W2 WEG AC Motors
Part#:02589EP3PCT286VF1-W2
Manufacturer:WEG
Alt. Part#:7909018685939
Product Lifecycle:Active
Get a quick Quote!

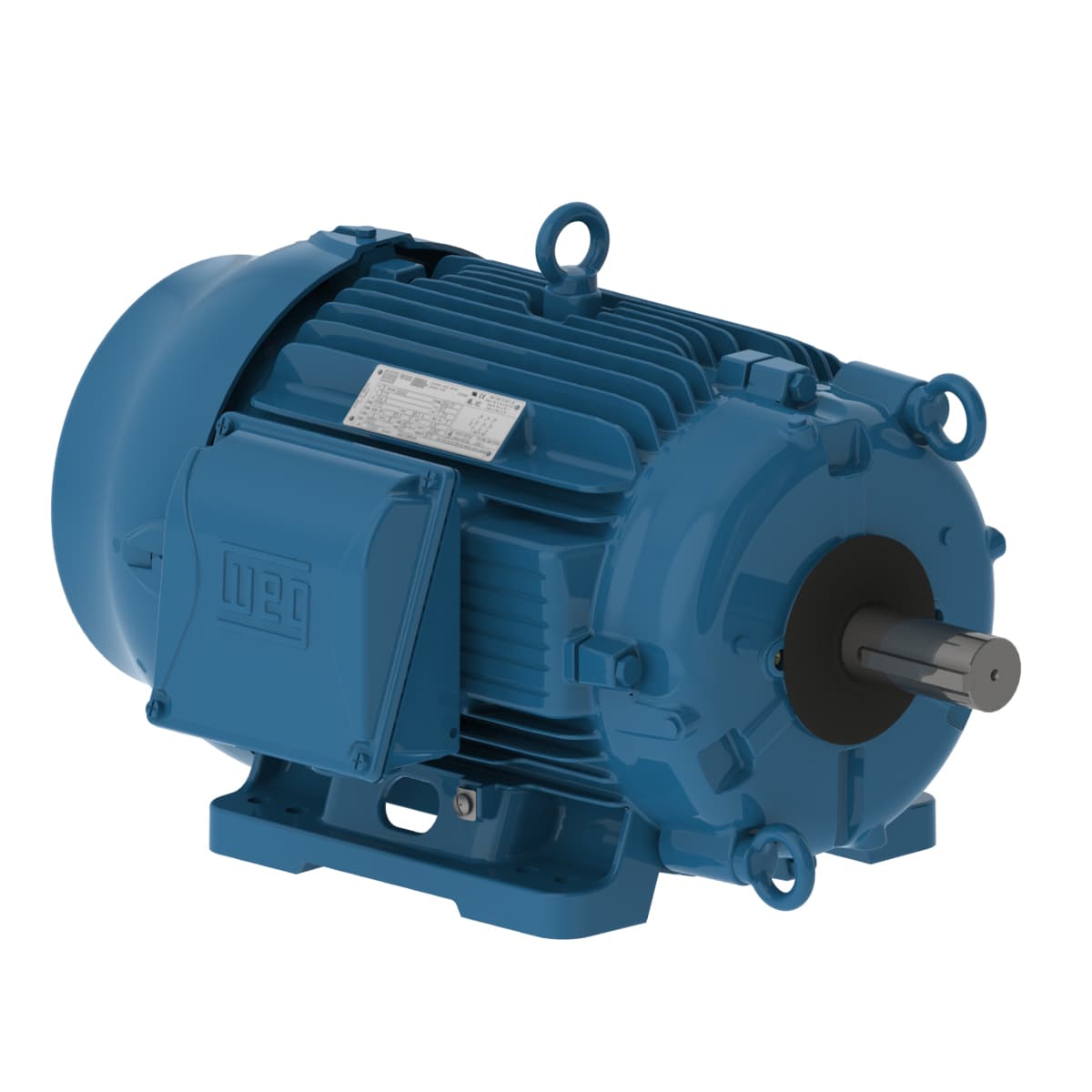

W22 Cooling Tower High Efficiency 6.25/25 HP 8/4P 284/6T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02589EP3PCT286VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating6.25/25 HP
- Rated Speed1780 rpm
- Number of Poles45508 Pole
- Voltage200 V
- Flange TypeWithout
- Number of Poles 8/4
- Degree of Protection IP55
- Frame 284/6T
- Frequency 60 Hz
- No load current 29.4 A
- Voltage 200 V
- Rated speed 1780 rpm
- Insulation Class F
- Enclosure IC411 - TEFC
- Number of poles 8/4
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Slip 1.11 %
- Locked rotor torque 300 %
- Temperature rise 80 K
- Noise level² 64.0 dB(A)
- Synchronous speed 900/1800 rpm
- Rated voltage 200 V
- Locked rotor time 16s (cold) 9s (hot)
- Standard NEMA MG-1
- Approx. weight³ 2.2 lb
- Rated current 69.2 A
- Breakdown torque 310 %
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Output 25 HP (18.5 kW)
- Rated torque 73.8 ft.lb
- LRC 8.5x(Code K)
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 588 A
- Moment of inertia (J) 5.85 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Flange Without
- Output rating 6.25/25 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02589EP3PCT286VF1-W2 Specs
1-year warranty
