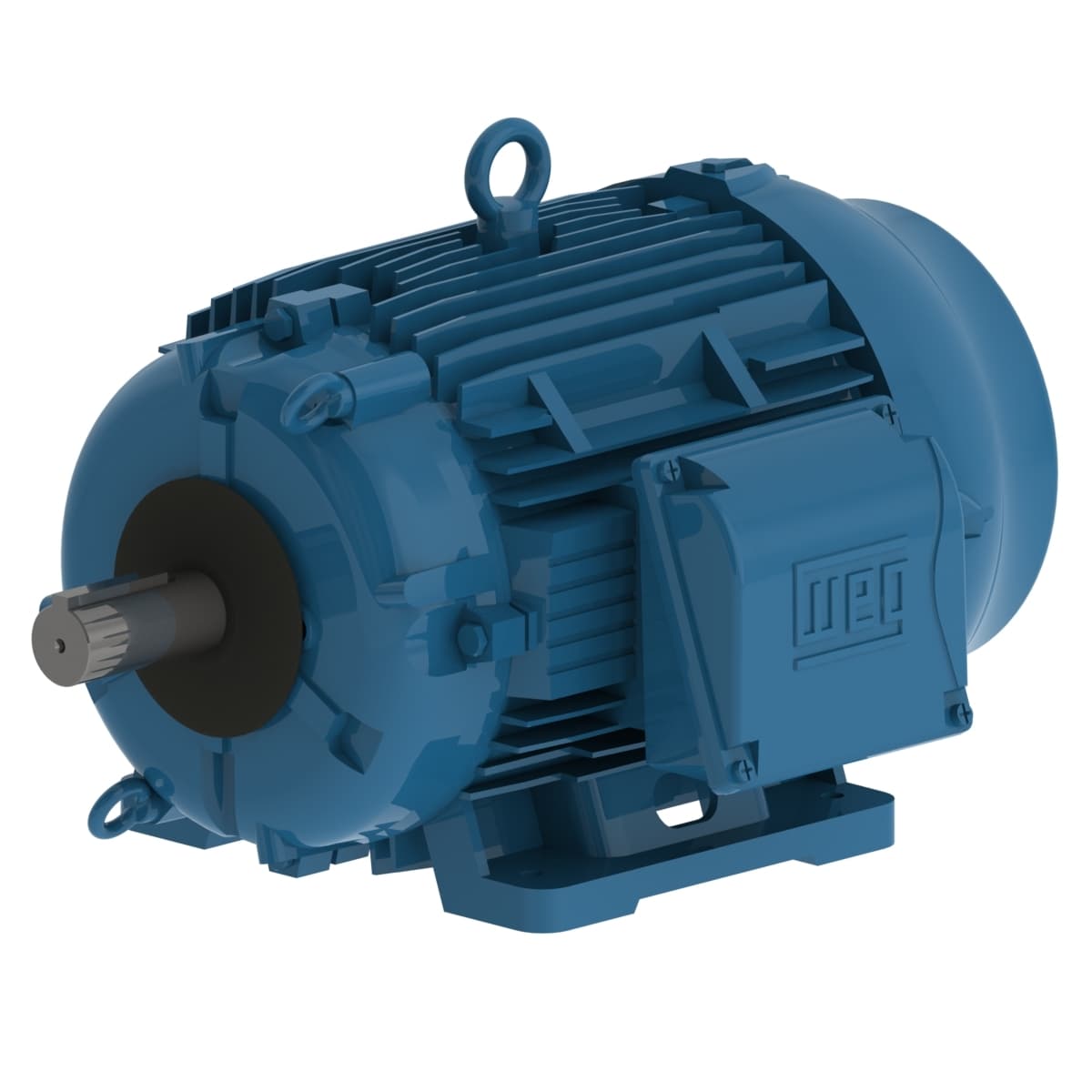

02589EP3PCT324V2-W22 WEG AC Motors
Part#:02589EP3PCT324V2-W22
Manufacturer:WEG
Alt. Part#:7909018684482
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 6.25/25 HP 8/4P 324T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02589EP3PCT324V2-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating6.25/25 HP
- Rated Speed1780 rpm
- Number of Poles45508 Pole
- Voltage200 V
- Flange TypeWithout
- Frame 324T
- Starting Method Direct On Line
- Flange Without
- L. R. Amperes 469 A
- Temperature rise 80 K
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated current 71.1 A
- Insulation Class F
- Approx. weight³ 2.2 lb
- LRC 6.6x(Code H)
- Service factor 1.15
- Noise level² 69.0 dB(A)
- Rated speed 1780 rpm
- Breakdown torque 260 %
- Mounting F-2
- Rated voltage 200 V
- Duty Cycle Cont.(S1)
- Terminal box¹ Right position
- Frequency 60 Hz
- Locked rotor time 27s (cold) 15s (hot)
- Enclosure IC411 - TEFC
- Voltage 200 V
- Output 25 HP (18.5 kW)
- Number of Poles 8/4
- Altitude 1000 m.a.s.l.
- Slip 1.11 %
- Synchronous speed 900/1800 rpm
- No load current 29.9 A
- Locked rotor torque 200 %
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 7.85 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Rated torque 73.8 ft.lb
- Output rating 6.25/25 HP
- Number of poles 8/4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
