01589EP3QCT284V2-W22 WEG AC Motors
Part#:01589EP3QCT284V2-W22
Manufacturer:WEG
Alt. Part#:7909018679112
Product Lifecycle:Active
Get a quick Quote!

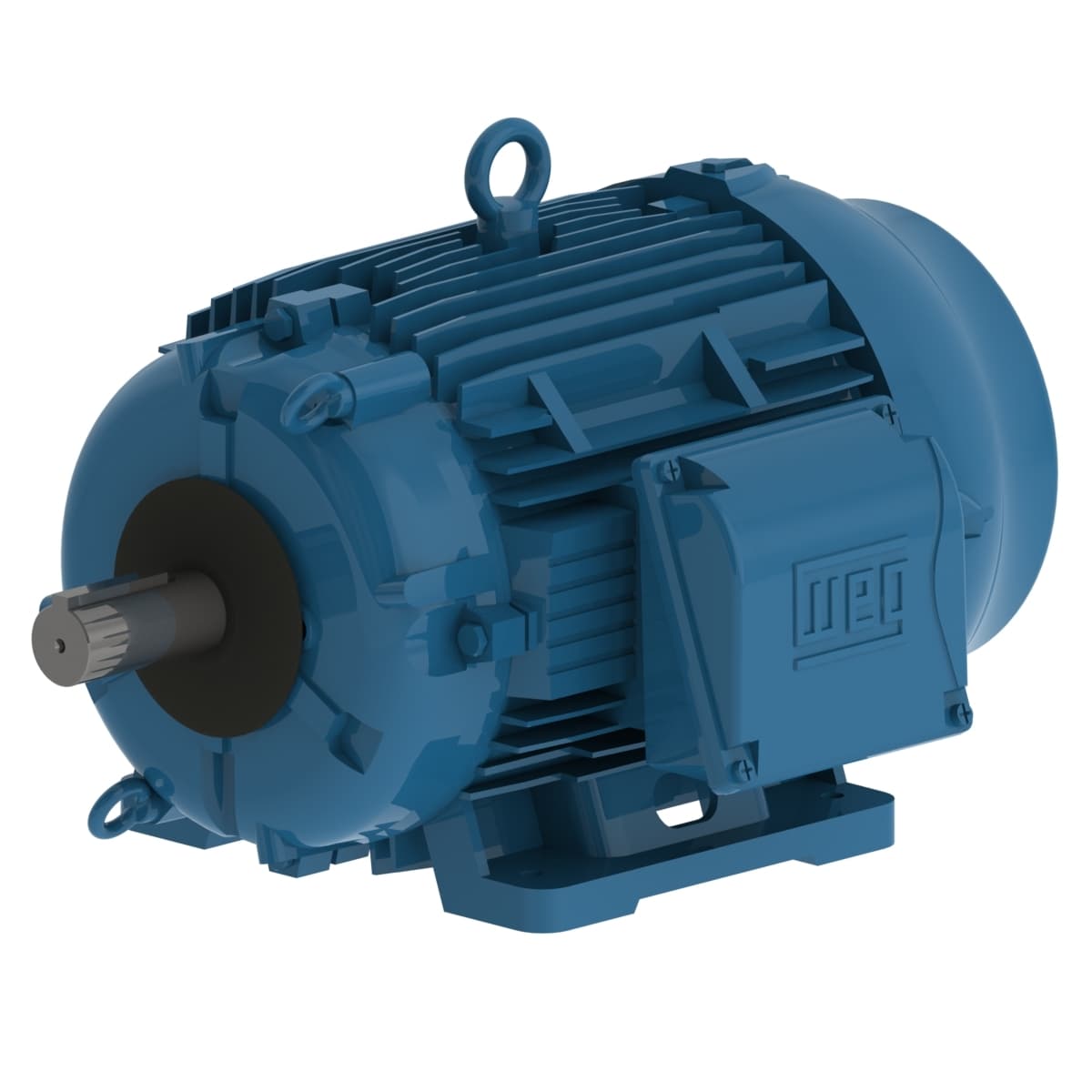

W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 284T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01589EP3QCT284V2-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3.75/15 HP
- Rated Speed1781 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 8/4
- Insulation Class F
- Noise level² 64.0 dB(A)
- Flange Without
- Rated speed 1781 rpm
- Locked rotor torque 210 %
- Degree of Protection IP55
- Terminal box¹ Right position
- Frequency 60 Hz
- Starting Method Direct On Line
- Number of poles 8/4
- Frame 284T
- Moment of inertia (J) 4.68 sq.ft.lb
- Mounting F-2
- No load current 7.75 A
- Rated voltage 460 V
- Duty Cycle Cont.(S1)
- L. R. Amperes 146 A
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ Both (CW and CCW)
- Output 15 HP (11 kW)
- Breakdown torque 260 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 900/1800 rpm
- Slip 1.06 %
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Rated current 18.2 A
- Service factor 1.15
- Rated torque 44.2 ft.lb
- Output rating 3.75/15 HP
- LRC 8.0x(Code J)
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Approx. weight³ 2.2 lb
- Voltage 460 V
