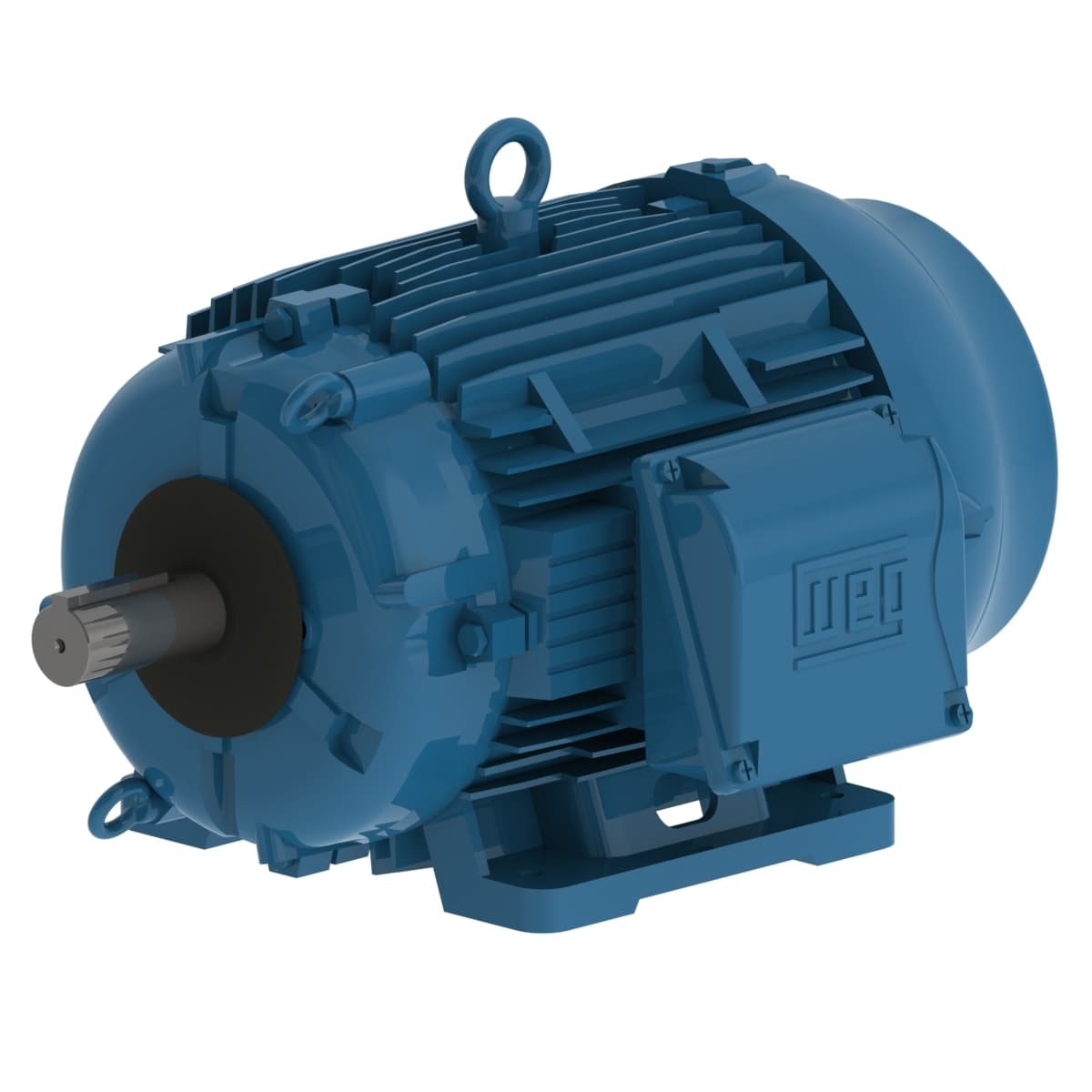

01589EP3QCT254V-W22 WEG AC Motors
Part#:01589EP3QCT254V-W22
Manufacturer:WEG
Alt. Part#:7909018679099
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 254T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01589EP3QCT254V-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3.75/15 HP
- Rated Speed1770 rpm
- Number of Poles45508 Pole
- Voltage460 V
- Flange TypeWithout
- Output 15 HP (11 kW)
- Locked rotor torque 250 %
- Starting Method Direct On Line
- Frequency 60 Hz
- Moment of inertia (J) 2.62 sq.ft.lb
- Synchronous speed 900/1800 rpm
- Rated speed 1770 rpm
- Locked rotor time 25s (cold) 14s (hot)
- Ambient temperature -20°C to +40°C
- Rated voltage 460 V
- Breakdown torque 270 %
- Noise level² 64.0 dB(A)
- Frame 254T
- Duty Cycle Cont.(S1)
- Mounting F-2
- Number of Poles 8/4
- Insulation Class F
- Degree of Protection IP55
- Number of poles 8/4
- L. R. Amperes 127 A
- Rated torque 44.5 ft.lb
- Enclosure IC411 - TEFC
- LRC 6.7x(Code H)
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated current 19.0 A
- No load current 8.20 A
- Altitude 1000 m.a.s.l.
- Output rating 3.75/15 HP
- Slip 1.67 %
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Flange Without
- Voltage 460 V
- Approx. weight³ 289 lb
- Terminal box¹ Right position
