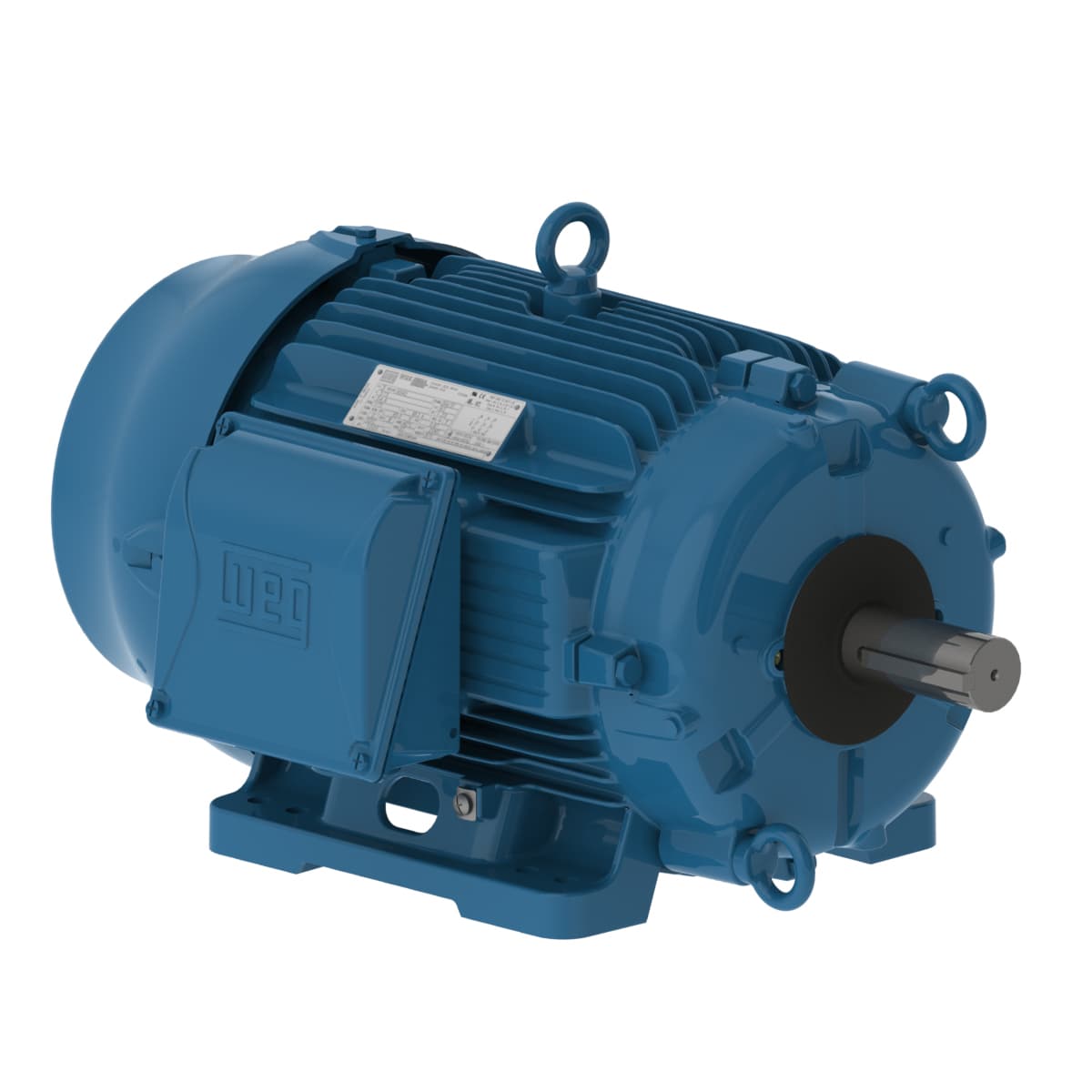

01589EP3PCT254VF1-W2 WEG AC Motors
Part#:01589EP3PCT254VF1-W2
Manufacturer:WEG
Alt. Part#:7909018680125
Product Lifecycle:Active
Get a quick Quote!
W22 Cooling Tower High Efficiency 3.75/15 HP 8/4P 254T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 01589EP3PCT254VF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3.75/15 HP
- Rated Speed1770 rpm
- Number of Poles45508 Pole
- Voltage200 V
- Flange TypeWithout
- Moment of inertia (J) 2.62 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 900/1800 rpm
- LRC 6.7x(Code H)
- Frame 254T
- No load current 18.9 A
- Ambient temperature -20°C to +40°C
- Number of poles 8/4
- Rated voltage 200 V
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Output rating 3.75/15 HP
- Slip 1.67 %
- Locked rotor torque 250 %
- Degree of Protection IP55
- Voltage 200 V
- Number of Poles 8/4
- Breakdown torque 270 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- L. R. Amperes 293 A
- Service factor 1.15
- Starting Method Direct On Line
- Flange Without
- Rated current 43.7 A
- Locked rotor time 25s (cold) 14s (hot)
- Mounting F-1
- Rated speed 1770 rpm
- Rated torque 44.5 ft.lb
- Noise level² 64.0 dB(A)
- Frequency 60 Hz
- Insulation Class F
- Standard NEMA MG-1
- Output 15 HP (11 kW)
- Duty Cycle Cont.(S1)
- Approx. weight³ 289 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01589EP3PCT254VF1-W2 Specs
