00718OT3P213TF2 WEG AC Motors
Part#:00718OT3P213TF2
Manufacturer:WEG
Alt. Part#:7890208505871
Product Lifecycle:Active
Get a quick Quote!

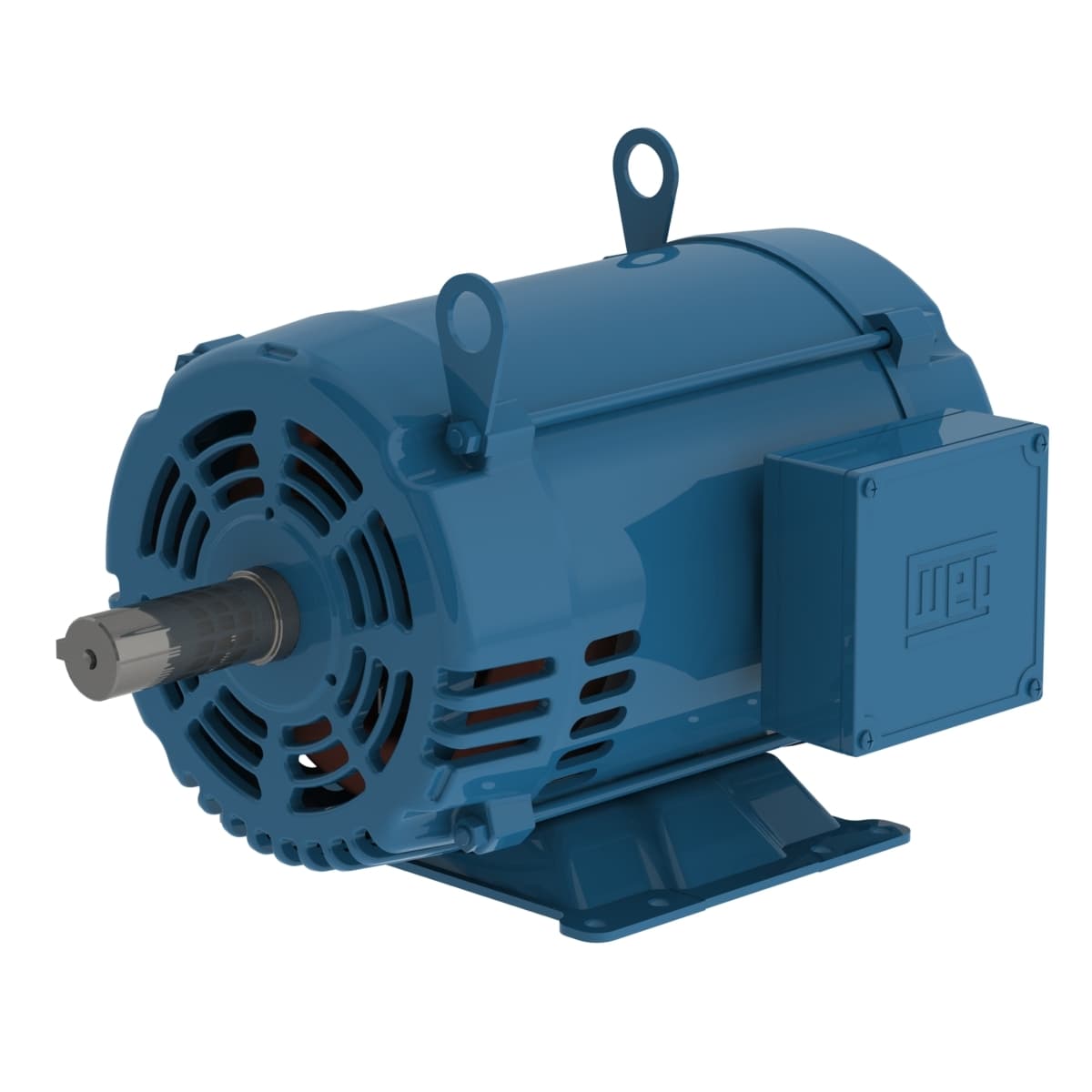

General NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 200 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00718OT3P213TF2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage200 V
- Flange TypeWithout
- Frame 213/5T
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Output rating 7.5 HP
- Rated speed 1765 rpm
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- Frequency 60 Hz
- Rated torque 22.3 ft.lb
- Rotation¹ Both (CW and CCW)
- LRC 7.5x(Code J)
- Temperature rise 80 K
- Approx. weight³ 102 lb
- Rated voltage 200 V
- Locked rotor torque 200 %
- Mounting F-2
- Number of Poles 4
- Design B
- Enclosure IC01 - ODP
- Number of poles 4
- L. R. Amperes 156 A
- Moment of inertia (J) 0.9198 sq.ft.lb
- Noise level² 58.0 dB(A)
- Flange Without
- Rated current 20.8 A
- No load current 8.74 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output 7.5 HP (5.5 kW)
- Locked rotor time 21s (cold) 12s (hot)
- Degree of Protection IP21
- Synchronous speed 1800 rpm
- Slip 1.94 %
- Breakdown torque 270 %
- Duty Cycle Cont.(S1)
- Voltage 200 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718OT3P213TF2 Specs
