00718OP3E213JM-S WEG AC Motors
Part#:00718OP3E213JM-S
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

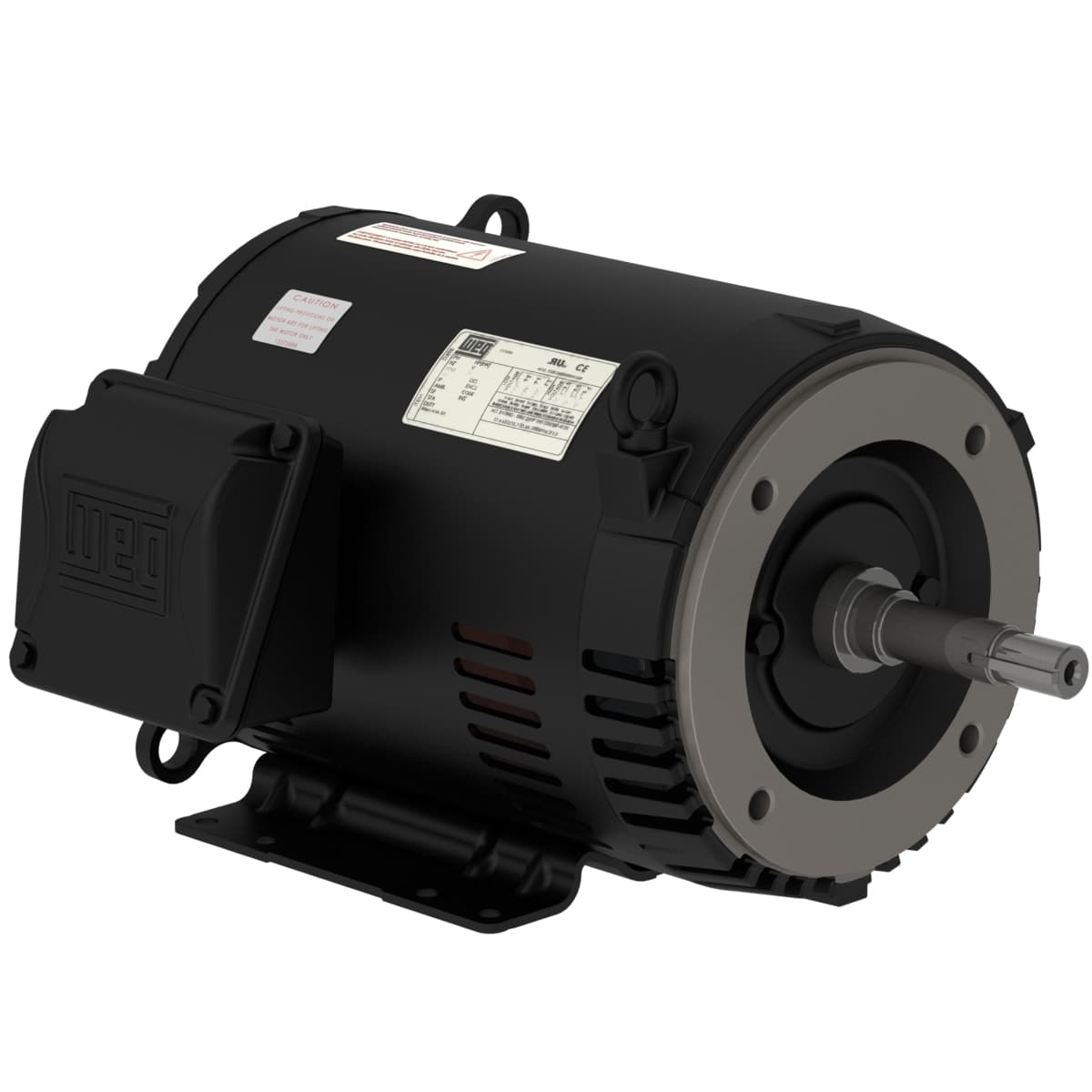

Rolled Steel JM Pump High Efficiency 7.5 HP 4P 213/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00718OP3E213JM-S WEG price in the box on the right side or send a quick quote.
Product Details
- LRC 6.5x(Code H)
- Temperature rise 80 K
- Standard NEMA MG-1
- Frame 213/5JM
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 121/60.4 A
- No load current 8.64/4.32 A
- Enclosure IC01 - ODP
- Number of poles 4
- Number of Poles 4
- Service factor 1.15
- Noise level² 59.0 dB(A)
- Output 7.5 HP (5.5 kW)
- Moment of inertia (J) 0.8040 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated current 18.6/9.29 A
- Breakdown torque 260 %
- Starting Method Direct On Line
- Output rating 7.5 HP
- Frequency 60 Hz
- Design B
- Approx. weight³ 110 lb
- Rated voltage 230/460 V
- Locked rotor time 18s (cold) 10s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Rated speed 1760 rpm
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Voltage 230/460//190-220/380-415 V
- Slip 2.22 %
- Rated torque 22.4 ft.lb
- Mounting F-1
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718OP3E213JM-S Specs
