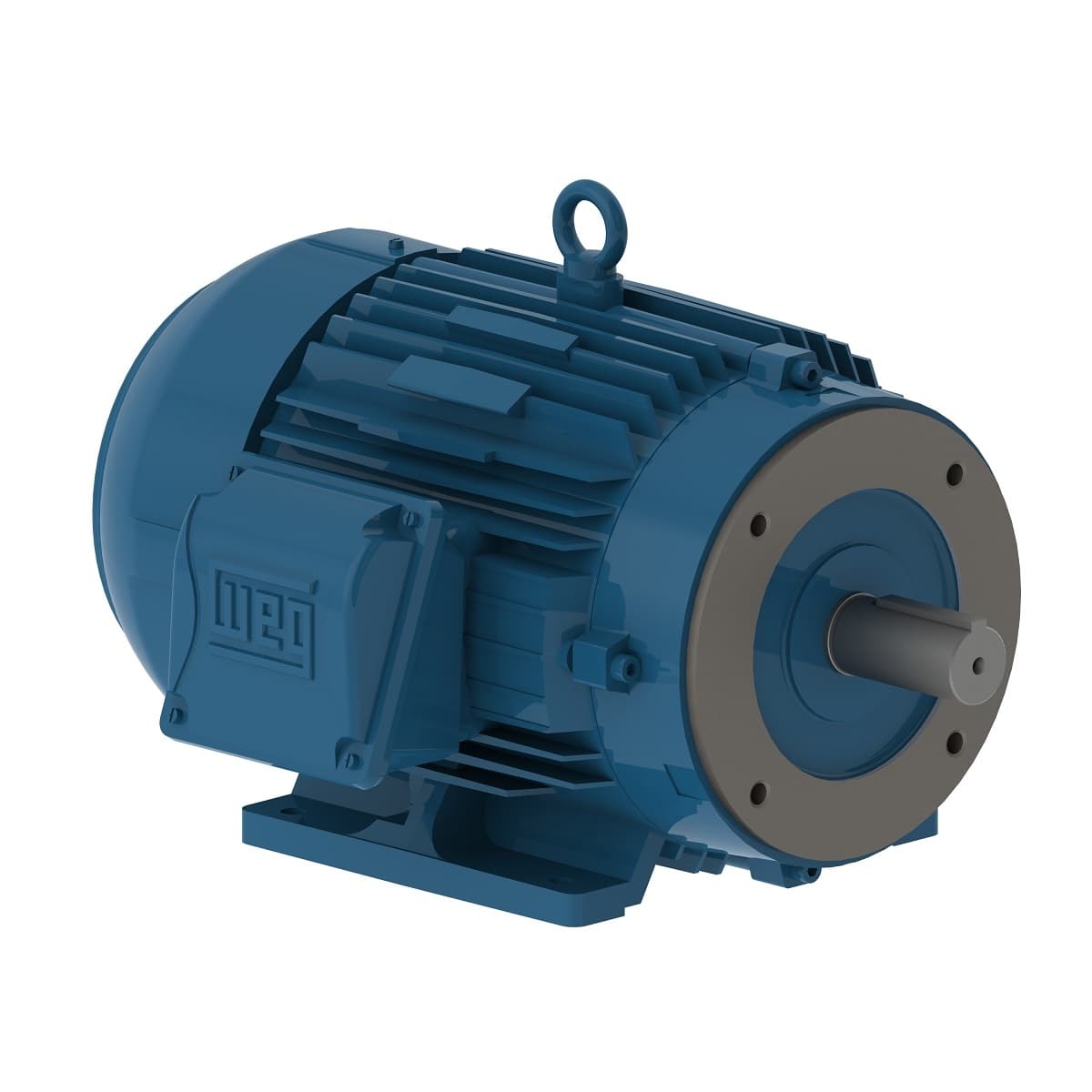

00718ET3V213TC-W22 WEG AC Motors
Part#:00718ET3V213TC-W22
Manufacturer:WEG
Alt. Part#:7909158373550
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 7.5 HP 4P 213/5TC 3Ph 200/400 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00718ET3V213TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1765 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- Output 7.5 HP (5.5 kW)
- Rated torque 22.3 ft.lb
- Temperature rise 80 K
- Approx. weight³ 171 lb
- Rated current 21.1/10.6 A
- Locked rotor time 36s (cold) 20s (hot)
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- L. R. Amperes 150/75.0 A
- No load current 9.66/4.83 A
- Degree of Protection IP55
- Rated voltage 200/400 V
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Output rating 7.5 HP
- Slip 1.94 %
- Service factor 1.25
- Starting Method Direct On Line
- Synchronous speed 1800 rpm
- Frame 213/5TC
- Design B
- Noise level² 58.0 dB(A)
- Number of Poles 4
- Breakdown torque 310 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Frequency 60 Hz
- Locked rotor torque 220 %
- Voltage 200/400 V
- Rated speed 1765 rpm
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- LRC 7.1x(Code H)
- Moment of inertia (J) 1.34 sq.ft.lb
- Mounting F-1
- Flange C
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718ET3V213TC-W22 Specs
1-year warranty
