00712ET3PCT254TF1-W2 WEG AC Motors
Part#:00712ET3PCT254TF1-W2
Manufacturer:WEG
Alt. Part#:7909322779119
Product Lifecycle:Active
Get a quick Quote!

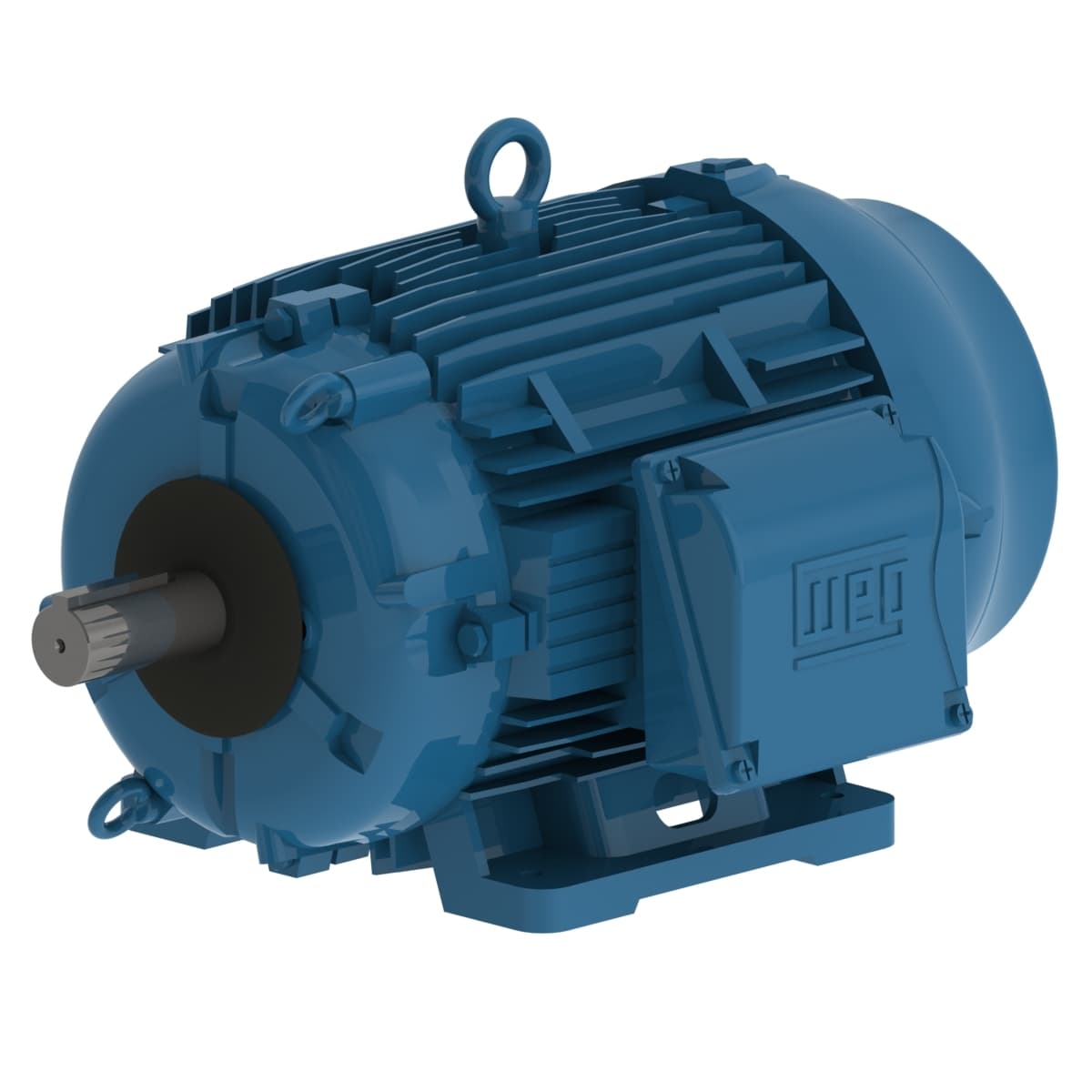

W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 6P 254T 3Ph 200 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00712ET3PCT254TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1178 rpm
- Number of Poles6 Pole
- Voltage200 V
- Flange TypeWithout
- Slip 1.83 %
- Insulation Class F
- Noise level² 59.0 dB(A)
- Number of Poles 6
- LRC 6.8x(Code H)
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Output 7.5 HP (5.5 kW)
- No load current 10.4 A
- Rated speed 1178 rpm
- Design B
- Frame 254T
- Breakdown torque 300 %
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.25
- Enclosure IC411 - TEFC
- Flange Without
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- L. R. Amperes 148 A
- Voltage 200 V
- Degree of Protection IP55
- Output rating 7.5 HP
- Locked rotor torque 250 %
- Rated torque 33.4 ft.lb
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Rated current 21.8 A
- Approx. weight³ 262 lb
- Locked rotor time 54s (cold) 30s (hot)
- Synchronous speed 1200 rpm
- Duty Cycle Cont.(S1)
- Rated voltage 200 V
- Moment of inertia (J) 3.92 sq.ft.lb
- Mounting F-1
