00436OS1DCDG56HZ WEG AC Motors
Part#:00436OS1DCDG56HZ
Manufacturer:WEG
Alt. Part#:7890355545928
Product Lifecycle:Active
Get a quick Quote!

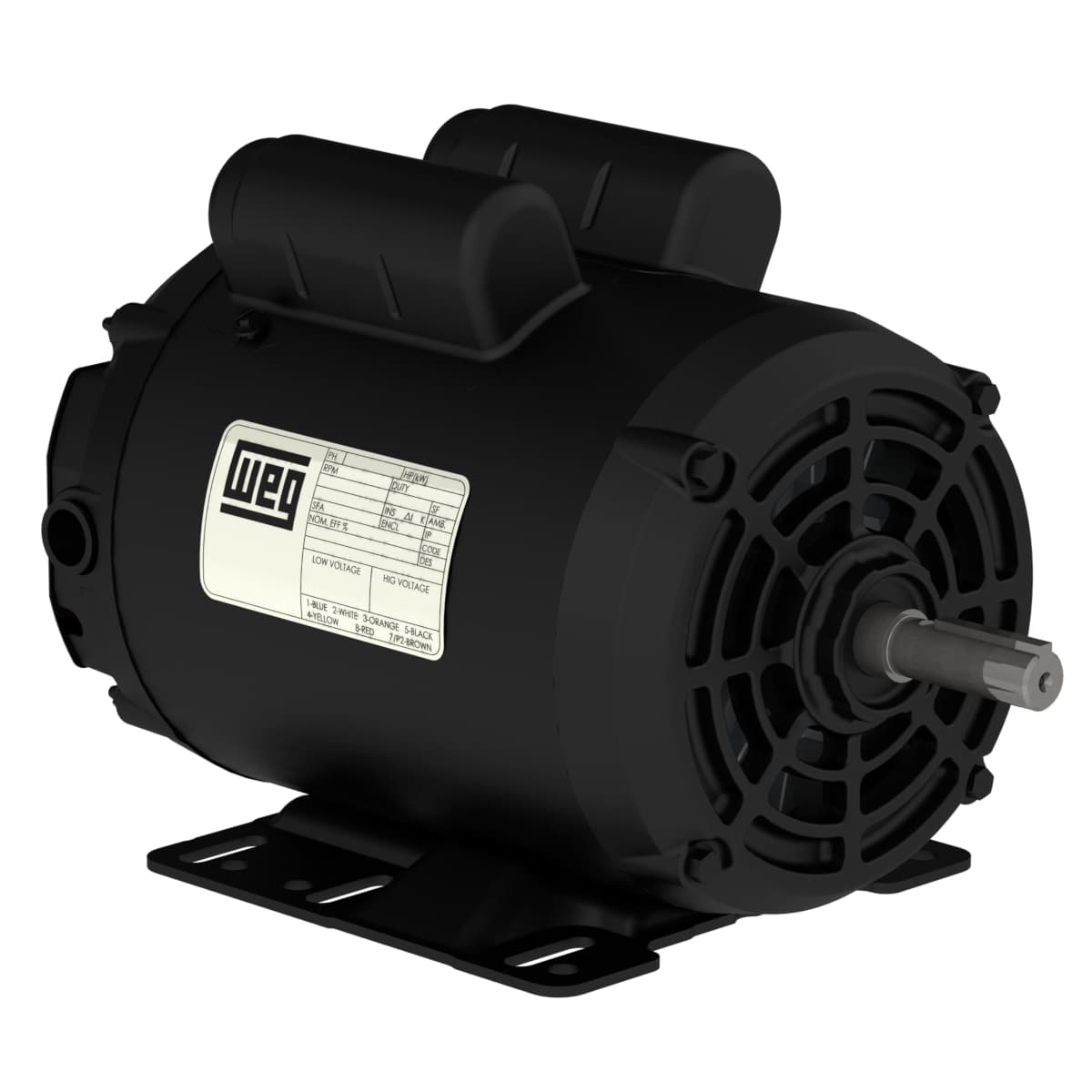

Compressor Duty 4 HP 2P G56HZ 1Ph 230 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00436OS1DCDG56HZ WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating4 HP
- Rated Speed3480 rpm
- Number of Poles2 Pole
- Voltage230 V
- Flange TypeWithout
- Rated current 16.8 A
- LRC 6.7x(Code H)
- Rotation¹ CCW
- Output rating 4 HP
- Breakdown torque 250 %
- Degree of Protection IP21
- Ambient temperature -20°C to +40°C
- Number of Poles 2
- Insulation Class F
- Frequency 60 Hz
- Locked rotor torque 200 %
- Approx. weight³ 45.1 lb
- Terminal box¹ Without Terminal Box
- Frame G56HZ
- Rated torque 6.04 ft.lb
- Mounting F-1
- Output 4 HP (3 kW)
- Locked rotor time 9s (cold) 5s (hot)
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated speed 3480 rpm
- Temperature rise 105 K
- Voltage 230 V
- L. R. Amperes 113 A
- No load current 5.50 A
- Service factor 1.00
- Enclosure IC01 - ODP
- Rated voltage 230 V
- Starting Method Direct On Line
- Standard NEMA MG-1
- Synchronous speed 3600 rpm
- Slip 3.33 %
- Altitude 1000 m.a.s.l.
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
