00436ET3EAL112M-W22 WEG AC Motors
Part#:00436ET3EAL112M-W22
Manufacturer:WEG
Alt. Part#:7909323281710
Product Lifecycle:Active
Get a quick Quote!

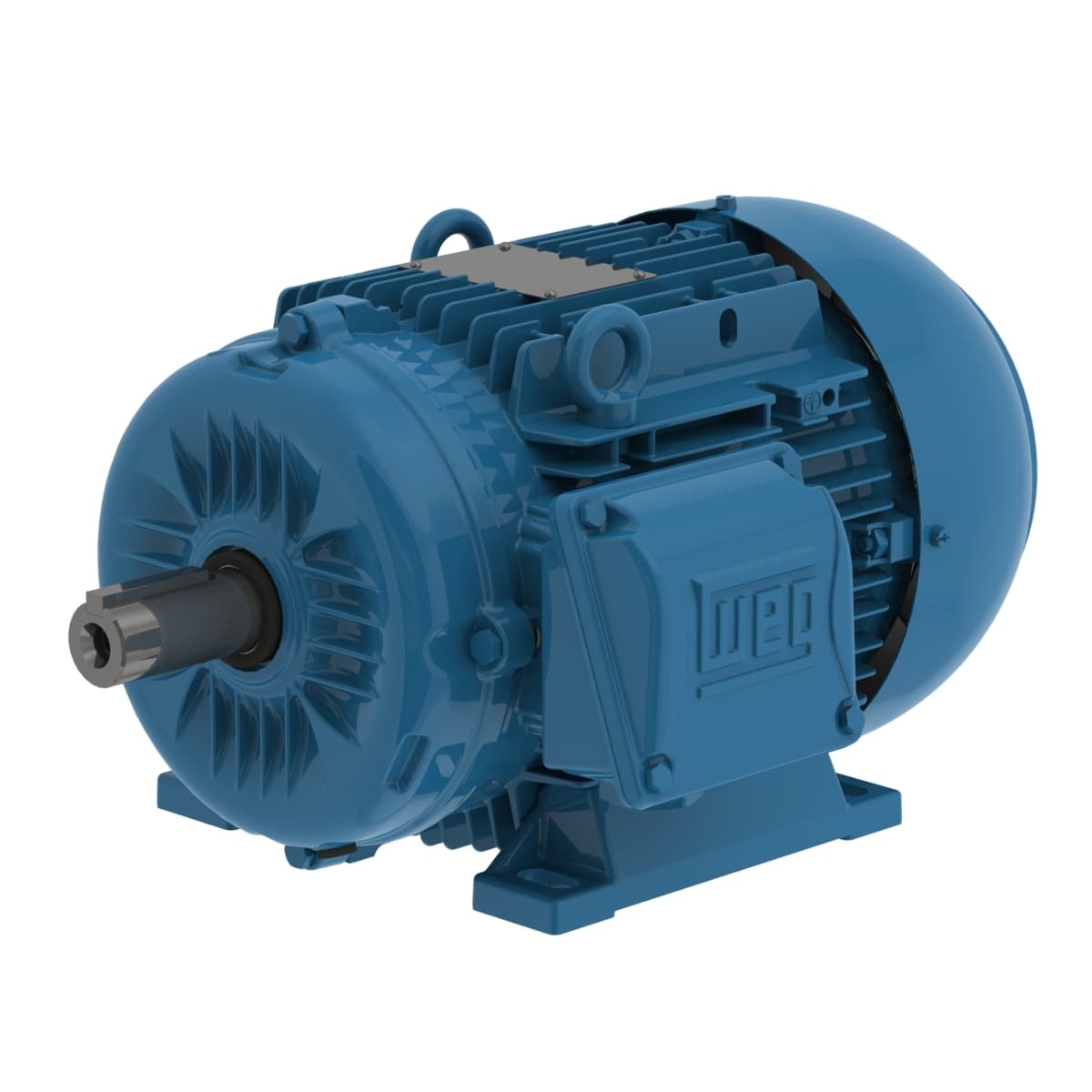

Multimounting IE3 5.5 HP 2P 112M 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 00436ET3EAL112M-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5.5 HP
- Rated Speed2890 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Synchronous speed 3600 rpm
- Rated current 7.83 A
- Duty Cycle S1
- Noise level² 64.0 dB(A)
- Output 5.5 HP (4 kW)
- L. R. Amperes 60.3 A
- Breakdown torque 310 %
- Insulation Class F
- Degree of Protection IP55
- Number of poles 2
- Rated voltage 380 V
- Design N
- Rotation¹ Both (CW and CCW)
- Voltage 230/460//380-415 V
- Rated speed 2890 rpm
- Locked rotor time 25s (cold) 14s (hot)
- Mounting B3L(E)
- Flange Without
- Slip 3.67 %
- Rated torque 10.0 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- Frequency 50 Hz
- Moment of inertia (J) 0.1898 sq.ft.lb
- Enclosure IC411 - TEFC
- Frame 112M
- No load current 2.80 A
- Ambient temperature -20°C to +40°C
- Output rating 5.5 HP
- Number of Poles 2
- LRC 7.7
- Temperature rise 80 K
- Approx. weight³ 81.2 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00436ET3EAL112M-W22 Specs
