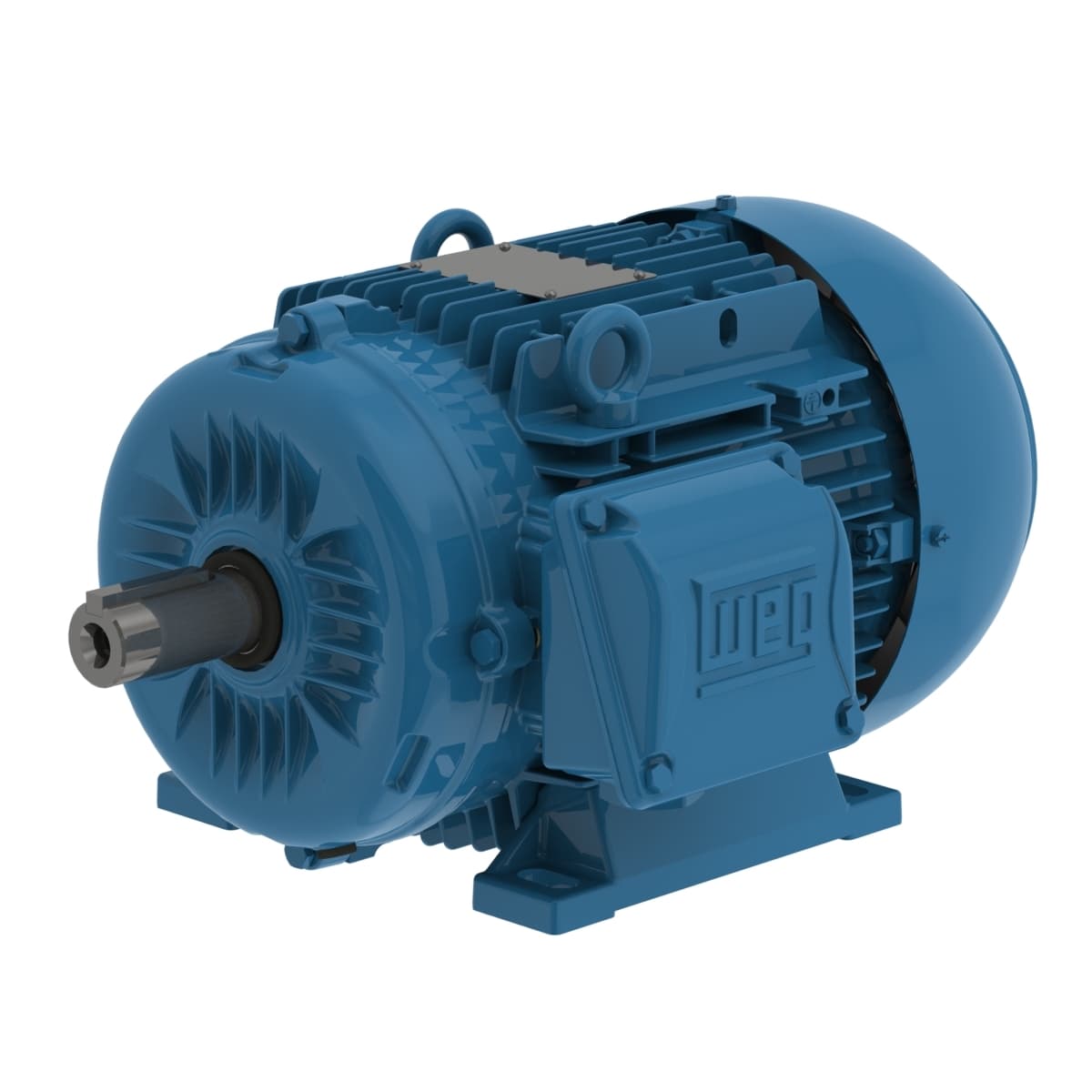

00436ET3YAL112M-W22 WEG AC Motors
Part#:00436ET3YAL112M-W22
Manufacturer:WEG
Alt. Part#:7909323284872
Product Lifecycle:Active
Get a quick Quote!
Multimounting IE3 5.5 HP 2P 112M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 00436ET3YAL112M-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5.5 HP
- Rated Speed2890 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- L. R. Amperes 60.3 A
- Insulation Class F
- Degree of Protection IP55
- Terminal box¹ Right position
- Frame 112M
- LRC 7.7
- Starting Method Direct On Line
- Voltage 460//380-415 V
- Output 5.5 HP (4 kW)
- Breakdown torque 310 %
- Ambient temperature -20°C to +40°C
- Frequency 50 Hz
- Design N
- Enclosure IC411 - TEFC
- Slip 3.67 %
- Duty Cycle S1
- Noise level² 64.0 dB(A)
- Standard NEMA MG-1
- Rated voltage 380 V
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Rated current 7.83 A
- Locked rotor torque 229 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated speed 2890 rpm
- Moment of inertia (J) 0.1898 sq.ft.lb
- Mounting B3L(E)
- Flange Without
- Number of Poles 2
- Rated torque 10.0 ft.lb
- Rotation¹ Both (CW and CCW)
- No load current 2.80 A
- Locked rotor time 25s (cold) 14s (hot)
- Approx. weight³ 80.6 lb
- Output rating 5.5 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00436ET3YAL112M-W22 Specs
1-year warranty
