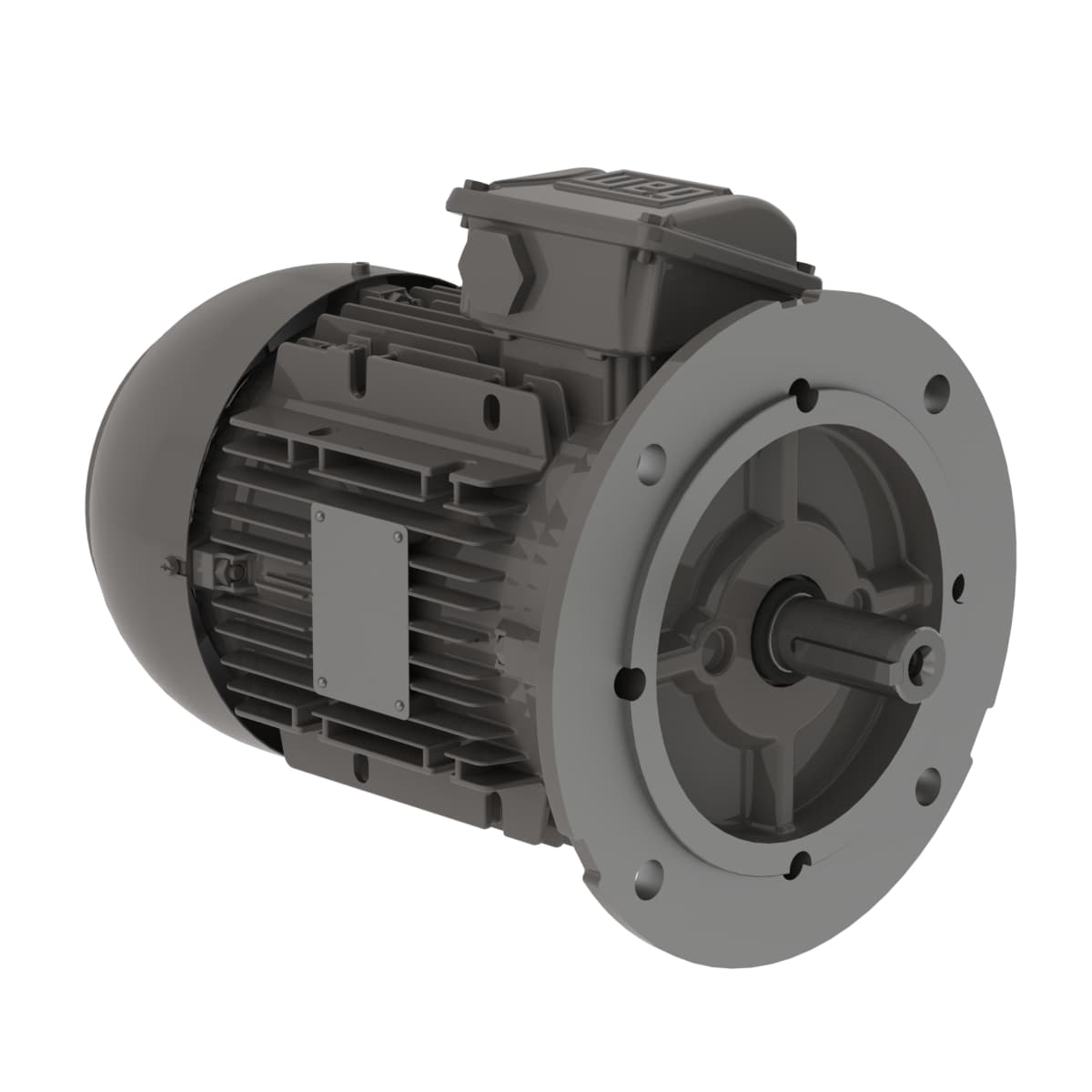

.1818EP3EALR63FF-W22 WEG AC Motors
Part#:.1818EP3EALR63FF-W22
Manufacturer:WEG
Alt. Part#:7909323279632
Product Lifecycle:Active
Get a quick Quote!
Multimounting High Efficiency 0.25 HP 4P 63 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B5T
Check out the .1818EP3EALR63FF-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.25 HP
- Rated Speed1390 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeFF
- Rated speed 1390 rpm
- Flange FF
- Rotation¹ Both (CW and CCW)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Top
- Frame 63
- Breakdown torque 210 %
- L. R. Amperes 2.53 A
- Mounting B5T
- Output 0.25 HP (0.18 kW)
- Number of Poles 4
- Design N
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Slip 7.33 %
- Locked rotor torque 200 %
- Noise level² 44.0 dB(A)
- Synchronous speed 1800 rpm
- Frequency 50 Hz
- Moment of inertia (J) 0.0133 sq.ft.lb
- Enclosure IC411 - TEFC
- Rated voltage 380 V
- Locked rotor time 34s (cold) 19s (hot)
- Standard NEMA MG-1
- Rated current 0.551 A
- Duty Cycle S1
- Voltage 230/460//380-415 V
- Output rating 0.25 HP
- No load current 0.460 A
- Temperature rise 80 K
- Starting Method Direct On Line
- Approx. weight³ 15.1 lb
- Rated torque 0.944 ft.lb
- Insulation Class F
- Degree of Protection IP55
- LRC 4.6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
