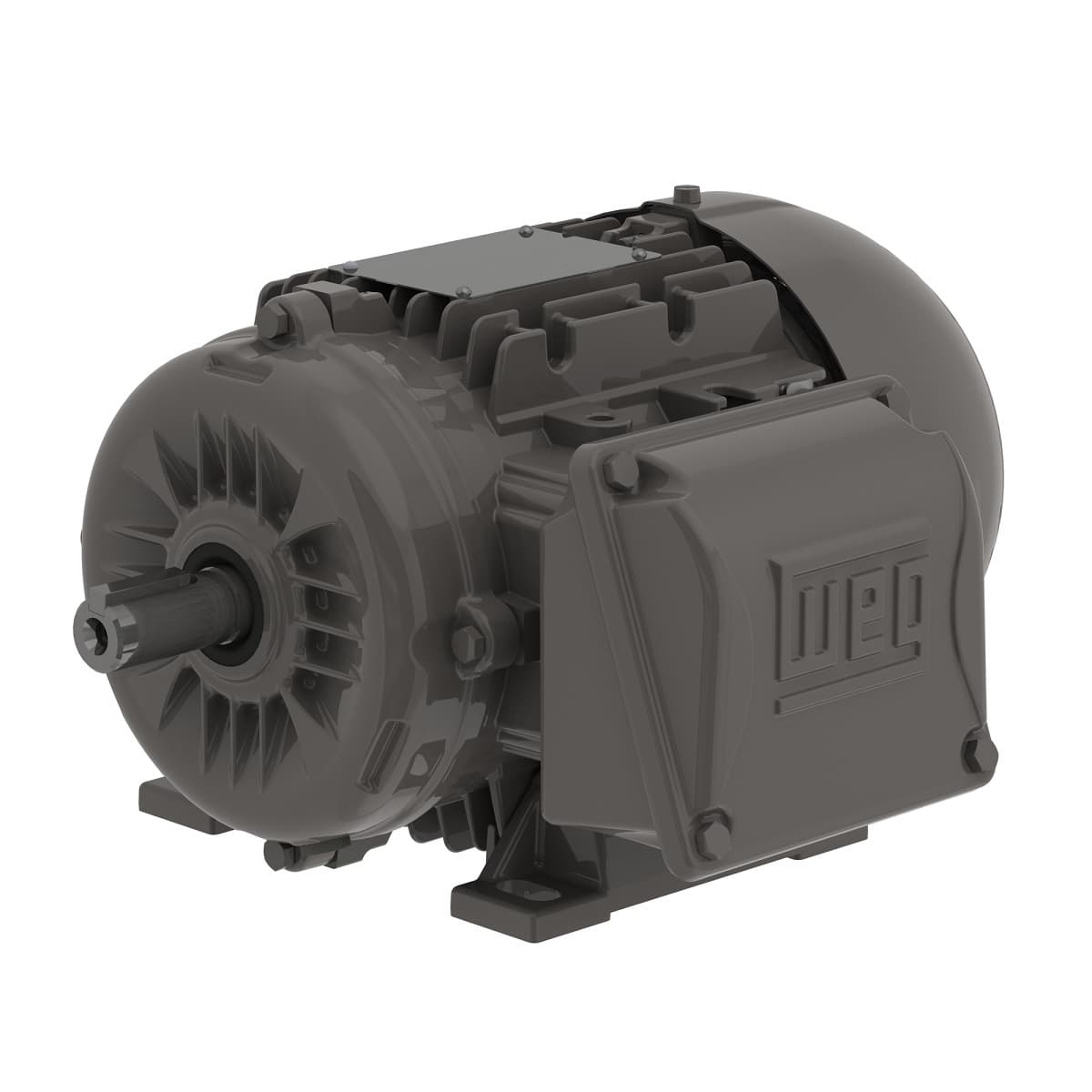

.1818EP3EAL63-W22 WEG AC Motors
Part#:.1818EP3EAL63-W22
Manufacturer:WEG
Alt. Part#:7909323279809
Product Lifecycle:Active
Get a quick Quote!
Multimounting High Efficiency 0.25 HP 4P 63 3Ph 230/460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the .1818EP3EAL63-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.25 HP
- Rated Speed1390 rpm
- Number of Poles4 Pole
- Voltage380 V
- Flange TypeWithout
- L. R. Amperes 2.53 A
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 14.5 lb
- Output 0.25 HP (0.18 kW)
- Design N
- Enclosure IC411 - TEFC
- Terminal box¹ Right position
- Frequency 50 Hz
- Moment of inertia (J) 0.0133 sq.ft.lb
- Starting Method Direct On Line
- Voltage 230/460//380-415 V
- Number of poles 4
- Slip 7.33 %
- Breakdown torque 210 %
- Noise level² 44.0 dB(A)
- Rated speed 1390 rpm
- Locked rotor time 34s (cold) 19s (hot)
- Ambient temperature -20°C to +40°C
- Output rating 0.25 HP
- Number of Poles 4
- No load current 0.460 A
- Rated torque 0.944 ft.lb
- Insulation Class F
- Duty Cycle S1
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Frame 63
- LRC 4.6
- Mounting B3L(E)
- Rated current 0.551 A
- Degree of Protection IP55
- Rated voltage 380 V
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .1818EP3EAL63-W22 Specs
