M9F42208 Schneider Electric Industrial Automation Components
Part#:M9F42208
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

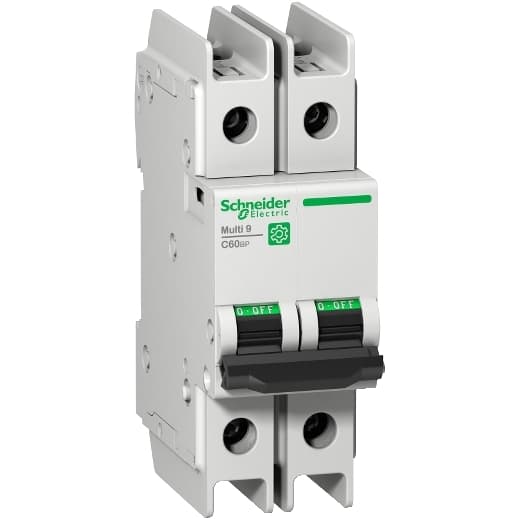

Schneider Electric M9F42208 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to provide circuit protection. This MCB is compliant with UL489 standards, featuring 2 protected poles and a C tripping curve. It has a rated current of 8A, with a rated insulation voltage (Ui) of 500V. The MCB operates at a rated voltage of 60Vdc and has AC ratings of 240V phase-to-neutral and 415V phase-to-phase. It is equipped to handle rated impulse voltage (Uimp) of 6kV. The short circuit breaking rating is specified as 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F42208 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Number Of Protected Poles 2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Color Gray
- Device Application Distribution
- Product Name Multi 9 C60
- Device Short Name C60BP
- Mounting Mode Clip-on
- Range Multi 9
- Mounting Support DIN rail
- Curve Code C
- Line Rated Current 8 A 77 °F (25 °C) EN/IEC 60947-2
- 9 Mm Pitches 4
- Provision For Padlocking Padlockable
- Poles Description 2P
- Depth 2.83 in (72 mm)
- Control Type Toggle
- Width 1.42 in (36 mm)
- Earth-Leakage Protection Without
- Trip Unit Technology Thermal-magnetic
- Product Or Component Type Miniature circuit-breaker
- Local Signalling ON/OFF indication
- Electrical Durability 10000 cycles
- Suitability For Isolation Yes EN/IEC 60947-2
- Contact Position Indicator Yes
- Mechanical Durability 20000 cycles
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Height 4.06 in (103 mm)
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Network Type DC AC
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- Product Certifications IEC CCC CSA UL
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
