M9F42105 Schneider Electric Industrial Automation Components
Part#:M9F42105
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

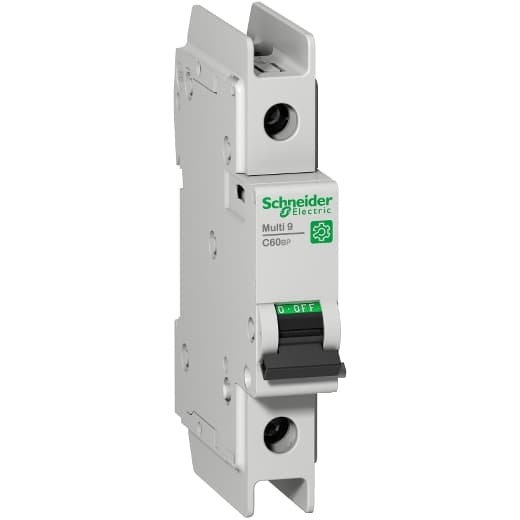

Schneider Electric M9F42105 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed for a single pole configuration. It has a rated current of 5A and is compliant with UL489 standards. The MCB features a rated insulation voltage (Ui) of 500V, a DC rated voltage of 60Vdc, and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. It is equipped with a rated impulse voltage (Uimp) of 6kV and a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 60Vdc. The protected pole count is 1, and it operates with a C tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F42105 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Poles Description 1P
- Line Rated Current 5 A 77 °F (25 °C) EN/IEC 60947-2
- Depth 2.83 in (72 mm)
- Earth-Leakage Protection Without
- Number Of Protected Poles 1
- Contact Position Indicator Yes
- Electrical Durability 10000 cycles
- Suitability For Isolation Yes EN/IEC 60947-2
- Product Name Multi 9 C60
- Mounting Mode Clip-on
- Device Application Distribution
- Device Short Name C60BP
- 9 Mm Pitches 2
- Product Or Component Type Miniature circuit-breaker
- Trip Unit Technology Thermal-magnetic
- Range Multi 9
- Curve Code C
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Width 0.71 in (18 mm)
- Local Signalling ON/OFF indication
- Provision For Padlocking Padlockable
- Mounting Support DIN rail
- Control Type Toggle
- Mechanical Durability 20000 cycles
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Height 4.06 in (103 mm)
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Color Gray
- Network Type DC AC
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Product Certifications IEC CCC CSA UL
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 15 kA 75 % GB 14048.2 - 60 V DC 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Breaking Capacity 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 10 kA AIR 277 V AC UL 489 14 kA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M9F42105 Specs
