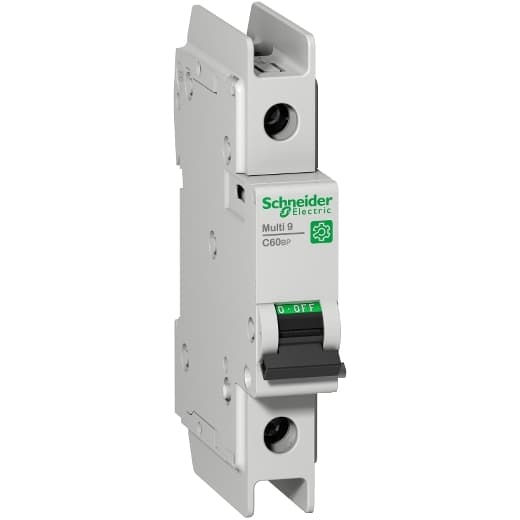

Schneider Electric M9F42104 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to comply with UL489 standards. This MCB features a single pole configuration and is rated for a current of 4A. It has a rated insulation voltage (Ui) of 500V, with a DC rated voltage of 60Vdc and an AC rated voltage of 240V phase-to-neutral and 415V phase-to-phase. The M9F42104 is equipped to handle rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 277Vac and 60Vdc. The protected pole count is 1, and it operates with a C tripping curve.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the M9F42104 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Poles Description 1P
- Trip Unit Technology Thermal-magnetic
- Mounting Mode Clip-on
- Mechanical Durability 20000 cycles
- Device Short Name C60BP
- Mounting Support DIN rail
- Electrical Durability 10000 cycles
- Line Rated Current 4 A 77 °F (25 °C) EN/IEC 60947-2
- Width 0.71 in (18 mm)
- Earth-Leakage Protection Without
- Range Multi 9
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Suitability For Isolation Yes EN/IEC 60947-2
- Control Type Toggle
- Depth 2.83 in (72 mm)
- Product Or Component Type Miniature circuit-breaker
- Contact Position Indicator Yes
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Product Name Multi 9 C60
- Height 4.06 in (103 mm)
- Device Application Distribution
- Curve Code C
- Local Signalling ON/OFF indication
- Color Gray
- Provision For Padlocking Padlockable
- Number Of Protected Poles 1
- 9 Mm Pitches 2
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Network Type DC AC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 60 V DC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- Product Certifications IEC CCC CSA UL
- [Ics] Rated Service Breaking Capacity 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 2.25 kA 75 % GB 14048.2 - 415 V AC 7.5 kA 75 % GB 14048.2 - 240 V AC 15 kA 75 % GB 14048.2 - 60 V DC 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Breaking Capacity 3 kA Icu 415 V AC EN/IEC 60947-2 10 kA Icu 240 V AC EN/IEC 60947-2 20 kA Icu 60 V DC EN/IEC 60947-2 3 kA Icu 415 V AC GB 14048.2 10 kA Icu 240 V AC GB 14048.2 20 kA Icu 60 V DC GB 14048.2 10 kA AIR 277 V AC UL 489 14 kA
