LC1K09008B7 Schneider Electric Industrial Automation Components
Part#:LC1K09008B7
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

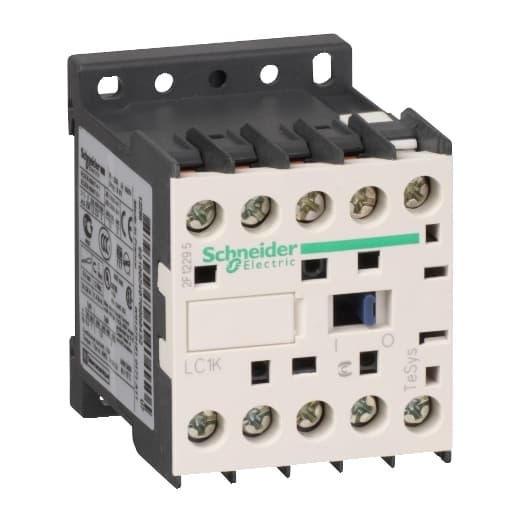

Schneider Electric LC1K09008B7 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 4 poles (2NO+2NC). It has a rated current of 20A (AC-1) and 110A (Irms AC), with a net width of 45 mm. This contactor offers a degree of protection of IP20 and operates with a control voltage (AC) range of 19.2-27.6Vac (24Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). The rated operating voltage (Ue) is up to 690 V, and it is equipped with 0 normally open (NO) auxiliary contacts and 0 normally closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV, and it boasts a mechanical durability of 10,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1K09008B7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Device Short Name LC1K
- [Uc] Control Circuit Voltage 24 V AC 50/60 Hz
- Product Or Component Type Contactor
- Control Circuit Type AC at 50/60 Hz
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Maximum Operating Rate 3600 cyc/h
- Height 2.28 in (58 mm)
- Utilisation Category AC-1
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Width 1.77 in (45 mm)
- Net Weight 0.40 lb(US) (0.18 kg)
- Device Application Control
- Overvoltage Category III
- Inrush Power In VA 30 VA 68 °F (20 °C))
- Hold-In Power Consumption In VA 4.5 VA 68 °F (20 °C))
- Mechanical Durability 10 Mcycles
- Product Name TeSys K
- Poles Description 4P
- Depth 2.24 in (57 mm)
- Range TeSys
- Signalling Circuit Frequency <= 400 Hz
- Electrical Durability 0.18 Mcycles 20 A AC-1 <= 440 V
- Contactor Application Resistive load
- Power Pole Contact Composition 2 NO + 2 NC
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit
- Heat Dissipation 1.3 W
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947
- [Ie] Rated Operational Current 20 A 122 °F (50 °C)) <= 440 V AC AC-1 power circuit 16 A 158 °F (70 °C)) 690 V AC AC-1 power circuit
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.2...0.75 Uc (at <50 °C)
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mounting Support Plate Rail
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA C22.2 No 14
- Operating Time 10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing 15...25 ms coil de-energisation and NC closing 5...15 ms coil energisation and NC opening
- Connections - Terminals screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end screw clamp terminals 2 0.00…
- Mechanical Robustness Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contac
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Icw] Rated Short-Time Withstand Current 90 A 122 °F (50 °C) - 1 s power circuit 85 A 122 °F (50 °C) - 5 s power circuit 80 A 122 °F (50 °C) - 10 s power circuit 60 A 122 °F (50 °C) - 30 s power circuit 45 A 122 °F (50 °C) - 1 min power circuit 40 A 122 °F (50 °C) - 3 mi
