LC1K0610G7 Schneider Electric Industrial Automation Components
Part#:LC1K0610G7
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

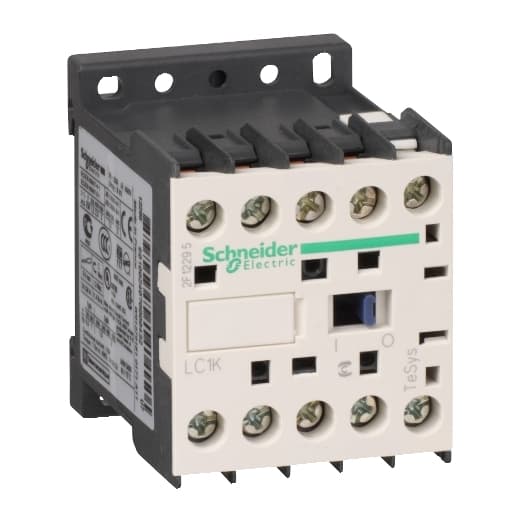

Schneider Electric LC1K0610G7 is a magnetic contactor within the K sub-range, featuring screw connections and three poles (3P; 3NO). It has a rated current of 20A for AC-1 and 6A for 440Vac in AC-3. The net width of the contactor is 45 mm, and it offers a degree of protection of IP20. The control voltage (AC) ranges from 96-138Vac (120Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc). Its rated operating voltage (Ue) is up to 690 V, and it includes 1 Normally Open (NO) auxiliary contact but no Normally Closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 8 kV. This contactor supports rated active power of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all in AC-3. It is designed for mechanical durability of up to 10 million operations at no load, with a phase-to-phase rated voltage (AC) of 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1K0610G7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Overvoltage Category III
- Insulation Resistance > 10 MOhm for signalling circuit
- Height 2.28 in (58 mm)
- Poles Description 3P
- [Ie] Rated Operational Current 6 A<= 440 V AC AC-3 power circuit
- Signalling Circuit Frequency <= 400 Hz
- Power Pole Contact Composition 3 NO
- [Uimp] Rated Impulse Withstand Voltage 8 kV
- Mechanical Durability 10 Mcycles
- Auxiliary Contacts Type Instantaneous 1 NO
- Device Application Control
- Auxiliary Contact Composition 1 NO
- Maximum Operating Rate 3600 cyc/h
- Product Name TeSys K
- Heat Dissipation 1.3 W
- Device Short Name LC1K
- [Uc] Control Circuit Voltage 120 V AC 50/60 Hz
- Net Weight 0.40 lb(US) (0.18 kg)
- Control Circuit Type AC at 50/60 Hz
- Inrush Power In VA 30 VA 68 °F (20 °C))
- Product Or Component Type Contactor
- Depth 2.24 in (57 mm)
- Range TeSys
- Hold-In Power Consumption In VA 4.5 VA 68 °F (20 °C))
- Minimum Switching Current 5 mA signalling circuit
- Electrical Durability 1.3 Mcycles 6 A AC-3 <= 440 V
- Contactor Application Motor control
- Average Impedance 3 mOhm - Ith 20 A 50 Hz power circuit
- Non Overlap Distance 0.02 in (0.5 mm)
- Width 1.77 in (45 mm)
- Minimum Switching Voltage 17 V signalling circuit
- Utilisation Category AC-3 AC-4
- Operating Time 10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing
- [Ue] Rated Operational Voltage Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
- [Ith] Conventional Free Air Thermal Current 20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
- Mounting Support Plate Rail
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Tightening Torque 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
- Control Circuit Voltage Limits Operational: 0.8...1.15 Uc (at <50 °C) Drop-out: 0.2...0.75 Uc (at <50 °C)
- Irms Rated Making Capacity 110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
- Associated Fuse Rating 25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
- Mechanical Robustness Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contac
- Connections - Terminals screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible without cable end screw clamp terminals 1 0.00…0.00 in² (0.34…2.5 mm²)flexible with cable end screw clamp terminals 2 0.00…
- [Icw] Rated Short-Time Withstand Current 90 A 122 °F (50 °C) - 1 s power circuit 85 A 122 °F (50 °C) - 5 s power circuit 80 A 122 °F (50 °C) - 10 s power circuit 60 A 122 °F (50 °C) - 30 s power circuit 45 A 122 °F (50 °C) - 1 min power circuit 40 A 122 °F (50 °C) - 3 mi
- Rated Breaking Capacity 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
- [Ui] Rated Insulation Voltage Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit
- Motor Power Kw 1.5 kW 220...230 V AC 50/60 Hz AC-3 2.2 kW 380...415 V AC 50/60 Hz AC-3 3 kW 440 V AC 50/60 Hz AC-3 3 kW 480 V AC 50/60 Hz AC-3 3 kW 500...600 V AC 50/60 Hz AC-3 3 kW 660...690 V AC 50/60 Hz AC-3 1.5 kW 400 V AC 50/60 Hz AC-4
