LC1D25G7 Schneider Electric Industrial Automation Components
Part#:LC1D25G7
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 24
Jun 19, 2025

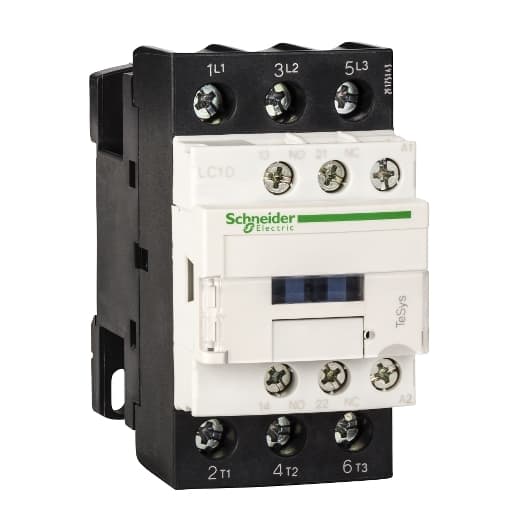

Schneider Electric LC1D25G7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed for 3-pole (3NO) operation. It has a rated current of 40A for AC-1 applications and 25A for 440Vac in AC-3 scenarios. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates with a control voltage (AC) range of 96-132Vac (120Vac nominal at 50Hz) and 102-132Vac (120Vac nominal at 60Hz). The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV, and it can handle rated active power up to 15kW for 660-690Vac in AC-3 conditions. Additionally, it features 1 normally closed (NC) auxiliary contact with a contact type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 2HP at 115Vac in single-phase to 20HP at 575-600Vac in three-phase applications. Its mechanical durability is rated at 15 million operations at no load, and its electrical durability is rated at 1.6 million operations with load. The rated voltage for phase-to-phase applications is 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1D25G7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Device Short Name LC1D
- Mechanical Durability 15 Mcycles
- Insulation Resistance > 10 MOhm for signalling circuit
- Range TeSys
- Rated Breaking Capacity 450 A 440 V power circuit IEC 60947
- Power Pole Contact Composition 3 NO
- Auxiliary Contact Composition 1 NO + 1 NC
- Signalling Circuit Frequency 25...400 Hz
- Product Or Component Type Contactor
- Overvoltage Category III
- Front Cover With
- Maximum Operating Rate 3600 cyc/h 60 °C
- Product Name TeSys D
- [Uc] Control Circuit Voltage 120 V AC 50/60 Hz
- Average Impedance 2 mOhm - Ith 40 A 50 Hz power circuit
- Coil Technology Without built-in suppressor module
- Minimum Switching Voltage 17 V signalling circuit
- Poles Description 3P
- Minimum Switching Current 5 mA signalling circuit
- Control Circuit Type AC at 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Heat Dissipation 2…3 W 50/60 Hz
- [Ie] Rated Operational Current 25 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
- [Ue] Rated Operational Voltage Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC
- Electrical Durability 1.65 Mcycles 25 A AC-3 <= 440 V 1.4 Mcycles 40 A AC-1 <= 440 V
- Power Dissipation Per Pole 3.2 W AC-1 1.25 W AC-3
- [Ith] Conventional Free Air Thermal Current 10 A 140 °F (60 °C) signalling circuit 40 A 140 °F (60 °C) power circuit
- Inrush Power In VA 70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
- Contactor Application Motor control Resistive load
- Mounting Support Rail Plate
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Hold-In Power Consumption In VA 7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Auxiliary Contacts Type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
- Operating Time 12...22 ms closing 4...19 ms opening
- Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 40 A gG <= 690 V type 2 power circuit
- Irms Rated Making Capacity 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 450 A 440 V power circuit IEC 60947
- Utilisation Category AC-3 AC-4 AC-1
- Connections - Terminals Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
- Control Circuit Voltage Limits 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.13 lb
- Motor Power HP (UL / CSA) 3 hp 230/240 V at AC 50/60 Hz for 1 phase 2 hp 115 V at AC 50/60 Hz for 1 phase 7.5 hp 230/240 V at AC 50/60 Hz for 3 phase 15 hp 460/480 V at AC 50/60 Hz for 3 phase 20 hp 575/600 V at AC 50/60 Hz for 3 phase 7.5 hp 200/208 V at
- [Ui] Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- Motor Power Kw 5.5 kW 220...230 V AC 50/60 Hz AC-3) 11 kW 380...400 V AC 50/60 Hz AC-3) 11 kW 415...440 V AC 50/60 Hz AC-3) 15 kW 500 V AC 50/60 Hz AC-3) 15 kW 660...690 V AC 50/60 Hz AC-3) 5.5 kW 400 V AC 50/60 Hz AC-4)
- [Icw] Rated Short-Time Withstand Current 240 A 104 °F (40 °C) - 10 s power circuit 380 A 104 °F (40 °C) - 1 s power circuit 50 A 104 °F (40 °C) - 10 min power circuit 120 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
- Product Certifications UL BV RINA GOST DNV LROS (Lloyds register of shipping) CCC GL CSA
