LC1D115G7 Schneider Electric Industrial Automation Components
Part#:LC1D115G7
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

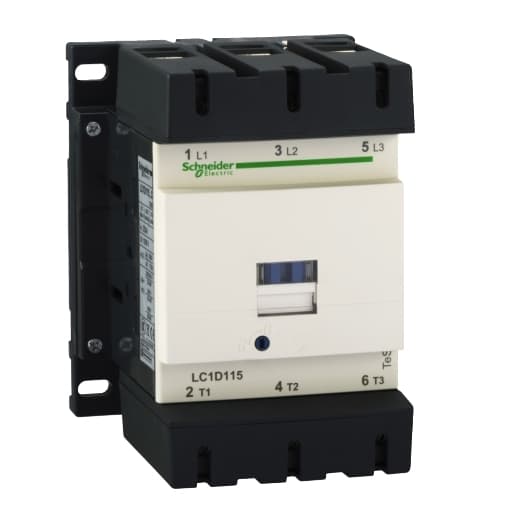

Schneider Electric LC1D115G7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 200A (AC-1) and 115A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. The net width of the contactor is 120 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 96-138Vac (120Vac nominal; 50Hz/60Hz; 0.8...1.15 x Uc), and the rated operating voltage (Ue) is up to 1000 V. This model includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, with a contacts type of 1NO+1NC instantaneous aux. The rated impulse voltage (Uimp) is 8 kV, and the rated active power (kW) varies from 30kW (220-230Vac; AC-3) up to 80kW (660-690Vac; AC-3), including 65kW at 1000Vac (AC-3). The rated power (HP) for different voltages ranges from 30HP at 200-208Vac to 100HP at 575-600Vac, all for 3-phase, 50Hz/60Hz, UL/CSA. It boasts a mechanical durability of 8,000,000 operations and an electrical durability of 950,000 operations with load, with a rated voltage (AC) - phase-to-phase of 1000 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1D115G7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- [Uimp] Rated Impulse Withstand Voltage 8 kV IEC 60947
- Power Pole Contact Composition 3 NO
- Control Circuit Type AC at 50/60 Hz
- Overvoltage Category III
- Product Name TeSys D
- Device Short Name LC1D
- [Uc] Control Circuit Voltage 120 V AC 50/60 Hz
- Rated Breaking Capacity 1100 A 440 V power circuit IEC 60947
- Heat Dissipation 3…8 W 50/60 Hz
- Poles Description 3P
- Auxiliary Contact Composition 1 NO + 1 NC
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Product Or Component Type Contactor
- [Ith] Conventional Free Air Thermal Current 200 A 140 °F (60 °C) power circuit
- Front Cover With
- Maximum Operating Rate 2400 cyc/h 60 °C
- Minimum Switching Voltage 17 V signalling circuit
- Range TeSys
- Average Impedance 0.6 mOhm - Ith 200 A 50 Hz power circuit
- Signalling Circuit Frequency 25...400 Hz
- Mechanical Durability 8 Mcycles
- Minimum Switching Current 5 mA signalling circuit
- Insulation Resistance > 10 MOhm signalling circuit
- Operating Time 6...20 ms opening 20...50 ms closing
- Contactor Application Resistive load Motor control
- Electrical Durability 0.8 Mcycles 200 A AC-1 <= 440 V 0.95 Mcycles 115 A AC-3 <= 440 V
- Mounting Support Rail Plate
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- [Ue] Rated Operational Voltage Power circuit <= 1000 V AC 25...400 Hz Power circuit <= 300 V DC
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Power Dissipation Per Pole 24 W AC-1 7.9 W AC-3
- [Ie] Rated Operational Current 200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 115 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
- Inrush Power In VA 280…350 VA 60 Hz 0.8 68 °F (20 °C)) 280…350 VA 50 Hz 0.8 68 °F (20 °C))
- Hold-In Power Consumption In VA 2…18 VA 60 Hz 0.3 68 °F (20 °C)) 2…18 VA 50 Hz 0.3 68 °F (20 °C))
- Associated Fuse Rating 250 A gG <= 690 V type 1 power circuit 200 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit
- Utilisation Category AC-1 AC-4 AC-3
- Irms Rated Making Capacity 1260 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
- Control Circuit Voltage Limits 0.3...0.5 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.15 Uc -40…131 °F (-40…55 °C) operational AC 50/60 Hz 1...1.15 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
- Connections - Terminals Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)fl
- Tightening Torque Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm)
- Motor Power HP (UL / CSA) 30 hp 200/208 V at AC 50/60 Hz for 3 phase 40 hp 230/240 V at AC 50/60 Hz for 3 phase 75 hp 460/480 V at AC 50/60 Hz for 3 phase 100 hp 575/600 V at AC 50/60 Hz for 3 phase
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
- [Icw] Rated Short-Time Withstand Current 250 A 104 °F (40 °C) - 10 min power circuit 550 A 104 °F (40 °C) - 1 min power circuit 950 A 104 °F (40 °C) - 10 s power circuit 1100 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling ci
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- Motor Power Kw 30 kW 220...230 V AC 50/60 Hz AC-3) 55 kW 380...400 V AC 50/60 Hz AC-3) 59 kW 415...440 V AC 50/60 Hz AC-3) 75 kW 500 V AC 50/60 Hz AC-3) 80 kW 660...690 V AC 50/60 Hz AC-3) 65 kW 1000 V AC 50/60 Hz AC-3) 18.5 kW 400 V AC 50/
- Product Certifications LROS (Lloyds register of shipping) DNV CCC GOST GL CSA UL BV RINA UKCA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents LC1D115G7 Specs
