LC1D12B7 Schneider Electric Industrial Automation Components
Part#:LC1D12B7
Manufacturer:Schneider Electric
Product Lifecycle:Active
In-stock parts: 14
Jun 19, 2025

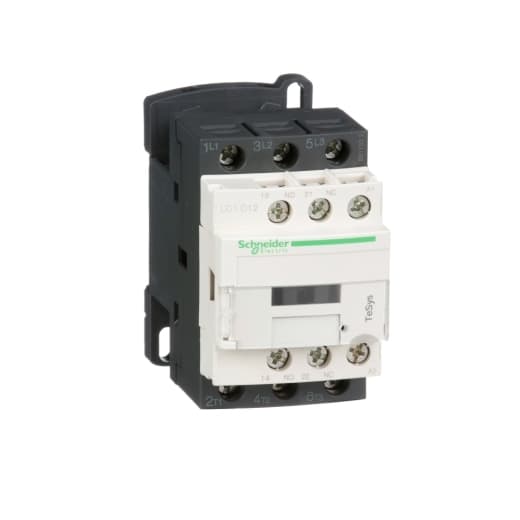

Schneider Electric LC1D12B7 is a magnetic contactor from the Deca sub-range, designed with screw connections and three poles (3P; 3NO). It has a rated current of 25A for AC-1 and 12A for AC-3 at 440Vac. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection of IP20 and operates with a control voltage (AC) range of 19.2-26.4Vac at 50Hz and 20.4-26.4Vac at 60Hz. The LC1D12B7 is capable of handling a rated operating voltage (Ue) up to 690 V and includes 1 normally open (NO) auxiliary contact. It has a rated impulse voltage (Uimp) of 6 kV and supports rated active power of up to 7.5kW for various AC-3 voltage ranges. Additionally, it features 1 normally closed (NC) auxiliary contact and instantaneous auxiliary contacts type of 1NO+1NC. The rated power (HP) varies from 0.5HP at 115Vac in single-phase to 10HP at 575-600Vac in three-phase, under UL/CSA standards. Its mechanical durability is rated at 15 million operations at no load, and its electrical durability is rated at 2 million operations with load. The rated voltage (AC) for phase-to-phase is 690 V.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the LC1D12B7 Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Control Circuit Type AC 50/60 Hz
- Signalling Circuit Frequency 25...400 Hz
- Product Name TeSys D
- Rated Breaking Capacity 250 A 440 V power circuit IEC 60947
- Product Or Component Type Contactor
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Average Impedance 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Range TeSys
- Poles Description 3P
- [Uc] Control Circuit Voltage 24 V AC 50/60 Hz
- Minimum Switching Current 5 mA signalling circuit
- Front Cover With
- Mechanical Durability 15 Mcycles
- Device Short Name LC1D
- Overvoltage Category III
- Auxiliary Contact Composition 1 NO + 1 NC
- Power Pole Contact Composition 3 NO
- Heat Dissipation 2…3 W 50/60 Hz
- Insulation Resistance > 10 MOhm signalling circuit
- Minimum Switching Voltage 17 V signalling circuit
- Coil Technology Without built-in suppressor module
- Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
- Contactor Application Resistive load Motor control
- [Ie] Rated Operational Current 25 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 12 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
- Power Dissipation Per Pole 0.36 W AC-3 1.56 W AC-1
- [Ue] Rated Operational Voltage Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- Operating Time 12...22 ms closing 4...19 ms opening
- [Ith] Conventional Free Air Thermal Current 25 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Electrical Durability 2 Mcycles 12 A AC-3 <= 440 V 0.8 Mcycles 25 A AC-1 <= 440 V
- Hold-In Power Consumption In VA 7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
- Inrush Power In VA 70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
- Mounting Support Rail Plate
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 40 A gG <= 690 V type 1 power circuit 25 A gG <= 690 V type 2 power circuit
- Utilisation Category AC-3 AC-1 AC-4
- Irms Rated Making Capacity 250 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
- Connections - Terminals Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Power circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible
- Control Circuit Voltage Limits 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
- Tightening Torque Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lb
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- Motor Power HP (UL / CSA) 0.5 hp 115 V at AC 50/60 Hz for 1 phase 2 hp 230/240 V at AC 50/60 Hz for 1 phase 3 hp 200/208 V at AC 50/60 Hz for 3 phase 3 hp 230/240 V at AC 50/60 Hz for 3 phase 7.5 hp 460/480 V at AC 50/60 Hz for 3 phase 10 hp 575/600 V at A
- Motor Power Kw 3 kW 220...230 V AC 50/60 Hz AC-3) 5.5 kW 380...400 V AC 50/60 Hz AC-3) 5.5 kW 415...440 V AC 50/60 Hz AC-3) 7.5 kW 500 V AC 50/60 Hz AC-3) 7.5 kW 660...690 V AC 50/60 Hz AC-3) 3.7 kW 400 V AC 50/60 Hz AC-4)
- [Icw] Rated Short-Time Withstand Current 105 A 104 °F (40 °C) - 10 s power circuit 210 A 104 °F (40 °C) - 1 s power circuit 30 A 104 °F (40 °C) - 10 min power circuit 61 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circu
- [Ui] Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
- Product Certifications CCC CSA GL GOST BV DNV RINA LROS (Lloyds register of shipping) UL
