ZQ 700-11 Schmersal Electronic Components
Part#:ZQ 700-11
Manufacturer:Schmersal
Alt. Part#:101192476
Product Lifecycle:Active
In-stock parts: 1
Jun 19, 2025

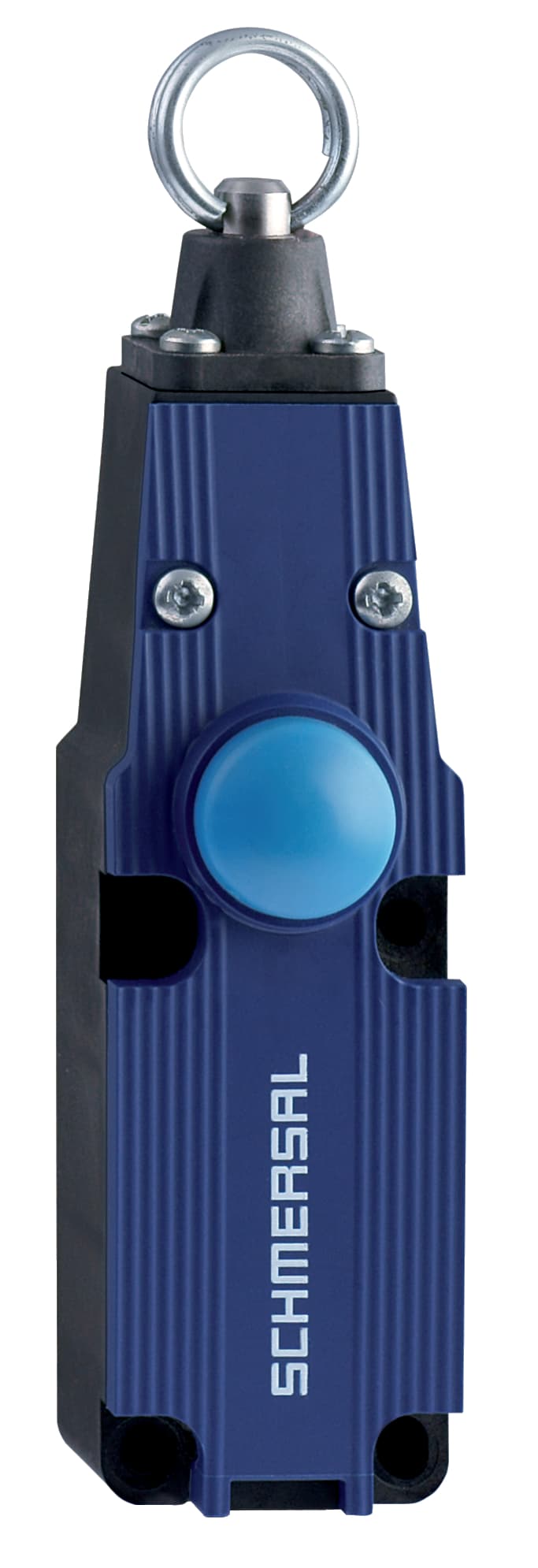

Pull-wire emergency stop switches; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; one-side operation / wire up to 10 m long; Release push button; Position indicator; Large wiring compartment; Twisting of towing eye not possible; wire pull and breakage
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the ZQ 700-11 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Glass-fibre, thermoplastic
- Material of the cover Glass-fibre, thermoplastic
- Mechanical life, minimum 1,000,000 Operations
- Number of safety contacts 1
- Width 40.5 mm
- Ambient temperature, maximum +70 °C
- Thermal test current 10 A
- Standards IEC/EN 60947-5-1, EN ISO 13850, IEC/EN 60947-5-5
- Degree of protection IP67 to EN 60529
- Relative humidity, maximum 95 %
- Number of auxiliary contacts 1
- Cable section, maximum 2.5 mm²
- Gross weight 215 g
- Cable section, minimum 0.75 mm²
- Switching principle Snap switch element
- Length of the wire, maximum 10 m
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 6 kV
- Terminal Connector Screw connection
- Depth 50.9 mm
- Rated insulation voltage Ui 500 V
- Switching element NO contact, NC contact
- Utilisation category DC-13 24 VDC
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Utilisation category AC-15 4 A
- Material of the contacts, electrical Silver
- Height 160 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents ZQ 700-11 Specs
1-year warranty
