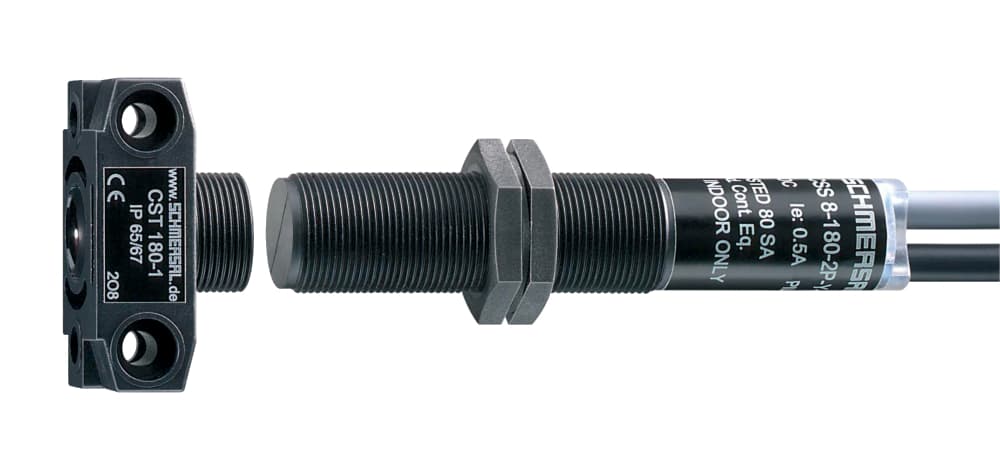

EX-CSS 8-180-2P+D-M-L-3G/D 5,0M Schmersal Electronic Components
Part#:EX-CSS 8-180-2P+D-M-L-3G/D 5,0M
Manufacturer:Schmersal
Alt. Part#:101190269
Product Lifecycle:Active
Get a quick Quote!
Safety sensors; Pre-wired cable 7-pole; Comfortable diagnostics through sensor LED and electronic signalling output; Ex certified; Thermoplastic enclosure; Electronic contact-free, coded system; Ø M18; Misaligned actuation possible; High repeat accuracy o
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the EX-CSS 8-180-2P+D-M-L-3G/D 5,0M Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Glass-fibre, reinforced thermoplastic
- Number of Series-wiring of sensors 16
- Short circuit detection Yes
- Restistance to shock 30 g / 11 ms
- No-load supply current I0 50 mA
- Current leakage Ir 0.5 mA
- Installation conditions (mechanical) not flush
- Safety functions Yes
- Ensured switch distance OFF Sar 10 mm
- Ambient temperature, minimum -25 °C
- Voltage type DC (direct current)
- Sensor topology Sensor for series wiring
- Hysteresis (Switch distance), maximum 0.7 mm
- Switch distance 8 mm
- ISO thread of the sensor M18
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Active principle inductive
- Impact energy, maximum 2 J
- Terminal connector, Output 7-pole
- Length of sensor 92 mm
- Rated insulation voltage Ui 32 VDC
- Operating current 1,000 mA, 500 mA
- Degree of protection IP65, IP67
- Rated impulse withstand voltage Uimp 0.8 kV
- Operating voltage, maximum 26.4 VDC
- Current, Utilisation category DC12 0.05 A
- Switching frequency, approx. 3 Hz
- Reaction time, maximum 30 ms
- Active area Glass-fibre, reinforced thermoplastic
- Integral System Diagnostics, status Yes
- Housing construction form Cylinder, thread
- Material of the nuts Glass-fibre, reinforced thermoplastic
- Number of fail-safe digital outputs 2
- Tightening torque of nuts, maximum 3 Nm
- Length of cable 5 m
- Storage and transport temperature, maximum +85 °C
- Gross weight 340 g
- Number of semi-conductor outputs with signaling function 1
- Duration of risk, maximum 30 ms
- Terminal Connector Cable
- Short-circuit recognition Yes
- Repeat accuracy R R 0.2 mm
- Ensured switch distance ON Sao 7 mm
- Ambient temperature, maximum +40 °C
- Overvoltage category III
- Versions p-type
- Protection rating II
- Voltage drop Ud, maximum 4 V
- width across flats 24 BK
- Voltage, Utilisation category DC13 24 VDC
- Rated operating voltage 24 VDC
- Current, Utilisation category DC13 0.05 A
- Wire cross-section 23 AWG
- Storage and transport temperature, minimum -25 °C
- Operating voltage, minimum 20.4 VDC
- Degree of pollution to VDE 0100 3
- Voltage, Utilisation category DC12 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents EX-CSS 8-180-2P+D-M-L-3G/D 5,0M Specs
