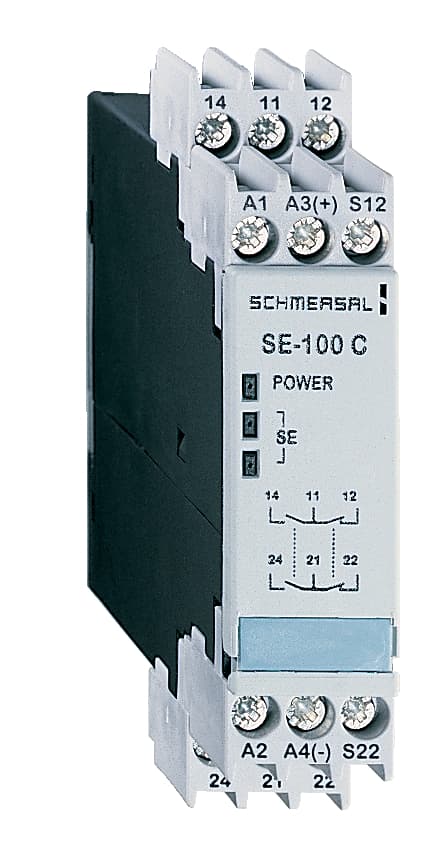

SE-100 C AUSWERTEGERAET Schmersal Electronic Components
Part#:SE-100 C AUSWERTEGERAET
Manufacturer:Schmersal
Alt. Part#:101153919
Product Lifecycle:Active
Get a quick Quote!
Safety-related tactile sensor; Safety edges; To monitor 1 ... 2 safety edge(s); 1 safety contact, STOP 0; 1 Signalling output
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the SE-100 C AUSWERTEGERAET Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Plastic, PE (Black), Crastin (Grey)
- Number of LEDs 2
- Mechanical life, minimum 20,000,000 Operations
- Degree of protection of the mounting space IP54
- Degree of pollution to VDE 0110 2
- Wire breakage detection Yes
- Stop-Category 0
- Climatic stress EN ISO 13856-2
- Length of cable 200 m
- Ambient temperature, maximum +55 °C
- Rated AC voltage for controls at DC minimum 21.6 VDC
- Time to readiness, maximum 300 ms
- Number of signalling outputs 1
- Height 100 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 0.15 mm
- Standards EN ISO 13850, EN ISO 13849-1
- Gross weight 166 g
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Ambient temperature, minimum +5 °C
- Rated operating voltage 24 VDC +20% / -10%
- Rated control voltage at DC, maximum 28.8 VDC
- Reaction time, maximum 16 ms
- Short-circuit recognition Yes
- Integral System Diagnostics, status Yes
- Width 22.5 mm
- Rated impulse withstand voltage Uimp 4 kV
- Automatic reset function Yes
- Number of safety contacts 1
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Operating current 150 mA
- Degree of protection of clips or terminals IP20
- Reset after disconnection of supply voltage Yes
- Number of auxiliary contacts 1
- Cable section, maximum 2 x 1.5 mm²
- Electronic Fuse Yes
- Earth connection detection Yes
- Terminal Connector Screw connection
- Degree of protection of the enclosure IP40
- Overvoltage category III
- Electrical power consumption, maximum 4 W
- EMC rating EMC-Directive
- Utilisation category AC-15 230 VAC
- Utilisation category DC-13 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents SE-100 C AUSWERTEGERAET Specs
