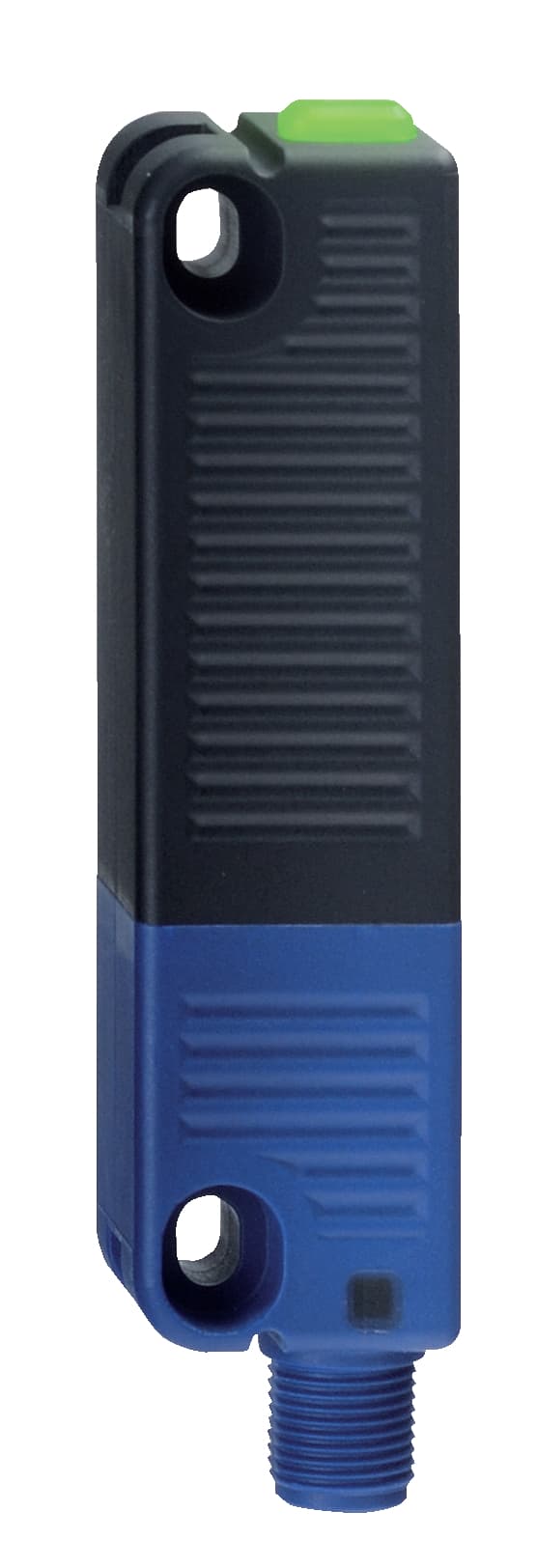

RSS 36-D-ST Schmersal Electronic Components
Part#:RSS 36-D-ST
Manufacturer:Schmersal
Alt. Part#:101213954
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
Safety sensors; Electronic safety sensors; Universal coding with RFID technology; 1 x connector socket M12, 8-pole; Actuation from side; Thermoplastic enclosure; RFID-technology for needs-based protection against tampering; Misaligned actuation possible;
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS 36-D-ST Schmersal price in the box on the right side or send a quick quote.
Product Details
- Active principle RFID
- Time to readiness, maximum 2,000 ms
- Number of semi-conductor outputs with signaling function 1
- Mounting A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
- Ensured switch distance OFF Sar 20 mm
- Ambient temperature, maximum +70 °C
- Degree of pollution to VDE 0100 3
- Rated insulation voltage Ui 32 VDC
- Output current, (fail-safe output), maximum 0.25 A
- Coding level according to ISO 14119 Low
- Short circuit detection Yes
- Number of LEDs 3
- Hysteresis (Switch distance), maximum 2 mm
- Note The cable section of the interconnecting cable must be observed! Cable length and cable section alter the voltage drop depending on the output current
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- general information Universal coding
- Integral System Diagnostics, status Yes
- Actuating panels lateral
- Height of sensor 25 mm
- Installation conditions (mechanical) not flush
- Reaction time, maximum 100 ms
- Cascadable Yes
- Switch distance 12 mm
- Length of sensor 22 mm
- Material temperature resistance of the cable (at rest), minimum -30 °C
- Sensor topology Sensor for series wiring
- Housing construction form Block
- Duration of risk, maximum 200 ms
- Repeat accuracy R R 0.5 mm
- Width of sensor 106.3 mm
- Storage and transport temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Standards IEC 60947-5-3
- Safety functions Yes
- Ensured switch distance ON Sao 10 mm
- Storage and transport temperature, maximum +85 °C
- Rated operating voltage, maximum 26.4 VDC
- Switching frequency, approx. 1 Hz
- Voltage, Utilisation category DC12 24 VDC
- Number of fail-safe digital outputs 2
- Voltage type DC (direct current)
- Voltage drop Ud, maximum 2 V
- Short-circuit recognition Yes
- Degree of protection IP65 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
- Rated operating voltage, minimum 20.4 VDC
- Voltage, Utilisation category DC13 24 VDC
- EMC rating IEC 60947-3
- Gross weight 80 g
- Ambient temperature, minimum -25 °C
- Current, Utilisation category DC13 0.05 A
- Restistance to shock 30 g / 11 ms
- Material temperature resistance of the cable (in motion), minimum -10 °C
- Rated operating voltage 24 VDC −15 % / +10 %
- Required rated short-circuit current to EN 60947-5-1 100 A
- Versions p-type
- Current leakage Ir 0.5 mA
- Overvoltage category III
- Operating current 600 mA
- Note (Repeat accuracy R) Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance
- Active area lateral
- Material temperature resistance (long-term), maximum +105 °C
- No-load supply current I0 100 mA
- Rated operating current (safety outputs) 250 mA
- Current, Utilisation category DC12 0.05 A
- Interfering radiation IEC 61000-6-4
- Diagnostic output Yes
- Terminal Connector Connector M12, 8-pole
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Protection rating III
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents RSS 36-D-ST Specs
This item can ship within 24h!
1-year warranty
