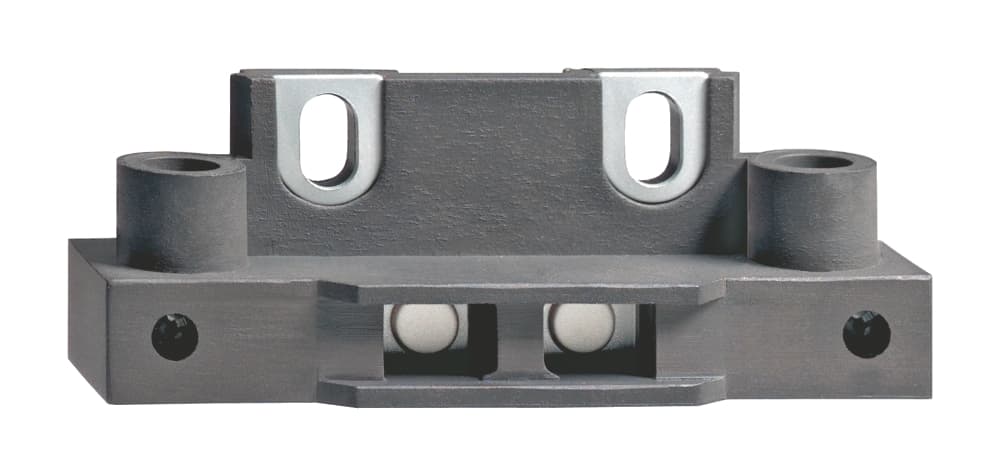

AZ08K Schmersal Safety Switches
Part#:AZ08K
Manufacturer:Schmersal
Alt. Part#:101183494
Product Lifecycle:Active
In-stock parts: 8
Aug 26, 2025
Positive-operation door contacts; Single wire entry (1 cable per clamp); Thermoplastic enclosure; Contact pin in actuator bridge; 1 Actuating planes; Protection class IP20; Inseparable cover and enclosure; Enclosure with mounting slots; Self-cleaning thro
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZ08K Schmersal price in the box on the right side or send a quick quote.
Product Details
- Mechanical life, minimum 1,000,000 Operations
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Material of the contacts, electrical Silver-plated Cu rivets
- Cable entry Single conductor version with connecting funnel
- Ambient temperature, minimum -30 °C
- Switching element Opener (NC)
- Suitable for elevators Yes
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +80 °C
- Gross weight 27 g
- Cable section, minimum 0.75 mm²
- Rated insulation voltage Ui 500 V
- Standards EN 81
- Actuating stroke 5 mm
- Height 27 mm
- Utilisation category DC-13 200 VDC
- Number of safety contacts 1
- Width 73.5 mm
- Mounting Enclosure with mounting slots
- Thermal test current 4 A
- Switching principle Self-cleaning pressure contact
- Actuating panels 1
- Terminal Connector Screw terminals M 3
- Degree of protection IP20 to DIN VDE 0470-1, IP20 to EN 60529
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Depth 21.5 mm
- Actuating force, approx. 2 N
- Utilisation category AC-15 230 VAC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AZ08K Specs
