RST21S1 Schmersal Key Switches
Part#:RST21S1
Manufacturer:Schmersal
Alt. Part#:101195364
Product Lifecycle:Active
Get a quick Quote!

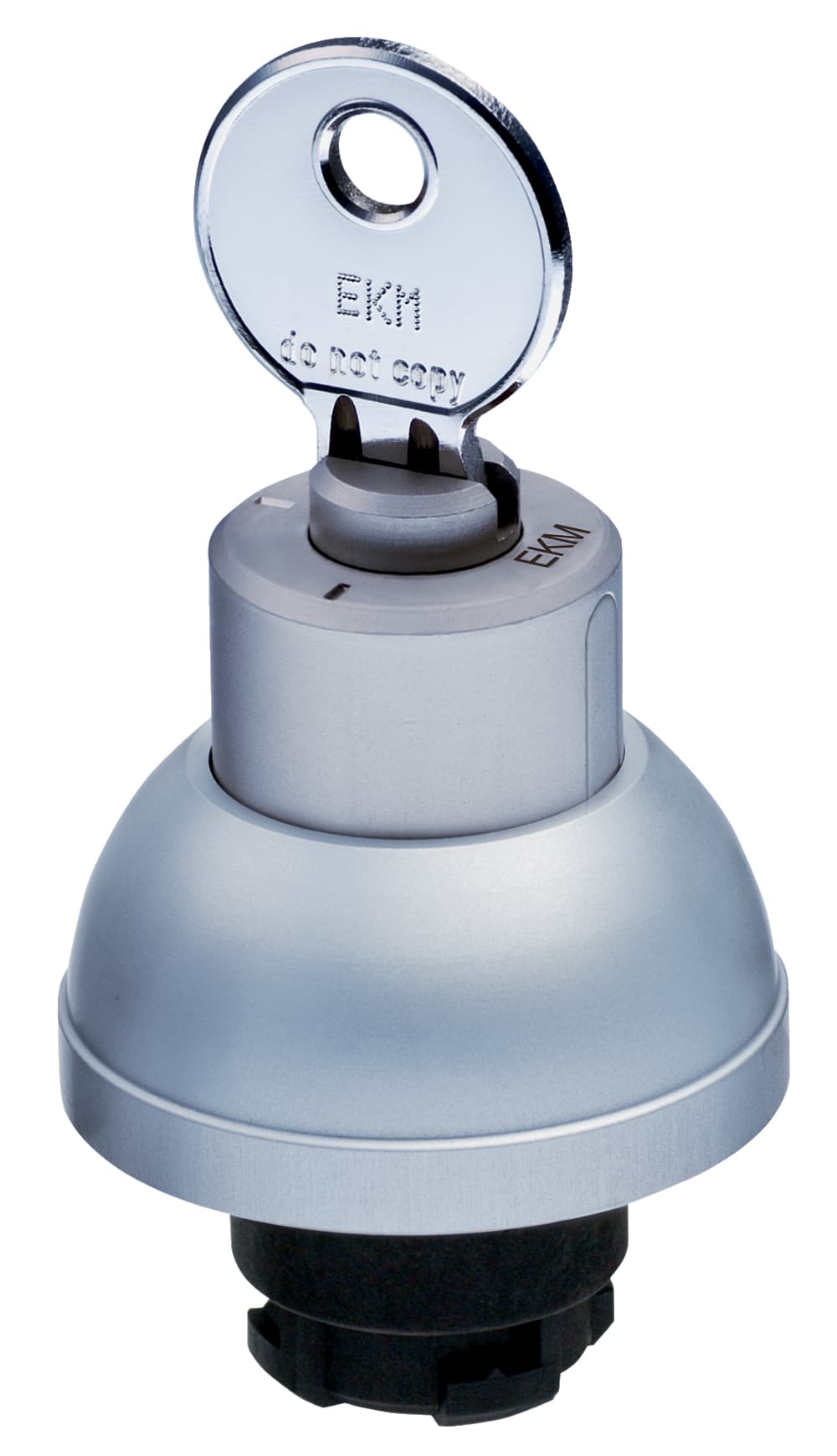

RST21S1 Schmersal - Keyed Selector Switch
About the manufacturer: Schmersal is one of the manufacturers that offers Key Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RST21S1 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the front ring Aluminium
- Gross weight 100 g
- Touch position right
- diameters for the cylinder lock 22 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Number of the touch position 2
- Diameter of the front ring 39.5 mm
- Height with key inserted 58 mm
- Sealing type Membrane, Lip gaskets, Form seals
- Colour of the front ring Silver
- Key withdrawal position Position 0
- Switching angle, right 55 °
- Thickness of the front panel, maximum 6 mm
- Ambient temperature, maximum +75 °C
- Colour of the cylinder lock Silver
- Probing possible Yes
- Tightening torque of the screw 0.6 Nm
- Thickness, of the front panel, minimum 1 mm
- Versions Key - Selector switch - Front plate mounting
- Fully insulated Yes
- Diameter total 39.5 mm
- Spacing 50 x 60 mm
- Restistance to shock 50 g
- Material of the cylinder lock Steel
- Number of plunger 1
- Mounting Mounting flange EFM
- Degree of protection IP65
- Installation conditions (mechanical) arbitrarily
- Unlocking Rotating unlatcher
- Mechanical life, minimum 300,000 Operations
- Diameter hole 22.3 mm
- Ambient temperature, minimum +0 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RST21S1 Description
RST21S1 Schmersal - Keyed Selector Switch
Related documents RST21S1 Specs
