RDMWS Schmersal Pushbuttons
Part#:RDMWS
Manufacturer:Schmersal
Alt. Part#:101188261
Product Lifecycle:Active
Get a quick Quote!

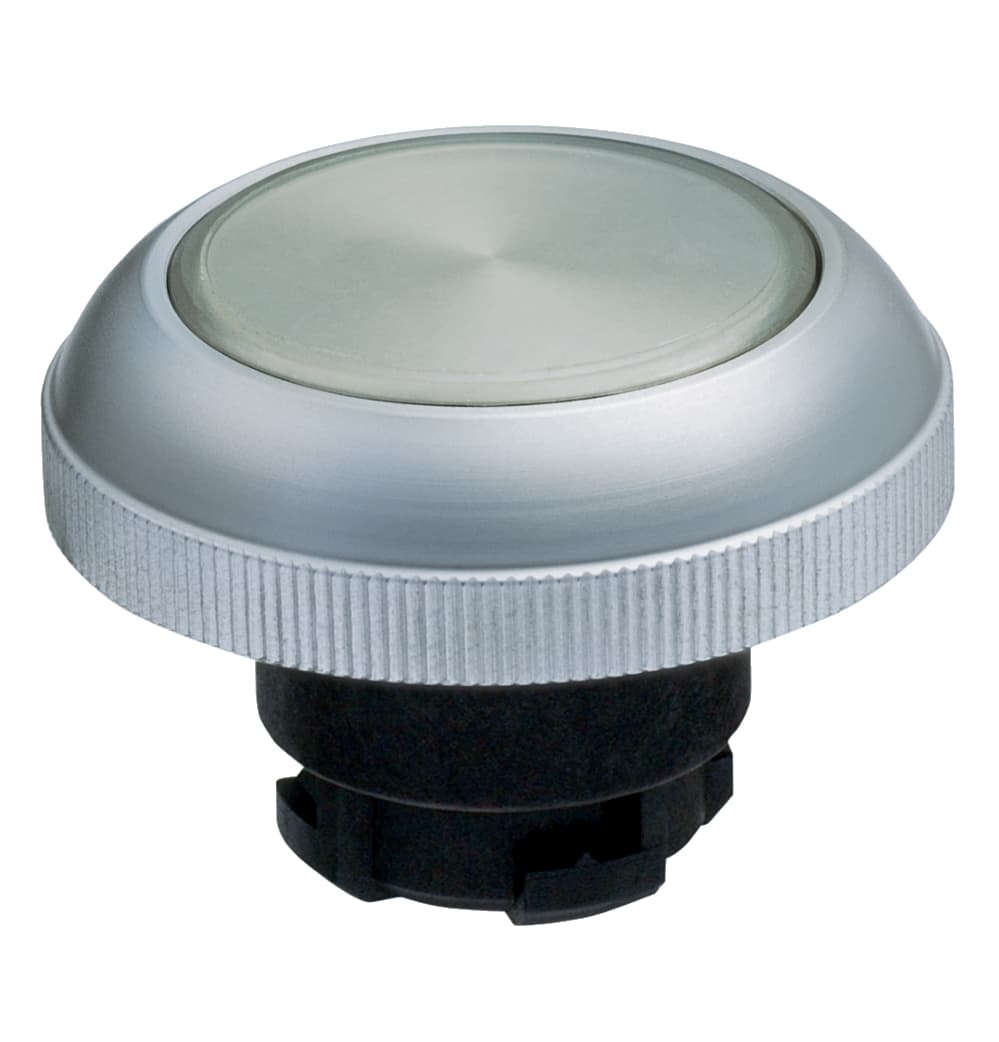

RDMWS Schmersal - Command and signalling devices; "R" program; Push button with membrane; Symbols still clearly visible under transparent membrane
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDMWS Schmersal price in the box on the right side or send a quick quote.
Product Details
- Sealing type Membrane, Lip gaskets, Form seals
- Standards EN 60947-5-1, IEC/EN 60947-1
- Mechanical life, minimum 1,000,000 Operations
- Tightening torque of the screw 0.6 Nm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Material of the front ring Aluminium
- Membrane Yes
- Actuating stroke 4 mm
- Height 12 mm
- Diameter hole 22.3 mm
- Ambient temperature, maximum +75 °C
- Switching frequency 1,200 /h
- Installation conditions (mechanical) arbitrarily
- Mounting flange Yes
- Fully insulated Yes
- Diameter of the front ring 39.5 mm
- Thickness of the front panel, maximum 6 mm
- Versions Embeddable button - Front plate mounting
- Gross weight 40 g
- Unlocking without
- Diameter total 39.5 mm
- Degree of protection IP65
- Design Round
- Colour of the front ring Silver
- Actuating force, approx. 2 N
- Height of touch surface 1.5 mm
- Spacing 40 x 50 mm
- Restistance to shock 50 g
- Material of the operators Aluminium
- Colour of the operating element White
- Probing possible Yes
- Mounting Mounting flange EFM
- Diameter of touch surface 28 mm
- Thickness, of the front panel, minimum 1 mm
- Ambient temperature, minimum -25 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RDMWS Description
RDMWS Schmersal - Command and signalling devices; "R" program; Push button with membrane; Symbols still clearly visible under transparent membrane
