RDMBL Schmersal Pushbuttons
Part#:RDMBL
Manufacturer:Schmersal
Alt. Part#:101188271
Product Lifecycle:Active
Get a quick Quote!

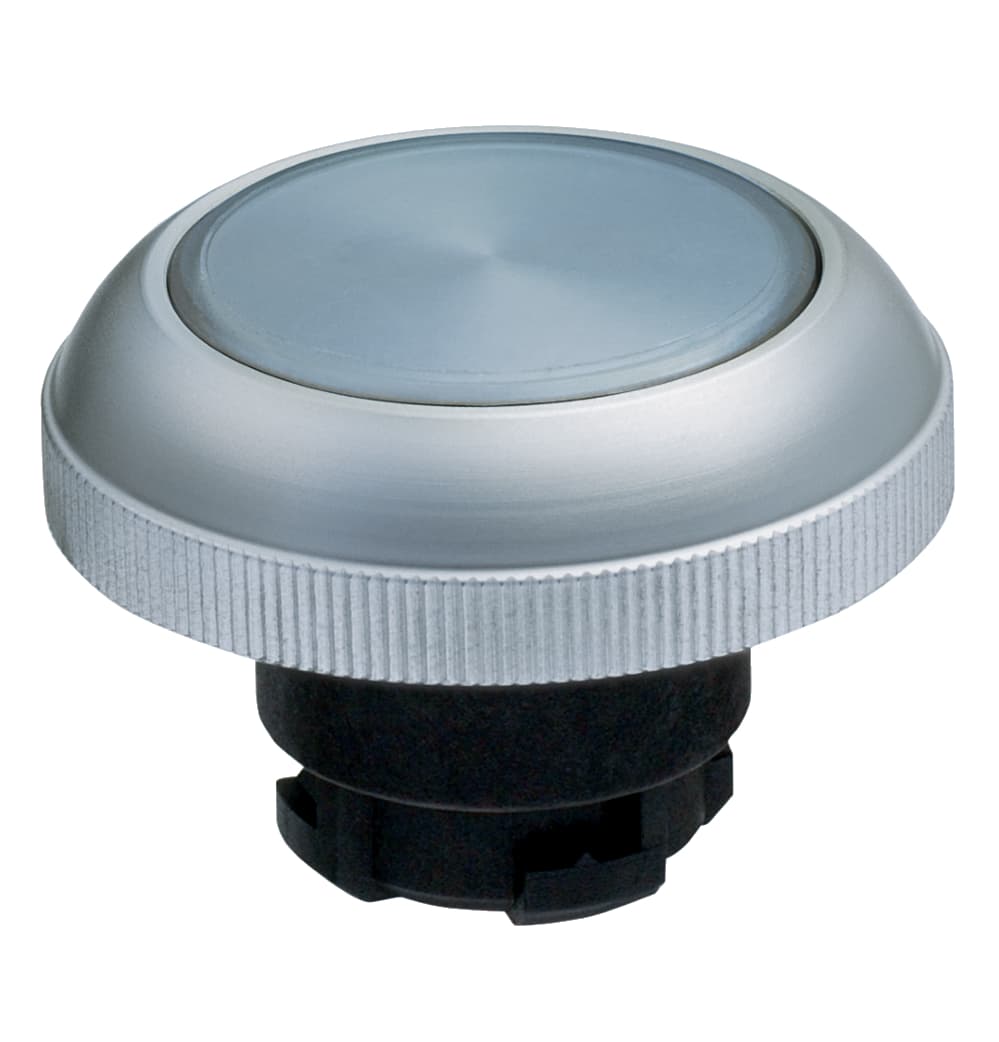

RDMBL Schmersal - Automation technology; Command and signalling devices; Push button with membrane; Symbols still clearly visible under transparent membrane
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDMBL Schmersal price in the box on the right side or send a quick quote.
Product Details
- Membrane Yes
- Diameter total 39.5 mm
- Degree of protection IP65
- Design Round
- Gross weight 40 g
- Tightening torque of the screw 0.6 Nm
- Spacing 40 x 50 mm
- Switching frequency 1,200 /h
- Colour of the front ring Silver
- Mechanical life, minimum 1,000,000 Operations
- Diameter of touch surface 28 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Standards EN 60947-5-1, IEC/EN 60947-1
- Material of the front ring Aluminium
- Actuating stroke 4 mm
- Thickness, of the front panel, minimum 1 mm
- Installation conditions (mechanical) arbitrarily
- Probing possible Yes
- Height 12 mm
- Thickness of the front panel, maximum 6 mm
- Sealing type Membrane, Lip gaskets, Form seals
- Versions Embeddable button - Front plate mounting
- Fully insulated Yes
- Mounting Mounting flange EFM
- Diameter of the front ring 39.5 mm
- Restistance to shock 50 g
- Colour of the operating element Blue
- Unlocking without
- Height of touch surface 1.5 mm
- Ambient temperature, minimum -25 °C
- Material of the operators Aluminium
- Mounting flange Yes
- Actuating force, approx. 2 N
- Diameter hole 22.3 mm
- Ambient temperature, maximum +75 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RDMBL Description
RDMBL Schmersal - Automation technology; Command and signalling devices; Push button with membrane; Symbols still clearly visible under transparent membrane
