86183 Murr Elektronik General Purpose Transformers
Part#:86183
Manufacturer:Murr Elektronik
Product Lifecycle:Active
Get a quick Quote!

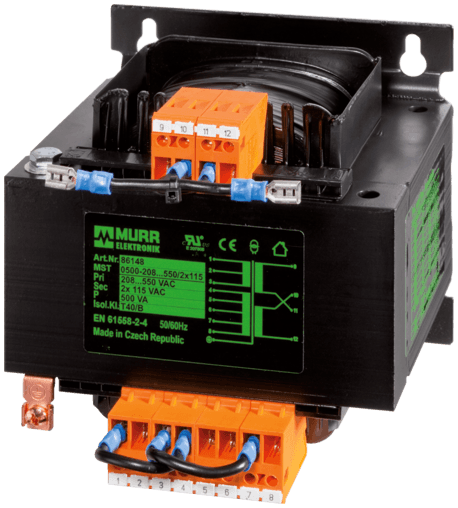

86183 Murrelektronik - MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER, P: 100VA IN: 208...550VAC OUT: 24VAC, For screw and DIN-rail mounting
About the manufacturer: Murr Elektronik is one of the manufacturers that offers General Purpose Transformers that you can order at marketplace.quotebeam.com. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.
Check out the 86183 Murr Elektronik price in the box on the right side or send a quick quote.
Product Details
- Weight2300 g
- SeriesTransformators/Power Supplies
- Test isolation voltage 6.3 kV (prim./sec.)
- Input current 0.57 A (208 V AC); 0.21 A (550 V AC)
- Input voltage 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550 V AC
- Short-circuit current 7.6 A (208 V AC); 2.9 A (550 V AC)
- Dimensions H×W×D 88×84×93 mm
- Mounting method Key-hole mounting
- Frequency 50...60 Hz
- Output rating 100 VA
- Product article number of manufacturer 86183
- Drill hole Ø 4.8×8.4 mm
- Temperature range -20...+40 °C (storage temperature -40...+80 °C)
- Output voltage 24 V AC
- Standards EN 61558-1, EN 61558-2-6, EN 62041 category 0
- Inrush current 9.7 A (208 V AC); 3.7 A (550 V AC)
- Fixing centers a×b×c 64.5×64×4.8 mm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
86183 Description
86183 Murrelektronik - MTS 1-PHASE CONTROL AND ISOLATION TRANSFORMER, P: 100VA IN: 208...550VAC OUT: 24VAC, For screw and DIN-rail mounting
