K1069371 Mersen Electronic Components
Part#:K1069371
Manufacturer:Mersen
Alt. Part#:9008567015261
Product Lifecycle:Active
Get a quick Quote!

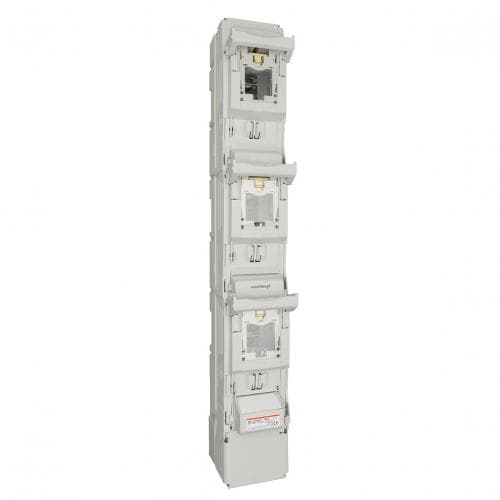

MULTIVERT 1 - 160A, single pole switching AC 800V, V-terminal
About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the K1069371 Mersen price in the box on the right side or send a quick quote.
Product Details
- Switchability 1 x triple pole, 3 x single pole
- Rated Duty uninterrupted duty
- Sell Pack Width 3.94 in
- Comments Cable termination components : V-terminal for V-terminal clamps size 1,2,3
- Fuse Size 1
- Power Dissipation by Ith without Fuse-Links 15
- Number of Poles 3-Pole
- Sell Pack Weight 9.656 lb
- Short Circuit Current Rating (SCCR) Ue=AC 800 V; Ie=160 A 10kA
- Max Power dissipation of Fuse Links Pn 23
- Product Width 3.86 in
- ROHS Compliant Yes
- Rated Insulation Voltage 1000 V
- Product Height 26.97 in
- Sell Pack Length 27.09 in
- Catalogue No. 8.120.000
- Frequency 50...60 Hz
- Installation Mounting Bus bar system 185 mm
- Rated voltage AC IEC 800 V
- Conventional Free Air thermal Current With Fuse-Links Ith 160 A
- Sell Pack Quantity 1 Each
- Utilization Category AC 21 B @ Ue = 800 V; Ie = 160 A
- Rated Impulse Withstand Voltage 8 kV
- Sell Pack Height 7.68 in
- Product Length 7.48 in
- Ampere Rating 160 A
- Degree of Pollution 3
- Product Weight 9.656 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K1069371 Specs
1-year warranty
