K1062793 Mersen Fuse Holders
Part#:K1062793
Manufacturer:Mersen
Alt. Part#:3605340603125
Product Lifecycle:Active
Get a quick Quote!

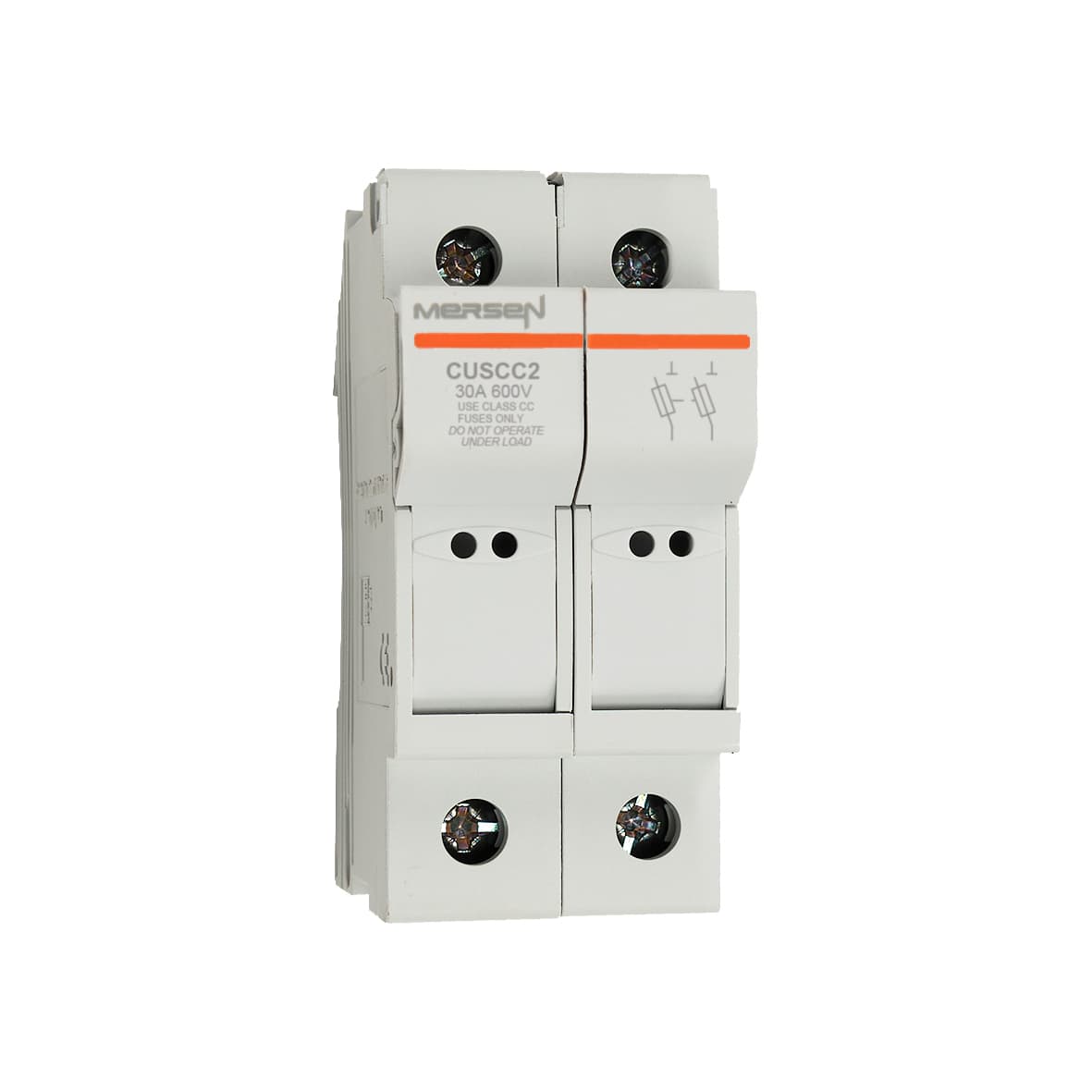

K1062793 Mersen - Fuse Holder Modulostar® 600VAC 600VDC Class CC 2-Pole
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the K1062793 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles2 Pole
- Current Rating30 A
- Voltage600 VAC
- Weight92.162 g
- Rated voltage AC UL 600 V
- Design Details CUSCC double pole
- Product Weight 0.265 lb
- Sell Pack Width 3.54 in
- Rated voltage DC UL 600 V
- Torque Rating 17.7 lb-in
- Product Length 2.41 in
- Sell Pack Height 2.76 in
- Catalogue No. CUSCC2
- Conventional Free Air thermal Current With Fuse-Links Ith 30 A
- Product Height 3.12 in
- Short Circuit Current Rating (SCCR) 200 kA
- Installation Mounting DIN rail acc. EN 60715
- Sell Pack Weight 1.587 lb
- ROHS Compliant Yes
- Number of Poles 2-Pole
- Product Width 1.38 in
- Sell Pack Length 8.86 in
- Ampere Rating 30 A
- Fuse Class Class CC
- Comments Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
- Sell Pack Quantity 6 EACH
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K1062793 Description
K1062793 Mersen - Fuse Holder Modulostar® 600VAC 600VDC Class CC 2-Pole | Mersen’s innovative Modulostar CUSCC fuse holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger).
Modulostar CUSCC fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Made of tough and durable thermoplastic or thermoset material.
Recommended for use with Mersen Class CC fuse-links: ATDR, ATMR, and ATQR. | Features: *Modular design
*Compact design for space saving
*DIN rail mounting
*Degree of protection: IP20
*Finger safe
*Easy access to the fuse
*Lockable without accessory
*Sealable in closed & open position
*Optional visual blown fuse indicator
*Multi-pole assembly kit available
*Plastic material UL94V2 mini
*Plastic material R22HL2 for railway application
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 600V for protection of motors, transformers, low voltage distribution, control circuits, drive protection
*Non-load operation
Related documents K1062793 Specs
