K1062724 Mersen Fuse Holders
Part#:K1062724
Manufacturer:Mersen
Alt. Part#:3605340602852
Product Lifecycle:Active
Get a quick Quote!

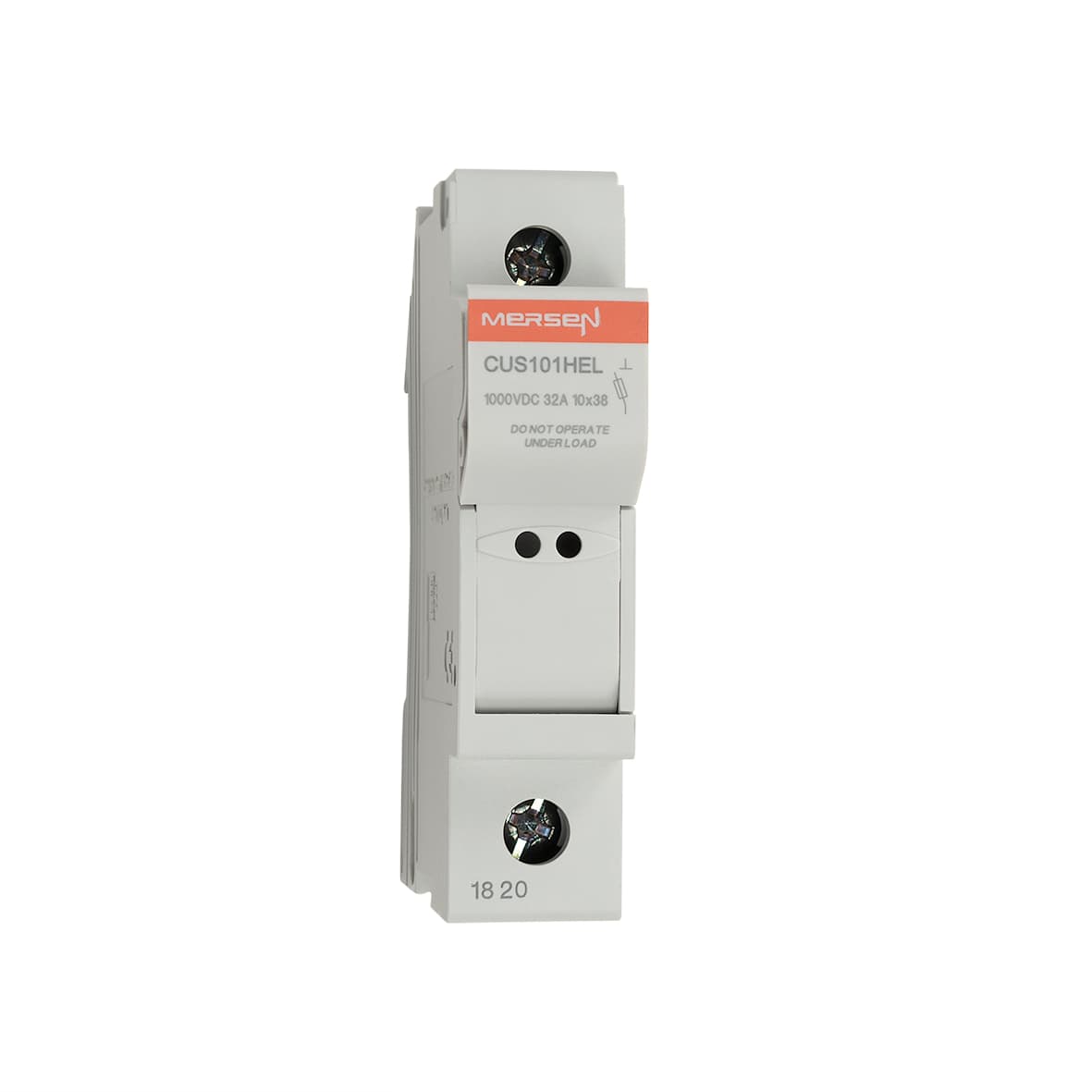

K1062724 Mersen - Fuse Holder IEC+UL/CSA Size 10x38 1000VDC IEC 1000VDC UL 1-Pole DIN Rail mounting
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at marketplace.quotebeam.com. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the K1062724 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles1 Pole
- Current Rating32 A
- Voltage1000 VDC
- Weight44.946 g
- Ampere Rating 32 A
- Rated voltage DC UL 1000 V
- Torque Rating 17.7 lb-in
- Number of Poles 1-Pole
- ROHS Compliant Yes
- Installation Mounting DIN rail acc. EN 60715
- Catalogue No. CUS101HEL
- Conventional Free Air thermal Current With Fuse-Links Ith 32 A
- Sell Pack Length 8.86 in
- Short Circuit Current Rating (SCCR) 100 kA
- Rated Insulation Voltage 1000 V
- Sell Pack Quantity 12 EACH
- Fuse Size 10x38
- Design Details CUS101HEL single pole
- Sell Pack Width 3.54 in
- Rated voltage DC IEC 1000 V
- Max Power dissipation of Fuse Links Pn 3 W
- Comments Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended
- Sell Pack Height 2.76 in
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K1062724 Description
K1062724 Mersen - Fuse Holder IEC+UL/CSA Size 10x38 1000VDC IEC 1000VDC UL 1-Pole DIN Rail mounting | The innovative and comprehensive Modulostar® range of Mersen fuse-holders.
CUS101HEL series are specially designed for the protection of PV systems.
Modular fuse-holders are finger-safe under IEC and UL standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders CUS101HEL are available in 1 pole, with or without visual blown fuse indicator.
Modulostar® range is made of tough and durable thermoplastic material.
They are especially recommended to be used in combination with Mersen fuse-links HP6M and HP10M. | Features: *Modular design
*Compact design for space saving
*DIN rail mounting
*Degree of protection: IP20
*Finger safe
*Easy access to the fuse
*Lockable without accessory
*Sealable in closed & open position
*Optional visual blown fuse indicator
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C
*Very low power dissipation | Application: *All photovoltaic applications up to 1000V
*Combiner box applications
*PV string/array level protection
*Inverters
Related documents K1062724 Specs
