WLS70XW900DPWM Banner Signal Beacons
Part#:WLS70XW900DPWM
Manufacturer:Banner
Alt. Part#:809478
Product Lifecycle:Active
Get a quick Quote!
WLS70 Sealed Work Light; Length: 900 mm; PWM Dimming; Voltage: 12-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70XW900DPWM Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2571.86664 g
- Country Of OriginMX
- Number of Colors / Segments 1
- Cable Length (m) 2
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 965.3
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Max Current Color (mA) 320
- Min Op. Temperature (°C) -40
- IO Link No
- Illumination Yes
- Dimming Option PWM
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Color Option 1 White
- Supply Voltage 10-30 V dc
- Feature: Quick Disconnect No
- Lumens Color 1 4050
- Product Size (mm) 70
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Housing Style Linear Strip
- Illuminated Length (LxWxH mm) 898
- Connection Cable
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Max Op. Temperature (°C) 50
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Secondary Material Metal
- Wireless No
- Power DC
- Animation Option 1 Solid On
- Environmental Rating IP65
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS70XW900DPWM Description

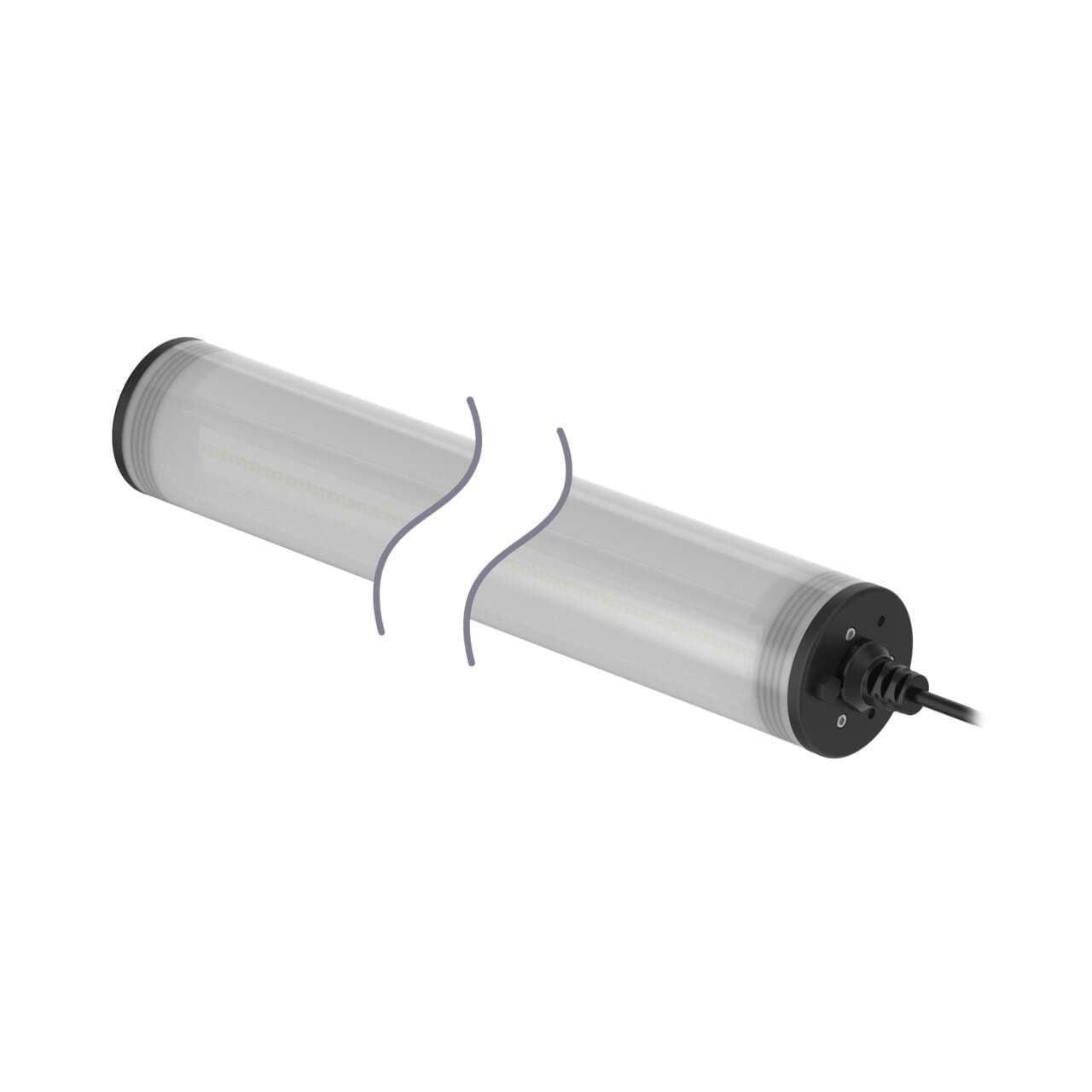

Banner Engineering WLS70XW900DPWM is a task light designed for industrial applications, featuring LED technology in a diffused window, PWM dimmable, with 1-color Daylight White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are 900mm in length and 70mm in diameter, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, ensuring easy installation. The cylindrical linear strip shape is designed to fit a variety of spaces, and it is rated with an IP65 degree of protection, making it suitable for use in environments with dust and water exposure. This task light can operate in ambient air temperatures ranging from -40°C to +50°C.
