WLS70ZXW300DA Banner Signal Beacons
Part#:WLS70ZXW300DA
Manufacturer:Banner
Alt. Part#:809464
Product Lifecycle:Active
Get a quick Quote!
WLS70 Sealed Work Light; Length: 300 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70ZXW300DA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight2358.6784 g
- Country Of OriginMX
- Mounting Thread No Thread
- Power AC
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Min Op. Temperature (°C) -40
- Illumination Yes
- Product Size (mm) 70
- Illuminated Length (LxWxH mm) 302
- Secondary Material Metal
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Supply Voltage 100-277 V ac
- Feature: Quick Disconnect No
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Number of Colors / Segments 1
- Connection Cable
- Environmental Rating IP65
- Feature: Hazardous Area No
- Cable Length (m) 2
- Lumens Color 1 1350
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 369.8
- Feature: Chemical Resistant No
- Power Source AC
- Color Option 1 White
- Max Current Color (mA) 120
- Storage Temp (°C) -40 to 70
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option 0-10 V dc
- Max Op. Temperature (°C) 50
- Feature: Audible No
- IO Link No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS70ZXW300DA Description

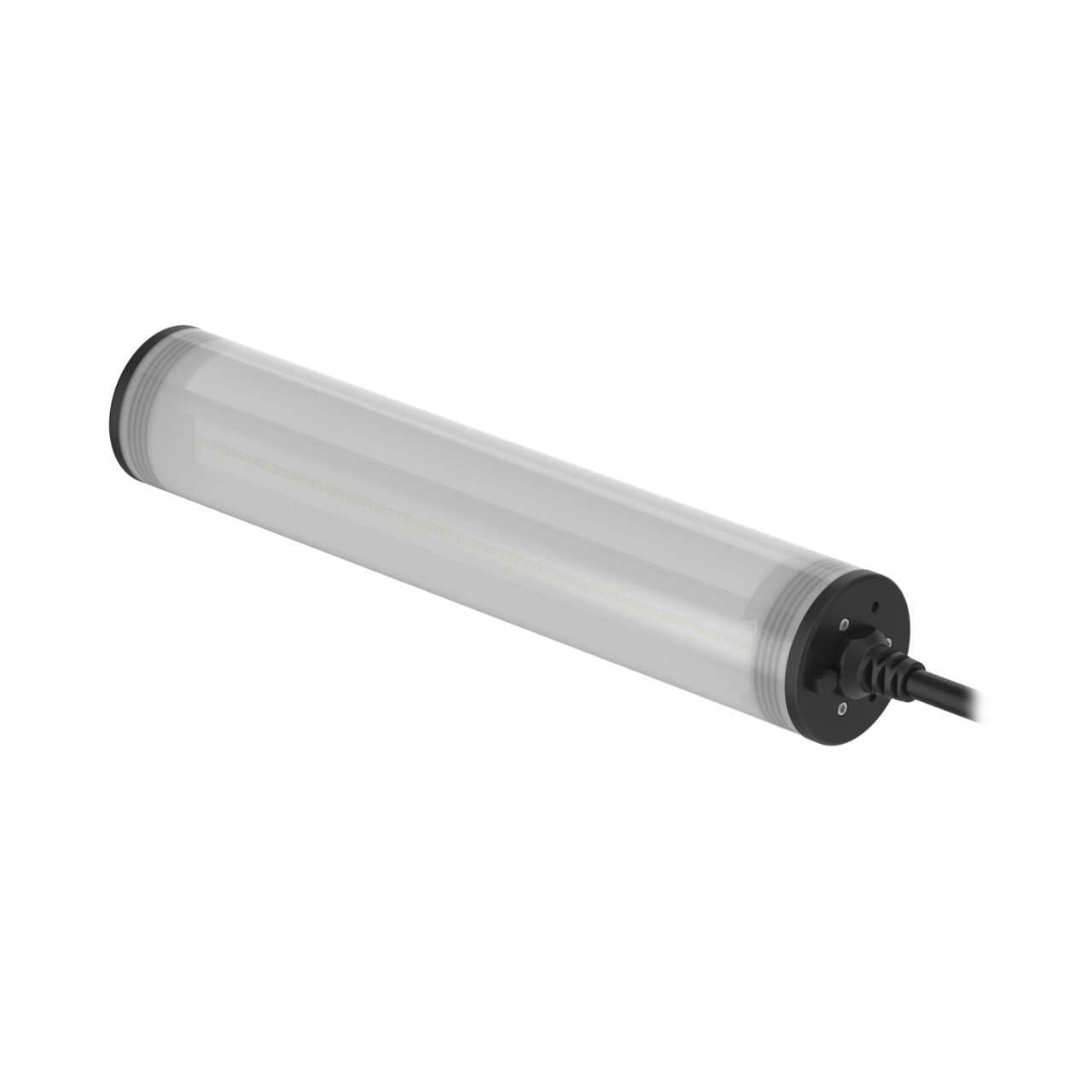

Banner Engineering WLS70ZXW300DA is a task light designed for industrial applications, featuring LED technology with a single-color Daylight White (W) illumination. It is equipped with a diffused window and offers 0-10Vdc analog dimming control input for adjustable lighting. This model operates on a supply voltage range of 100Vac-277Vac, accommodating multiple standard voltages such as 120Vac, 220Vac, 230Vac, and 240Vac. The light measures 300mm in length and 70mm in diameter, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-wired with a 2m / 6.5ft 5-wire cable featuring bare end flying leads for easy installation. The cylindrical linear strip shape is designed for versatile mounting options, and it boasts an IP65 degree of protection, making it suitable for use in environments with dust and water exposure. The WLS70ZXW300DA can operate in ambient air temperatures ranging from -40°C to +50°C.
