WLS70XW1200DPWMQ Banner Signal Beacons
Part#:WLS70XW1200DPWMQ
Manufacturer:Banner
Alt. Part#:809483
Product Lifecycle:Active
Get a quick Quote!
WLS70 Sealed Work Light; Length: 1200 mm; PWM Dimming; Voltage: 18-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70XW1200DPWMQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3107.1052 g
- Country Of OriginMX
- Power DC
- Animation Option 1 Solid On
- Min Op. Temperature (°C) -40
- IO Link No
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 1263.0
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Lumens Color 1 5400
- Environmental Rating IP65
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Illumination Yes
- Max Current Color (mA) 420
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Storage Temp (°C) -40 to 70
- Wireless No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Max Op. Temperature (°C) 50
- Power Source DC
- Connection Integral QD
- Number of Input Pins/Conductors 4
- Secondary Material Metal
- Product Size (mm) 70
- Illuminated Length (LxWxH mm) 1196
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Housing Style Linear Strip
- Color Option 1 White
- Dimming Option PWM
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS70XW1200DPWMQ Description

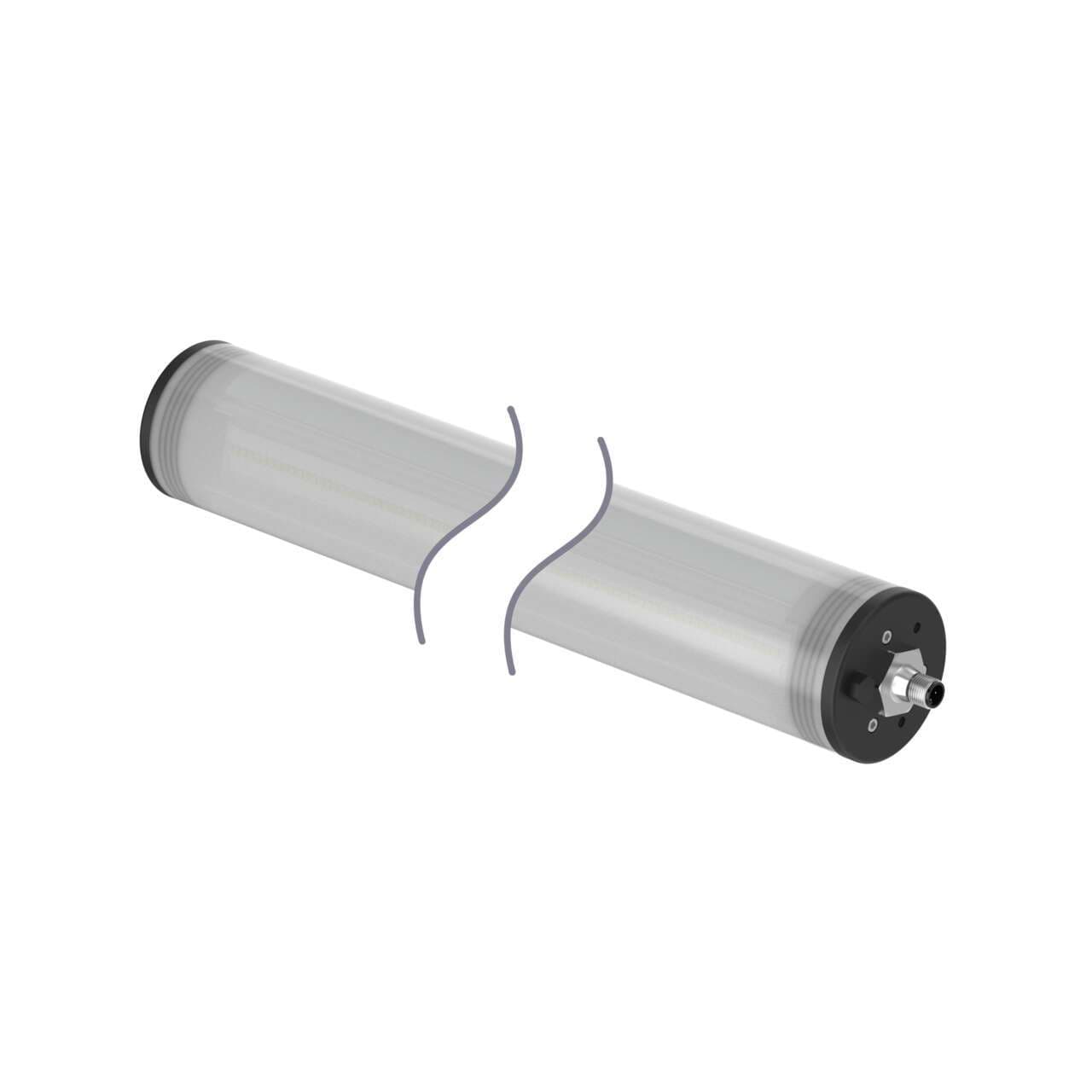

Banner Engineering WLS70XW1200DPWMQ is a task light designed for industrial applications, featuring LED technology in a cylindrical linear strip form. This model provides 1-color Daylight White (W) LED illumination through a diffused window, and it is PWM dimmable, allowing for adjustable light intensity. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this light are L1200mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLS70XW1200DPWMQ is designed to withstand ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65, making it suitable for a variety of challenging environments.
