WLS70XW600DPWMQ Banner Signal Beacons
Part#:WLS70XW600DPWMQ
Manufacturer:Banner
Alt. Part#:809481
Product Lifecycle:Active
Get a quick Quote!
WLS70 Sealed Work Light; Length: 600 mm; PWM Dimming; Voltage: 12-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS70XW600DPWMQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1610.2516 g
- Country Of OriginMX
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Max Op. Temperature (°C) 50
- Wireless No
- Illuminated Length (LxWxH mm) 600
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 667.6
- Feature: Audible No
- Product Size (mm) 70
- Lumens Color 1 2700
- Secondary Material Metal
- Power Source DC
- Color Technology Standard LED
- Supply Voltage 10-30 V dc
- Feature: Quick Disconnect Yes
- Power DC
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Illumination Yes
- Max Current Color (mA) 220
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Housing Style Linear Strip
- Dimming Option PWM
- Environmental Rating IP65
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS70XW600DPWMQ Description

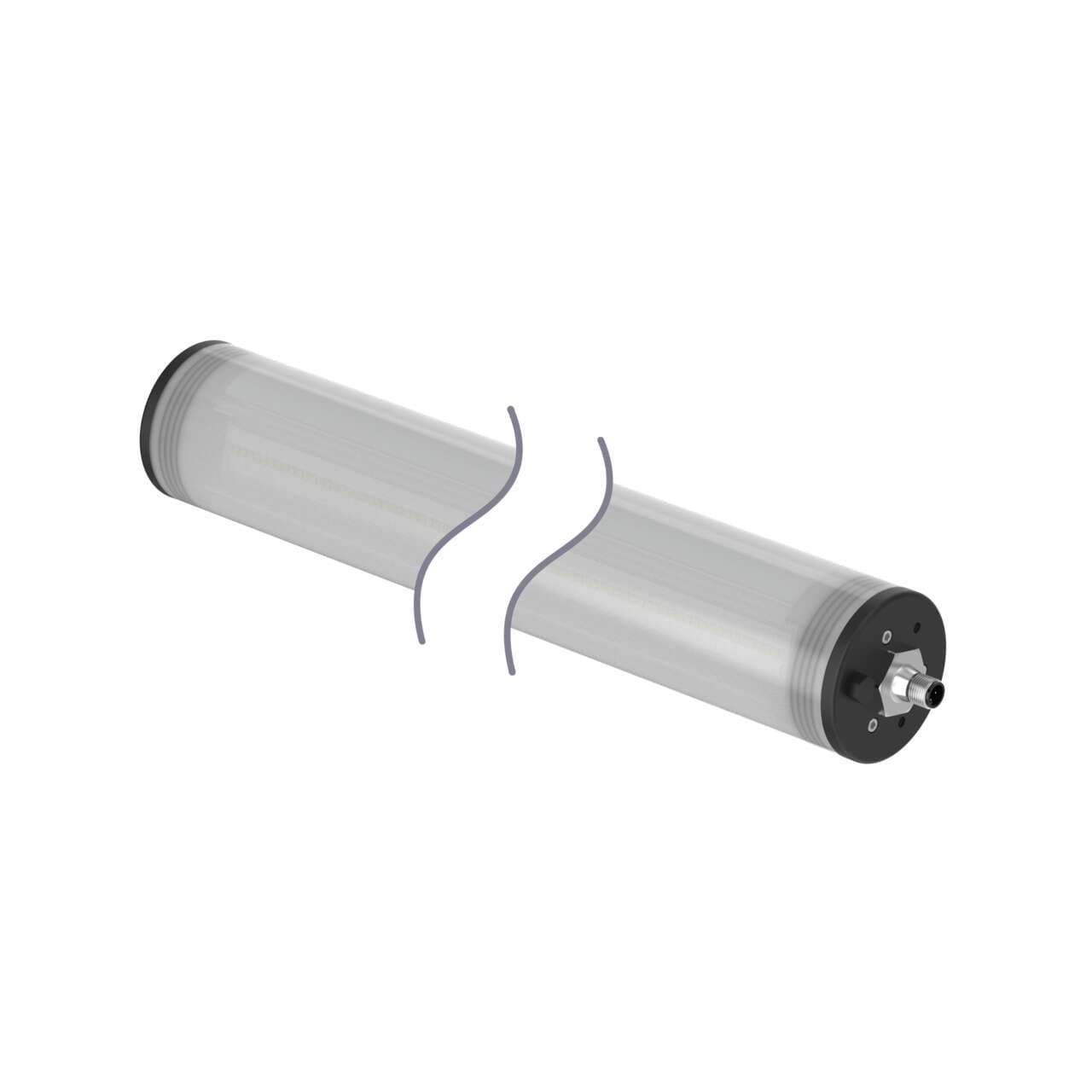

Banner Engineering WLS70XW600DPWMQ is a task light designed for industrial applications, featuring LED technology in a cylindrical linear strip form. This product offers daylight white (W) LED illumination through a diffused window, with PWM dimmable functionality to adjust brightness levels. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this light are L600mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The design is rated IP65 for protection against dust and water ingress, making it suitable for a wide range of environments with ambient air temperatures ranging from -40°C to +50°C.
