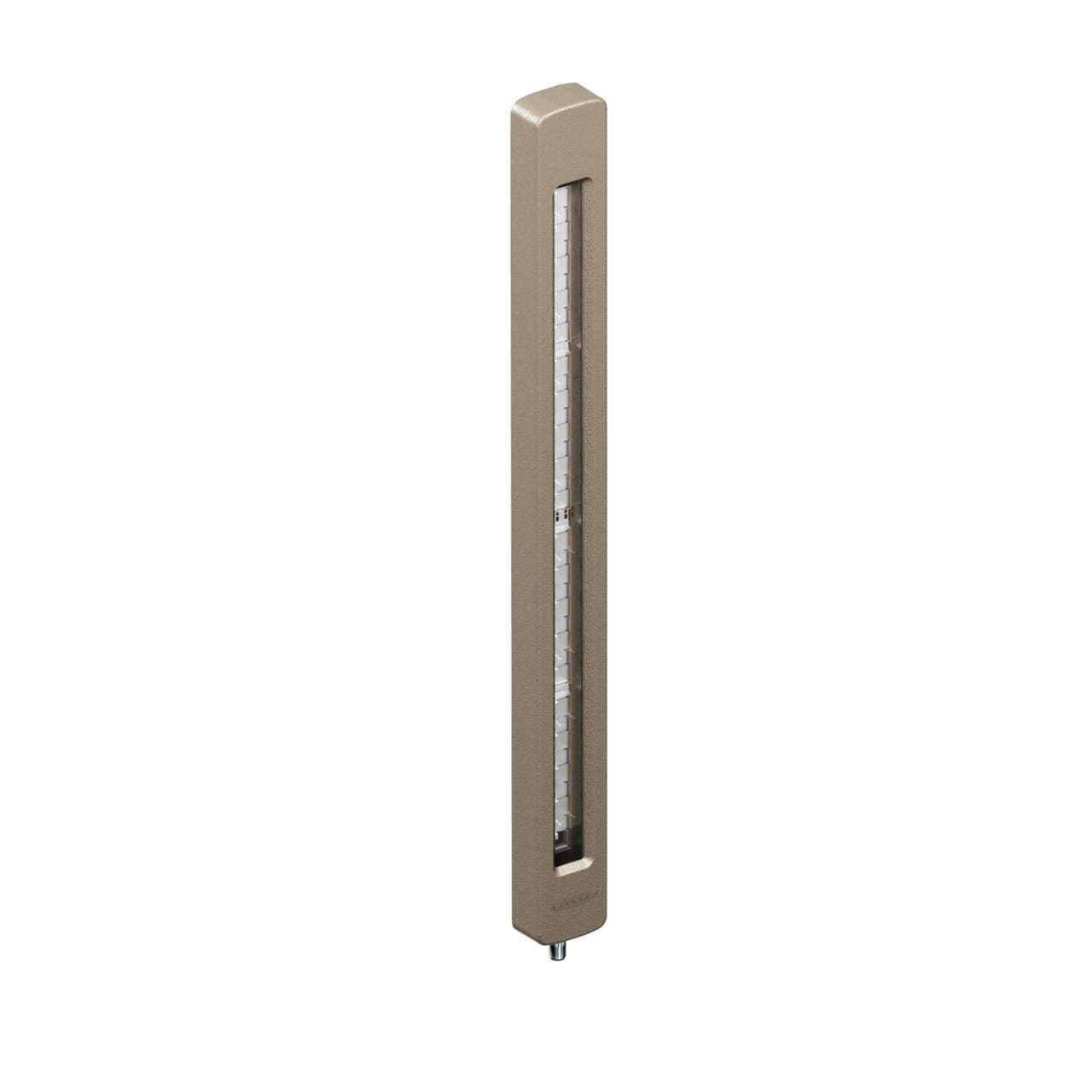

WLC60XW640GAQ Banner Light Bars

Banner WLC60XW640GAQ WLC60 Work Light; Length: 640 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 4-pin M12 Integral QD; Side exit
Banner

Part#:WLC60XW640GAQ

Manufacturer:Banner

Alt. Part#:86887

Product Lifecycle:Active

Get a quick Quote!

WLC60 Work Light; Length: 640 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 4-pin M12 Integral QD; Side exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60XW640GAQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1814.368 g
  • Country Of OriginMX
  • Mounting Thread
    No Thread
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Max Op. Temperature (°C)
    70
  • Wireless
    No
  • Illumination
    Yes
  • Lumens Color 1
    2600
  • Supply Voltage
    12-30 V dc
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    659.4 x 60.9 x 31.3
  • Feature: Washdown Rated
    Yes
  • Cable Length (m)
    2
  • Connection
    Integral QD
  • Primary Window Material
    Glass Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Power Source
    DC
  • Number of Input Pins/Conductors
    4
  • Modbus RTU
    No
  • Number of Colors / Segments
    1
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Chemical Resistant
    Yes
  • Color Option 1
    White
  • Dimming Option
    High-Low-Off
  • Feature: Audible
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Storage Temp (°C)
    -40 to 70
  • Housing Style
    Linear Strip
  • Color Technology
    Standard LED
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Power
    DC
  • Product Size (mm)
    60
  • Illuminated Length (LxWxH mm)
    517.6
  • Feature: Hazardous Area
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLC60XW640GAQ Description

Banner Engineering WLC60XW640GAQ is a task light designed for industrial heavy-duty applications, featuring LED area lighting with 1-color Cool White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L640mm x W24.5mm, constructed with a clear glass window and a nickel-plated aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection, and its linear strip lighting shape allows for versatile installation options. This model offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can be mounted at the base and is designed to operate within an ambient air temperature range of -40°C to +70°C. The WLC60XW640GAQ includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 2600 lm (lumens), ensuring bright and effective illumination for a variety of tasks.

Related documents WLC60XW640GAQ Specs

WLC60XW640GAQ 173718.pdf
