WLC60XW340GAPWM Banner Electronic Components

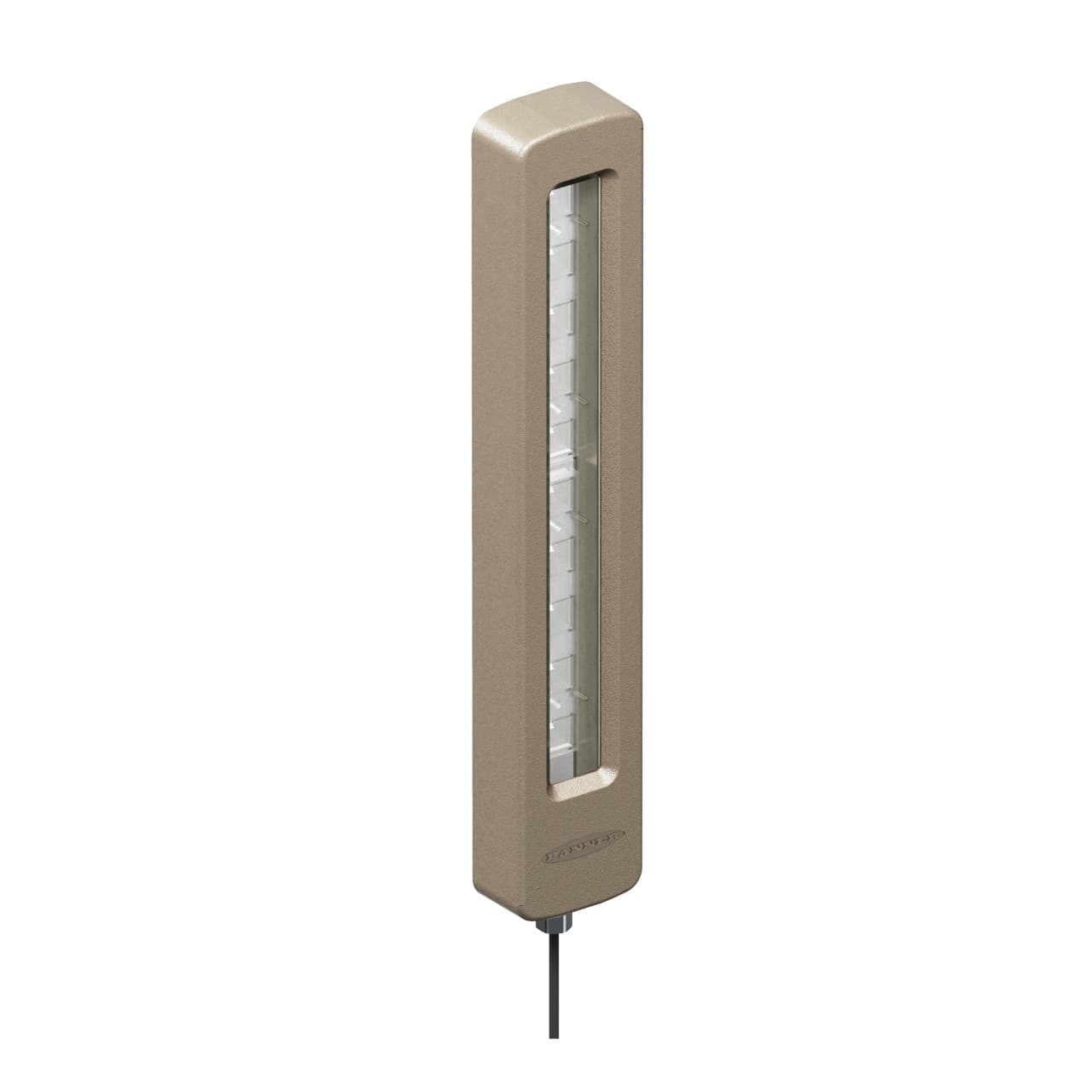

Banner WLC60XW340GAPWM Banner Engineering WLC60XW340GAPWM is a task light designed for industrial heavy-duty applications, featuring LED area lighting in a 1-color Cool White (W) illumination. This model, part of the PWM dimmable series, is equipped with a glass window side connection and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L340mm x W24.5mm and is constructed with a clear glass window and a nickel-plated aluminum housing. The light is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, and it has a linear strip lighting shape. It offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various challenging environments. The mounting mode is base type, and it can operate within an ambient air temperature range of -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 1300 lm (lumens).
Banner

Part#:WLC60XW340GAPWM

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering WLC60XW340GAPWM is a task light designed for industrial heavy-duty applications, featuring LED area lighting in a 1-color Cool White (W) illumination. This model, part of the PWM dimmable series, is equipped with a glass window side connection and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L340mm x W24.5mm and is constructed with a clear glass window and a nickel-plated aluminum housing. The light is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, and it has a linear strip lighting shape. It offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for various challenging environments. The mounting mode is base type, and it can operate within an ambient air temperature range of -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 1300 lm (lumens).

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60XW340GAPWM Banner price in the box on the right side or send a quick quote.

Product Details

  • Illumination
    Yes
  • Dimming Option
    PWM
  • Feature: Chemical Resistant
    Yes
  • Wireless
    No
  • Power
    DC
  • Connection
    Cable
  • Physical Dimensions (LxWxH or DxH mm)
    354.1 x 60.9 x 31.3
  • IO Link
    No
  • Power Source
    DC
  • Color Option 1
    White
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Hazardous Area
    No
  • Number of Colors / Segments
    1
  • Animation Option 1
    Solid On
  • Min Op. Temperature (°C)
    -40
  • Mounting Thread
    No Thread
  • Color Technology
    Standard LED
  • Illuminated Length (LxWxH mm)
    254.6
  • Feature: Quick Disconnect
    No
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Lumens Color 1
    1300
  • Primary Window Material
    Glass Clear
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Input Pins/Conductors
    4
  • Feature: Washdown Rated
    Yes
  • Modbus RTU
    No
  • Housing Style
    Linear Strip
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Storage Temp (°C)
    -40 to 70
  • Pro-Editor Compatible (Discrete)
    No
  • Cable Length (m)
    2
  • Product Size (mm)
    60
  • Supply Voltage
    12-30 V dc
  • Max Op. Temperature (°C)
    70
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents WLC60XW340GAPWM Specs

WLC60XW340GAPWM WLC60X_340_-1630953376141.pdf
WLC60XW340GAPWM WLC60X_340_-1630953376144.stp
WLC60XW340GAPWM WLC60 Heavy Duty LED Lights PWM Dimmable -- Datasheet-1630953376147.pdf
