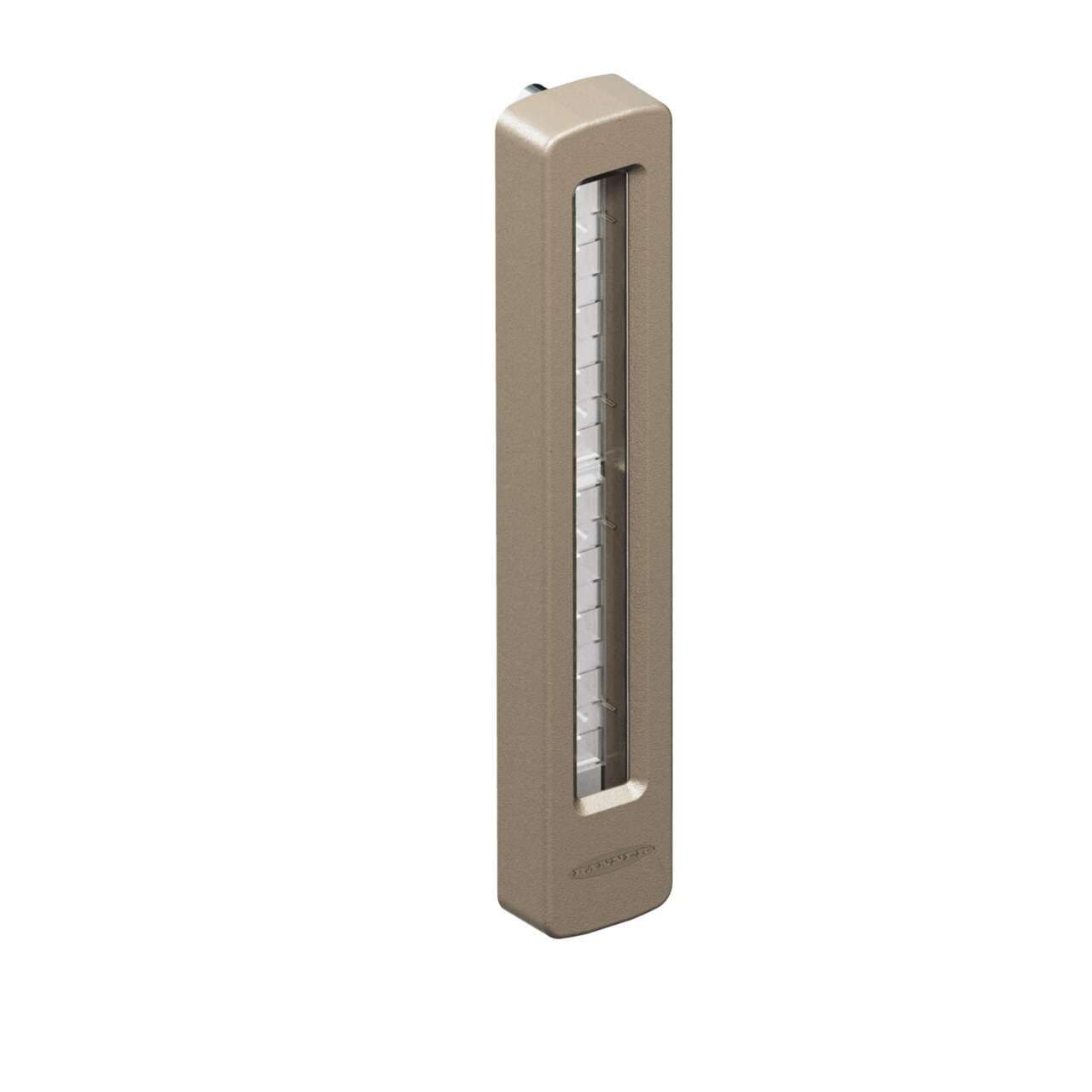

WLC60CW340GARQ Banner Light Bars

Banner WLC60CW340GARQ WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Cascadable; Window: Glass; 4-pin M12 Integral QD; Rear exit
Banner

Part#:WLC60CW340GARQ

Manufacturer:Banner

Alt. Part#:86868

Product Lifecycle:Active

Get a quick Quote!

WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Cascadable; Window: Glass; 4-pin M12 Integral QD; Rear exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60CW340GARQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1020.582 g
  • Country Of OriginUS
  • Illumination
    Yes
  • Housing Style
    Linear Strip
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Max Op. Temperature (°C)
    70
  • Cable Length (m)
    2
  • Connection
    Integral QD
  • Physical Dimensions (LxWxH or DxH mm)
    339.9 x 60.9 x 52.8
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 1
    White
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Power
    DC
  • Number of Input Pins/Conductors
    4
  • Primary Window Material
    Glass Clear
  • Wireless
    No
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Supply Voltage
    12-30 V dc
  • Feature: Washdown Rated
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Mounting Thread
    No Thread
  • Dimming Option
    High-Low-Off
  • Quick Disconnect Type
    M12 (Euro)
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Feature: Chemical Resistant
    Yes
  • Illuminated Length (LxWxH mm)
    254.6
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • Feature: Cascade
    Yes
  • IO Link
    No
  • Product Size (mm)
    60
  • Feature: Quick Disconnect
    Yes
  • Lumens Color 1
    1300

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLC60CW340GARQ Description

Banner Engineering WLC60CW340GARQ is a cascadable industrial heavy-duty LED area light designed for task lighting applications. It features 1-color Cool White (W) LED illumination through a clear glass window and is housed in a nickel-plated aluminum casing. This linear strip lighting operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and offers a luminous flux of 1300 lm (lumens). The dimensions of the light are L340mm x W24.5mm. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The WLC60CW340GARQ is designed for base mounting and boasts a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for challenging environments. It can operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

Related documents WLC60CW340GARQ Specs

WLC60CW340GARQ 173718.pdf
