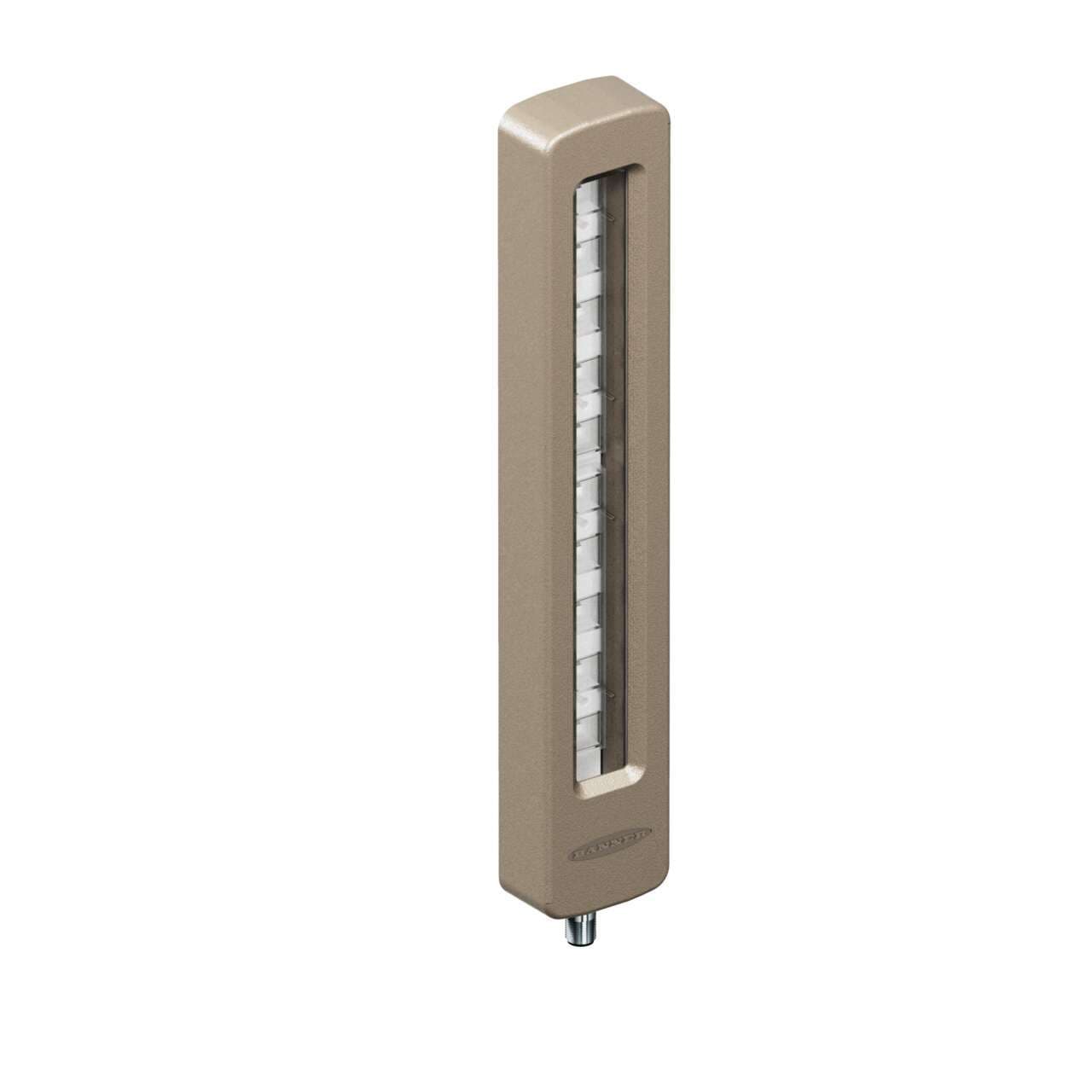

WLC60XW340AQ Banner Light Bars

Banner WLC60XW340AQ WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; 4-pin M12 Integral QD; Side exit
Banner

Part#:WLC60XW340AQ

Manufacturer:Banner

Alt. Part#:86861

Product Lifecycle:Active

Get a quick Quote!

WLC60 Work Light; Length: 340 mm; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Polycarbonate; 4-pin M12 Integral QD; Side exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60XW340AQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight988.83056 g
  • Country Of OriginMX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Feature: Washdown Rated
    Yes
  • Power
    DC
  • Lumens Color 1
    1300
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Housing Style
    Linear Strip
  • Connection
    Integral QD
  • Illuminated Length (LxWxH mm)
    254.6
  • Storage Temp (°C)
    -40 to 70
  • Power Source
    DC
  • Color Option 1
    White
  • Supply Voltage
    12-30 V dc
  • Wireless
    No
  • Number of Colors / Segments
    1
  • Color Technology
    Standard LED
  • Max Op. Temperature (°C)
    70
  • Feature: Quick Disconnect
    Yes
  • Product Size (mm)
    60
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • IO Link
    No
  • Mounting Thread
    No Thread
  • Dimming Option
    High-Low-Off
  • Primary Window Material
    Polycarbonate Clear
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Quick Disconnect Type
    M12 (Euro)
  • Physical Dimensions (LxWxH or DxH mm)
    360.4 x 60.9 x 31.3
  • Feature: Hazardous Area
    No
  • Illumination
    Yes
  • Number of Input Pins/Conductors
    4
  • Feature: Chemical Resistant
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLC60XW340AQ Description

Banner Engineering WLC60XW340AQ is a task light designed for industrial heavy-duty applications, featuring LED area lighting with 1-color Cool White (W) LED illumination. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and has dimensions of L340mm x W24.5mm. The light is constructed with a clear polycarbonate (PC) window and a nickel-plated aluminum housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. This linear strip lighting is designed for base mounting and offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, making it suitable for a wide range of environmental conditions. It can operate in ambient air temperatures ranging from -40°C to +70°C. The WLC60XW340AQ also features 1 x digital input (12Vdc / 24Vdc) for color control and provides a luminous flux of 1300 lm (lumens).

Related documents WLC60XW340AQ Specs

WLC60XW340AQ 173718.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
