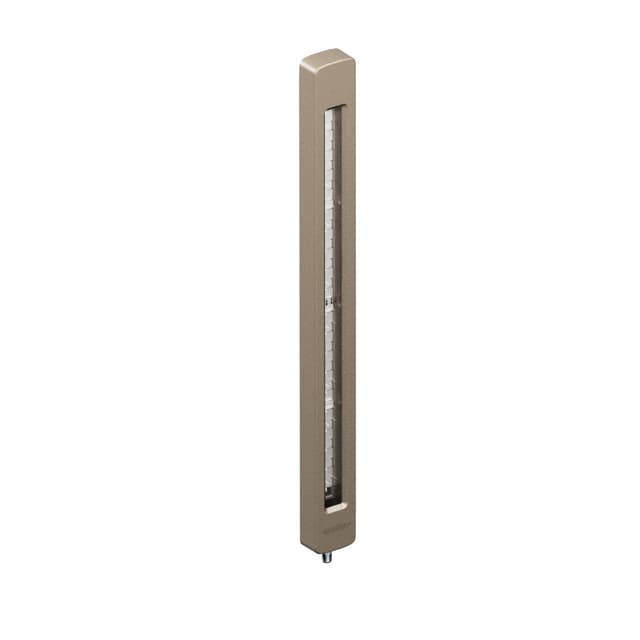

WLC60XW340GFAR Banner Light Bars

Banner WLC60XW340GFAR WLC60 Work Light; Length: 340 mm; Flush Mount; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 2 m (6.5 ft) Integral Cable; Rear exit
Banner

Part#:WLC60XW340GFAR

Manufacturer:Banner

Alt. Part#:86882

Product Lifecycle:Active

Get a quick Quote!

WLC60 Work Light; Length: 340 mm; Flush Mount; Nickel-Plated Aluminum; Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K; Color: White; Window: Glass; 2 m (6.5 ft) Integral Cable; Rear exit

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLC60XW340GFAR Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight1179.3392 g
  • Country Of OriginMX
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    4
  • Feature: Quick Disconnect
    No
  • Illumination
    Yes
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Illuminated Length (LxWxH mm)
    254.6
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Dimming Option
    High-Low-Off
  • Physical Dimensions (LxWxH or DxH mm)
    367.0 x 60.9 x 45.5
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Lumens Color 1
    1300
  • Housing Style
    Linear Strip
  • Connection
    Cable
  • Max Op. Temperature (°C)
    70
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Product Size (mm)
    60
  • Supply Voltage
    12-30 V dc
  • Primary Window Material
    Glass Clear
  • Cable Length (m)
    2
  • Color Option 1
    White
  • Environmental Rating
    IP67; IP68; IP68g; IP69
  • IO Link
    No
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Feature: Audible
    No
  • Animation Option 1
    Solid On
  • Feature: Chemical Resistant
    Yes
  • Feature: Washdown Rated
    Yes
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Wireless
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLC60XW340GFAR Description

Banner Engineering WLC60XW340GFAR is a task light designed for industrial heavy-duty applications, featuring LED area lighting with 1-color Cool White (W) LED illumination. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. The dimensions of this product are L340mm x W24.5mm, constructed with a clear glass window and a nickel-plated aluminum housing. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, in a linear strip lighting shape. This model offers a high degree of protection with ratings of IP67, IP68, IP68G, and IP69K, and supports flush mounting. It is designed to operate in ambient air temperatures ranging from -40°C to +70°C. The WLC60XW340GFAR includes 1 x digital input (12Vdc / 24Vdc) for color control and delivers a luminous flux of 1300 lm (lumens).

Related documents WLC60XW340GFAR Specs

WLC60XW340GFAR 173718.pdf

1-year warranty
